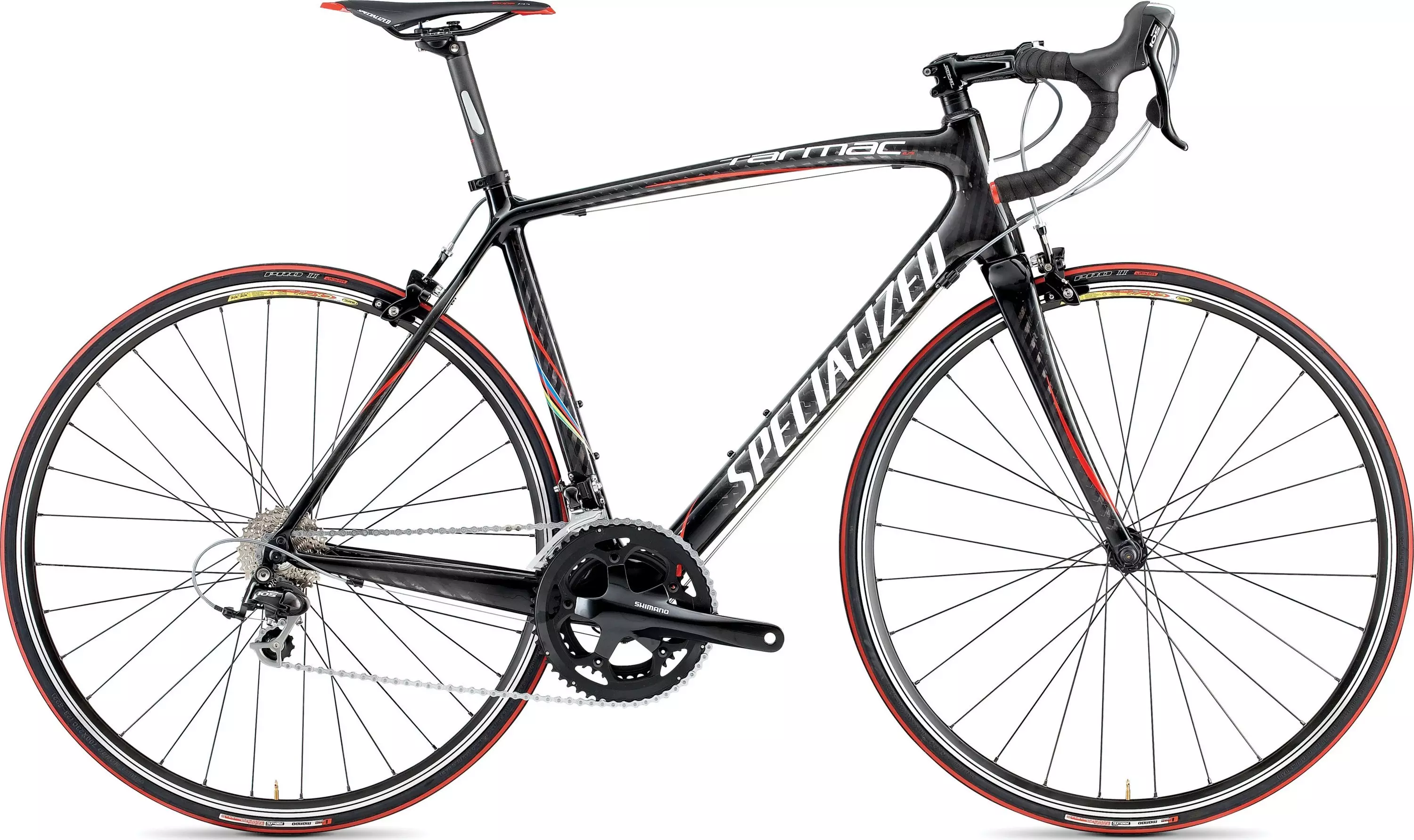

2010 Tarmac Elite
Possédant de nombreuses de victoires à son actif telles Liège-Bastogne-Liège, Tour…
Couleur:
Carbon
Quelle est ma taille ?
Sélectionnez un(e) Taille
Caractéristiques du produit
Possédant de nombreuses de victoires à son actif telles Liège-Bastogne-Liège, Tour des Flandres et plusieurs autres, le Tarmac s'est rapidement imposé comme étant le meilleur vélo haute performance à la manoeuvrabilité irréprochable. Grâce à l'intégration de composantes de pointe, un cadre en carbone FACT extrêmement rigide et la conception Body Geometry, il est sans contredit le plus léger et rigide de tous.
FACT full carbon monocoque fork is stiff and lightweight with a 1.5" lower headset bearing
Lightweight, ergonomic alloy handlebars fit naturally for power and agility in the cockpit
Adjustable 4-position, 3D-forged alloy stem with 31.8mm bar clamp for strength and versatile positioning
New FACT Comp Carbon Pave 27.2mm seatpost with extended Zertz inserts helps minimize road vibrations for a comfortable ride
Body Geometry Toupe saddle features a carbon reinforced shell and hollow Cr-Mo rails for balanced stiffness and compliance on longer rides
Lightweight, efficient and stiff, the Tarmac FACT 8r carbon triple monocoque frame is engineered with one goal--to get to the podium fastest
Spécifications techniques
FRAMESET
FRAME
Specialized Tarmac FACT 8r carbon, triple monocoque construction, compact race design
FORK
Tarmac full FACT carbon monocoque
HEADSET
Aheadset Stainless Race Steel Balls w/ top cap w/ 20mm of spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
REAR HUB
Forged alloy, sealed, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TIRE
Specialized Mondo Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Mondo Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
RIMS
Mavic CXP-22 S, aluminum triple-wall, sleeve joint, CNC machined sidewalls, w/ eyelets
FRONT HUB
Forged alloy, sealed, 28h for J bend round spokes
DRIVETRAIN
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
SHIFT LEVERS
Shimano 105 STI, flight deck compatible
CASSETTE
Shimano 105, 10-speed, 12-27t
CHAIN
KMC X10 CP
CRANKSET
Shimano FCR-550
CHAINRINGS
53 x 39T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Comp Ergo, 6061 alloy
TAPE
Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SADDLE
Body Geometry Toupe w/ hollow Cr-Mo rails
SEATPOST
Specialized Comp, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Arch design, cold forged dual pivot w/ cartridge pads
REAR BRAKE
Arch design, cold forged dual pivot w/ cartridge pads
BRAKE LEVERS
Shimano 105 STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.
Géométries
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 613mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 755mm | 777mm | 800mm | 828mm | 857mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 941mm | 961mm | 973mm | 988mm | 1008mm | 1030mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
Téléchargements manuels
Pour les avertissements de sécurité, veuillez consulter la documentation dans la section "Téléchargements de manuels" de cette page.
