STATUS 2 140
0 Avis
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail…
Nous livrons! Dites simplement quand et comment.
Le STATUS 2 140 a été conçu pour être très simple et prêt à fonctionner, quel que soit le terrain. L'équipe Ride Dynamics a développé la cinématique et ajusté la géographie pour offrir un vélo vif et dynamique qui est à l'aise aussi bien dans les parcs que dans les escaliers.
Chaque construction commence par un châssis en alluminium M5 super solide et des roues en alluminum robustes. Des suspensions robustes, des freins puissants et une transmission spécifique à la DH complètent ces modèles afin de gérer les chutes les plus difficiles, de passer les vitesses en douceur et de fournir un grand nombre d'arrêts.
Avec une géométrie de trail agressive et actualisée et des bases courtes impressionnantes, le STATUS 2 170 est tout simplement amusant sur les terrains les plus difficiles. Il y a beaucoup de sang-froid quand vous en avez besoin sur les gros coups et les gros morceaux, avec la liberté de faire ce que vous voulez quand vous le voulez.
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.
Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

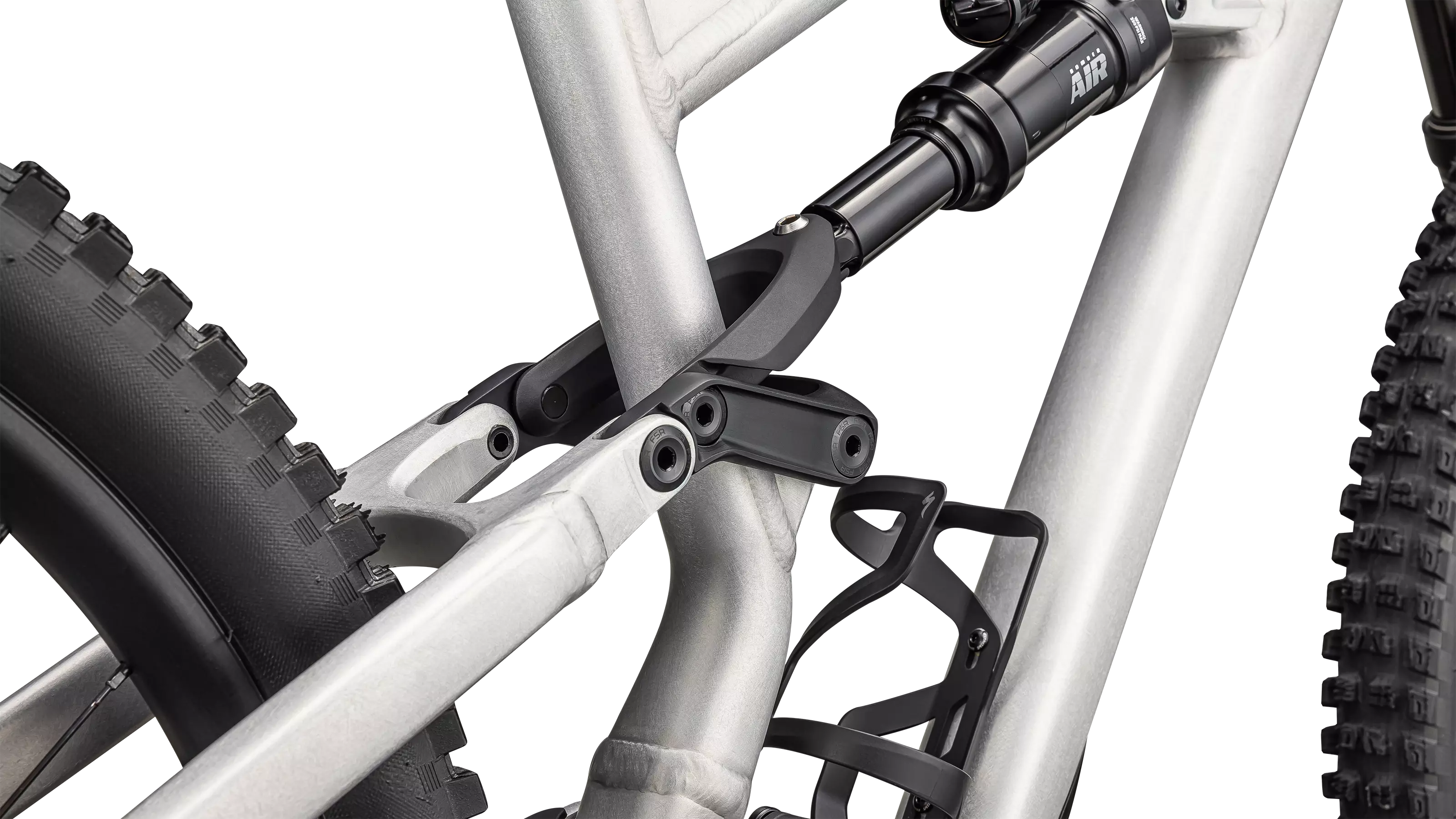

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Seat Binder
Alloy, 38.6mm

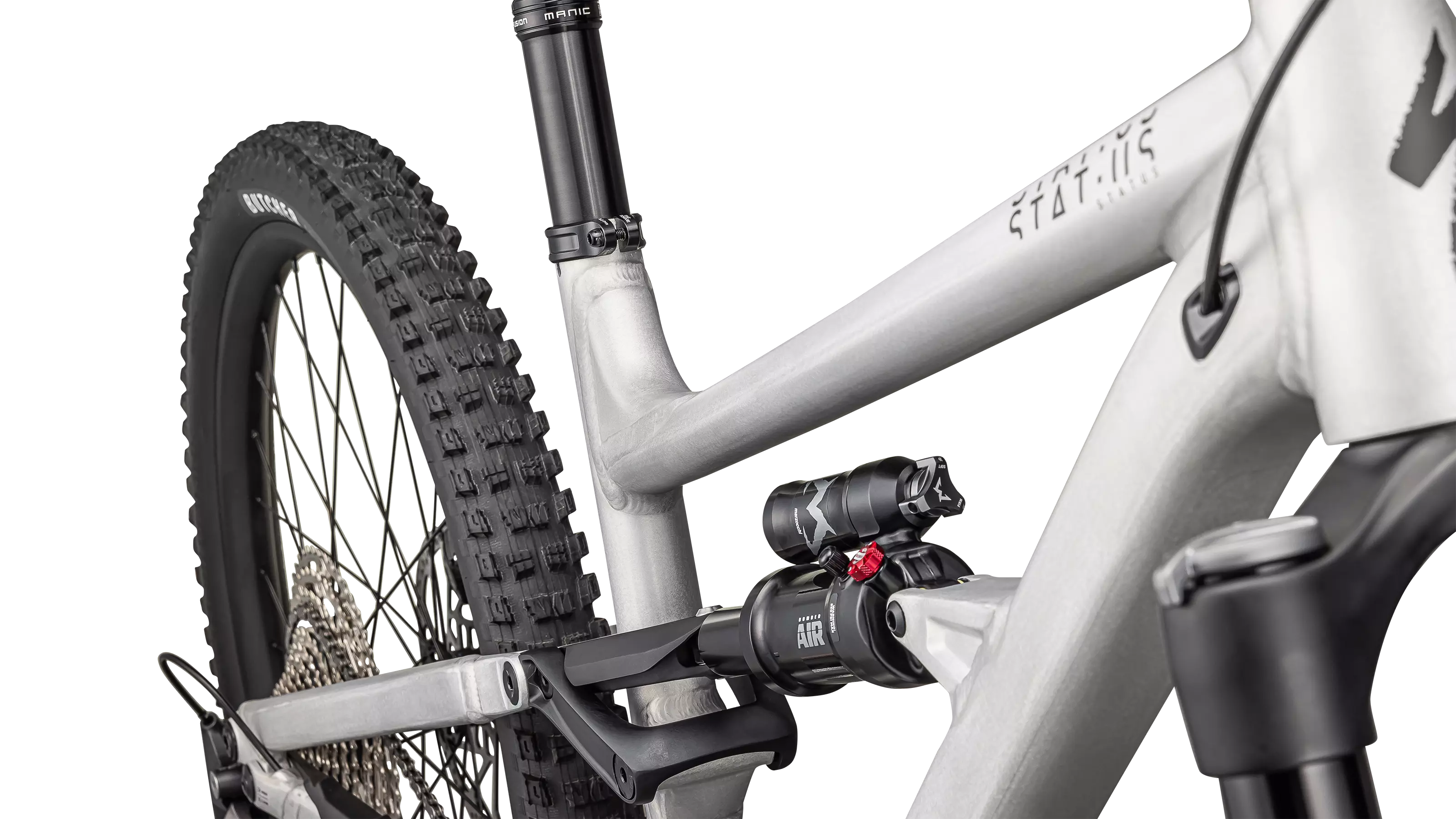

Rear Shock
Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
Fork
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel
Front Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Rear Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Chain
Shimano Deore M6100, 12spd
Crankset
Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Inner Tubes
Standard, Presta valve
Saddle
Bridge Comp, Hollow Cr-mo rails, 143mm
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Knuckleduster
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Product ID
221251
Weight
15.29 kg (33 lb, 11.3 oz)
Weight Size
S3
* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 780mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 170mm | 170mm | 190mm |
| Stack (low) | 605mm | 609mm | 618mm | 627mm | 636mm |
| Stack (high) | 601mm | 605mm | 614mm | 623mm | 632mm |
| Reach (low) | 415mm | 440mm | 465mm | 490mm | 515mm |
| Reach (high) | 421mm | 446mm | 471mm | 496mm | 521mm |
| Headtube Length | 100mm | 105mm | 115mm | 125mm | 135mm |
| Headtube Angle (low) | 64° | 64° | 64° | 64° | 64° |
| Headtube Angle (high) | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height (low) | 338mm | 338mm | 338mm | 338mm | 338mm |
| BB Height (high) | 346mm | 346mm | 346mm | 346mm | 346mm |
| BB Drop (low) | 38mm | 38mm | 38mm | 38mm | 38mm |
| BB Drop (high) | 30mm | 30mm | 30mm | 30mm | 30mm |
| Trail (low) | 134mm | 134mm | 134mm | 134mm | 134mm |
| Trail (high) | 130mm | 130mm | 130mm | 130mm | 130mm |
| Fork Length (full) | 551mm | 551mm | 551mm | 551mm | 551mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 741mm | 768mm | 798mm | 827mm | 857mm |
| Chainstay Length (low) | 427mm | 427mm | 427mm | 432mm | 432mm |
| Chainstay Length (high) | 423mm | 423mm | 423mm | 428mm | 428mm |
| Wheelbase | 1168mm | 1195mm | 1225mm | 1259mm | 1288mm |
| Top-tube Length (horizontal) | 549mm | 590mm | 630mm | 671mm | 711mm |
| Bike Standover Height | 735mm | 735mm | 739mm | 743mm | 747mm |
| Seat Tube Length | 390mm | 400mm | 420mm | 440mm | 465mm |
| Seat Tube Angle (low) | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Angle (high) | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
