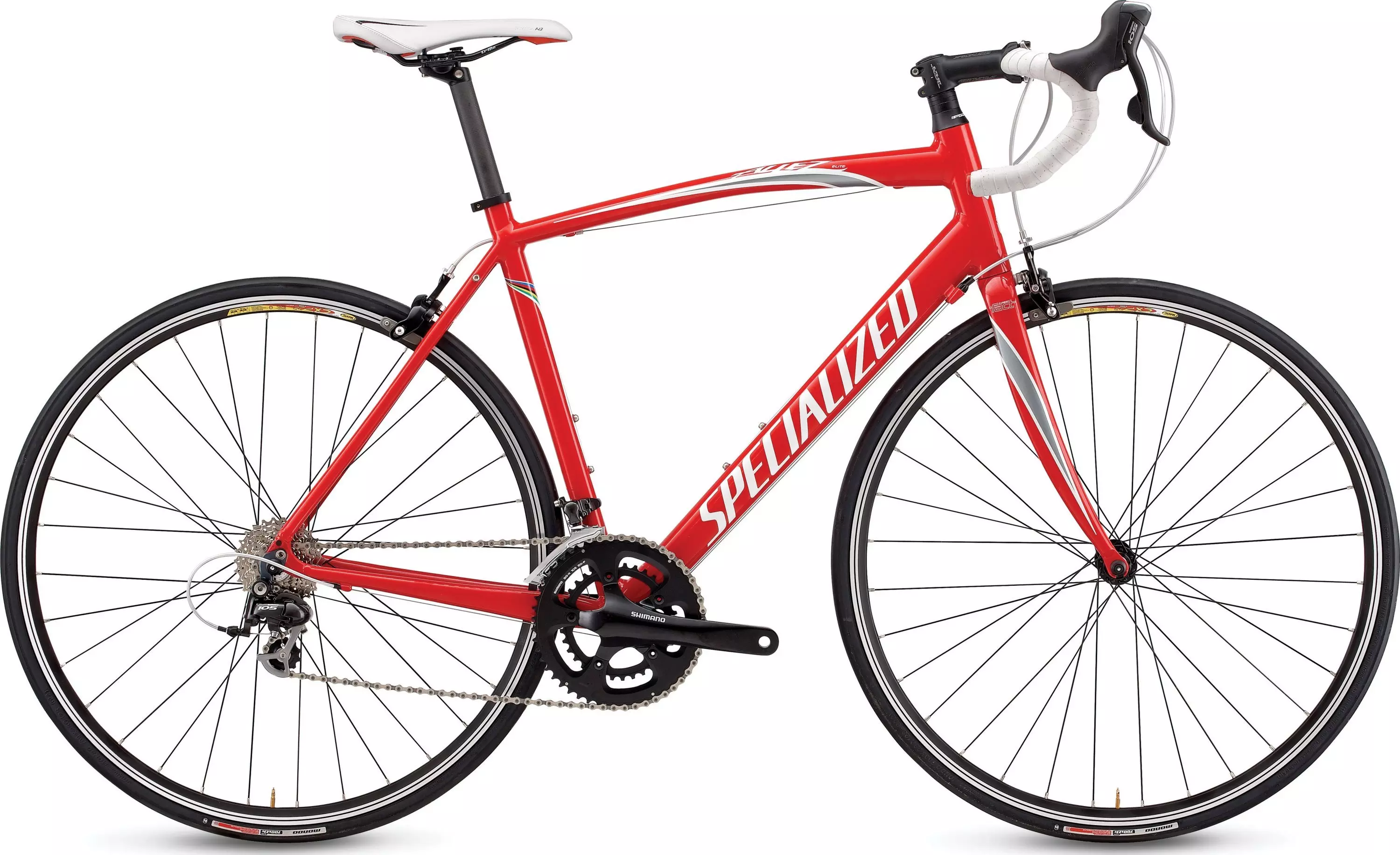

2010 Allez Elite Compact

0 Avis

Empruntant certaines technologies du Tarmac, gagnant des Championnats du Monde, le…

Couleur:

Red

Quelle est ma taille ?

Impériale

Métrique

Entrez vos mensurations et nous calculerons votre taille idéale.

Hauteur:

Pour un résultat plus précis, inclure la longueur de votre tibia.

Sélectionnez un(e) Taille

Caractéristiques du produit

Empruntant certaines technologies du Tarmac, gagnant des Championnats du Monde, le Allez® utilise un tube horizontal courbé, une construction en alliage surdimensionnée et des composantes de performance qui donnent un vélo rapide et efficace qui ressemble en touts points à un vélo de course des plus haut-de-gamme, sans le prix costaud.

Ergonomic short drop aluminum handlebars provide a comfortable riding position
Smooth, precise Shimano 105 10-speed shifters provide lightning-fast gear selection
Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
Smooth-welded A1 Premium Aluminum frame provides superior power transfer and vertical compliance
Ultralight FACT carbon/alloy fork provides laser-accurate steering through the tightest of turns

Spécifications techniques

FRAMESET

FRAME

Specialized Allez A1 Premium aluminum, fully manipulated tubing, smooth weld compact race design, integrated headset

FORK

Allez carbon, carbon fiber legs, aluminum crown and steerer

HEADSET

Cage bearings integrated w/ headset, 20mm of spacers w/ top cap

SEAT BINDER

Alloy, 31.8mm

WHEELS

REAR HUB

Forged aluminum, 32h double sealed ball bearings, cassette, QR

SPOKES

Stainless 14g

FRONT TIRE

Specialized Mondo Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection

REAR TIRE

Specialized Mondo Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection

INNER TUBES

Standard presta valve

RIMS

Mavic CXP-22 N, aluminum triple-wall, sleeve joint, CNC machined sidewalls

FRONT HUB

Forged aluminum, 32h sealed ball bearings, QR

DRIVETRAIN

FRONT DERAILLEUR

Shimano 105

REAR DERAILLEUR

Shimano 105

SHIFT LEVERS

Shimano 105 STI, flight deck compatible

CASSETTE

Shimano 105, 10-speed, 12-27t

CHAIN

KMC DX10 SC

CRANKSET

Shimano FC-R600

CHAINRINGS

50 x 34T

BOTTOM BRACKET

With Crankset

COCKPIT

STEM

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

HANDLEBARS

Specialized Comp Ergo, 6061 alloy

TAPE

Specialized S-Wrap, cork ribbon w/ gel

SADDLE

Body Geometry Rival road, w/ Cr-Mo rails

SEATPOST

Carbon wrapped, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

Tektro cold-forged alloy, dual pivot brake w/ cartridge pads

REAR BRAKE

Tektro cold-forged alloy, dual pivot brake w/ cartridge pads

BRAKE LEVERS

Shimano 105 STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage/black body, w/ black toe clips and strap

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	110mm	130mm	155mm	180mm	205mm	230mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	71.75°	72.5°	72.5°	73°	73°	73.5°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	580mm	580mm	587mm	595mm	610mm	617mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	722mm	755mm	777mm	800mm	822mm	853mm
Seat-Tube Length, B-B Center to Top	430mm	480mm	500mm	520mm	540mm	580mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Trail	65mm	60mm	60mm	59mm	59mm	56mm
Wheelbase	974mm	975mm	982mm	991mm	1008mm	1018mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	120mm
