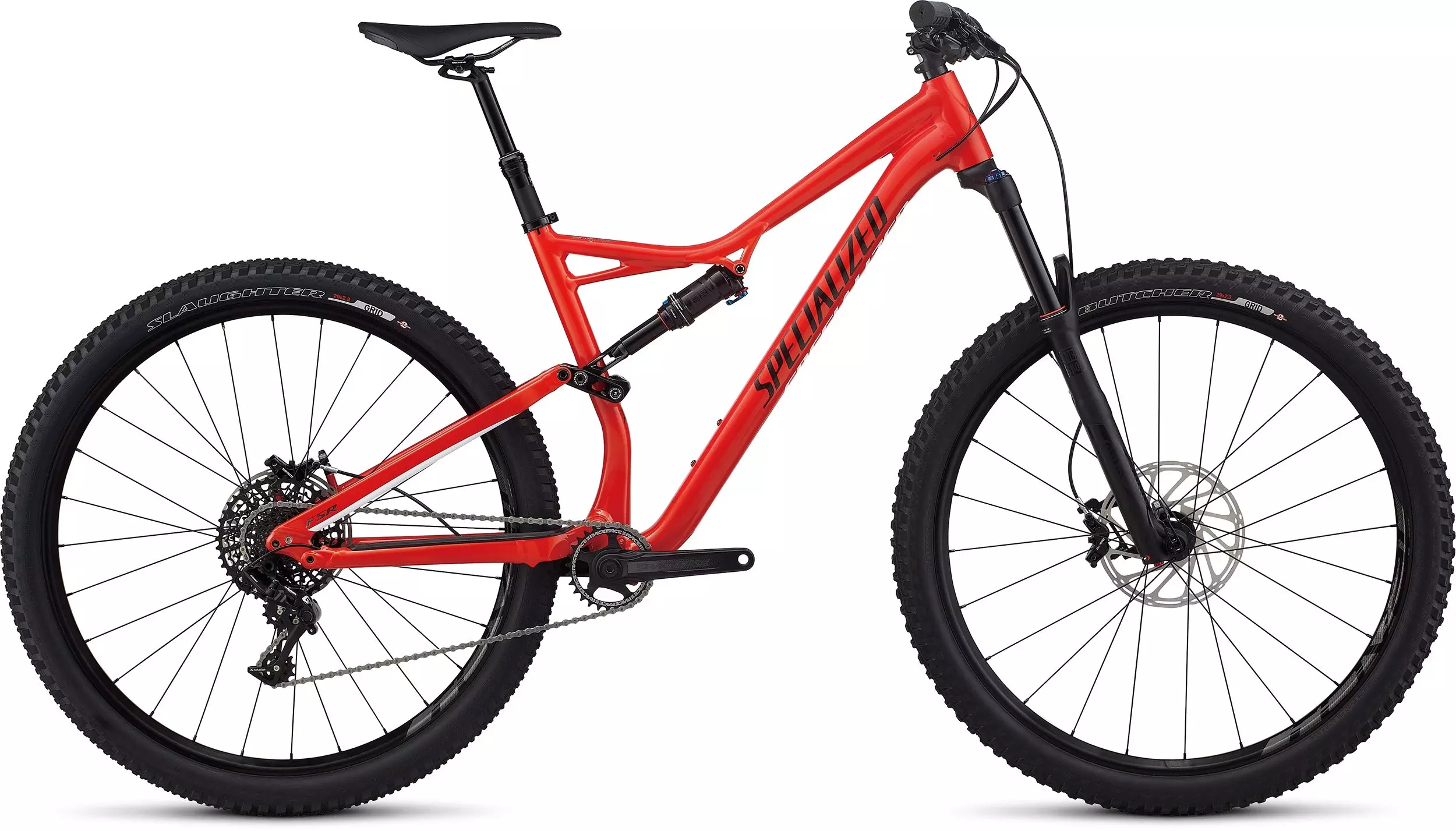

2017 Stumpjumper FSR Comp 29

0 Omdömen

Don't get us wrong—carbon fiber is awesome. But when it comes to maintaining piece…

Färg:

NORDIC RED/BLACK/CLEAN

Vad är min storlek?

Imperial

Metrisk

Skriv in din längd så beräknar vi din storlek

Längd:

För mer precist resultat, inkludera din smalbenslängd

Välj en Storlek

Produktinformation

Don't get us wrong—carbon fiber is awesome. But when it comes to maintaining piece of mind while you're out getting rowdy on the trail, it's pretty damn hard to beat the confidence inspiring construction of an alloy frame like the Stumpjumper FSR Comp 29. It features an M5 alloy construction that's lightweight, durable, and plenty stiff and compliant, while a durable selection of components from SRAM that have been hand-selected to ensure that you get the most performance over rugged terrain possible. And when you factor in our proprietary Rx Trail Tune at the shock, plus an aggressive, trail-eating geometry that features absurdly short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, you get a trail bike that you can be confident in, season after season.

M5 alloy Trail Chassis with Stumpjumper FSR rear end blends durability, stiffness, and light weight, while 135mm of travel Trail Geometry provide more than capable handling.
RockShox Revelation RL 29 fork features a 15mm Maxle Lite thru-axle and 150mm of plush travel to take on hits and bumpy terrain with more control and confidence.
Roval Traverse 29 wheels provide a strong, stable platform that's built to deliver heaps of responsiveness, speed, and supreme handling.

Tekniska specifikationer

FRAMESET

FRAME

M5 alloy, Trail Geometry, PF30 BB, internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel

SEAT BINDER

Alloy, 34.9mm

SUSPENSION

REAR SHOCK

RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm

FORK

RockShox Revelation RL 29/27.5+, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 51mm offset, 150mm travel

WHEELS

RIMS

Roval Traverse 29, hookless alloy, 29mm inner width, 24/28h, tubeless ready

FRONT HUB

Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h

REAR HUB

Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

SPOKES

DT Swiss Industry, stainless, 3x, 2.0""

FRONT TIRE

Butcher, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Slaughter, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

INNER TUBES

29x1.75/2.4"", 60mm Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, long cage, 11-speed

SHIFT LEVERS

SRAM GX, 11-speed, trigger

CASSETTE

SRAM XG-1150, 11-speed, 10-42t

CHAIN

SRAM PC-1110, 11-speed w/PowerLink

CRANKSET

RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 28T

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel

BRAKES

FRONT BRAKE

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor

REAR BRAKE

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180/160mm rotor

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

*Vikter baserade på produktion av målade ramar som avbildas. Faktiska vikter kommer att variera beroende på färgsättning, ramstorlek och komponentvariation. Specifikationer kan ändras utan förvarning.

Geometri

	S	M	L	XL	XXL
Crank Length	170MM	175MM	175MM	175MM	175MM
Handlebar Width	750mm	750mm	750mm	750mm	750mm
Stem Length	45mm	60mm	60mm	60mm	60mm
Saddle Width	143mm	143mm	143mm	143mm	143mm
Seatpost Length	390mm	430mm	430mm	430mm	430mm
Seat-Tube Angle	75°	75°	75°	74°	74°
Head-Tube Length	95mm	95mm	125mm	145mm	170mm
Head-Tube Angle	67.5°	67.5°	67.5°	67.5°	67.5°
Chain-Stay Length	437mm	437mm	437mm	437mm	437mm
Front-Center	680mm	708mm	738mm	771mm	797mm
B-B Drop	36mm	36mm	36mm	36mm	36mm
Bike Stand-Over Height	750mm	757mm	766mm	776mm	778mm
Fork Length (full)	551mm	551mm	551mm	551mm	551mm
Top-Tube Length (horizontal)	551mm	582mm	611mm	647mm	674mm
Seat-Tube Length	396mm	430mm	468mm	523mm	564mm
B-B Height (29x2.3")	338mm	338mm	338mm	338mm	338mm
B-B Height (650x3.0")	331mm	331mm	331mm	331mm	331mm
B-B Height (650x2.8")	325mm	325mm	325mm	325mm	325mm
Stack	617mm	617mm	645mm	663mm	686mm
Reach	389mm	417mm	435mm	461mm	477mm
Trail	104mm	104mm	104mm	104mm	104mm
Fork Rake/Offset	46mm	46mm	46mm	46mm	46mm
Wheelbase	1115mm	1143mm	1172mm	1206mm	1232mm
