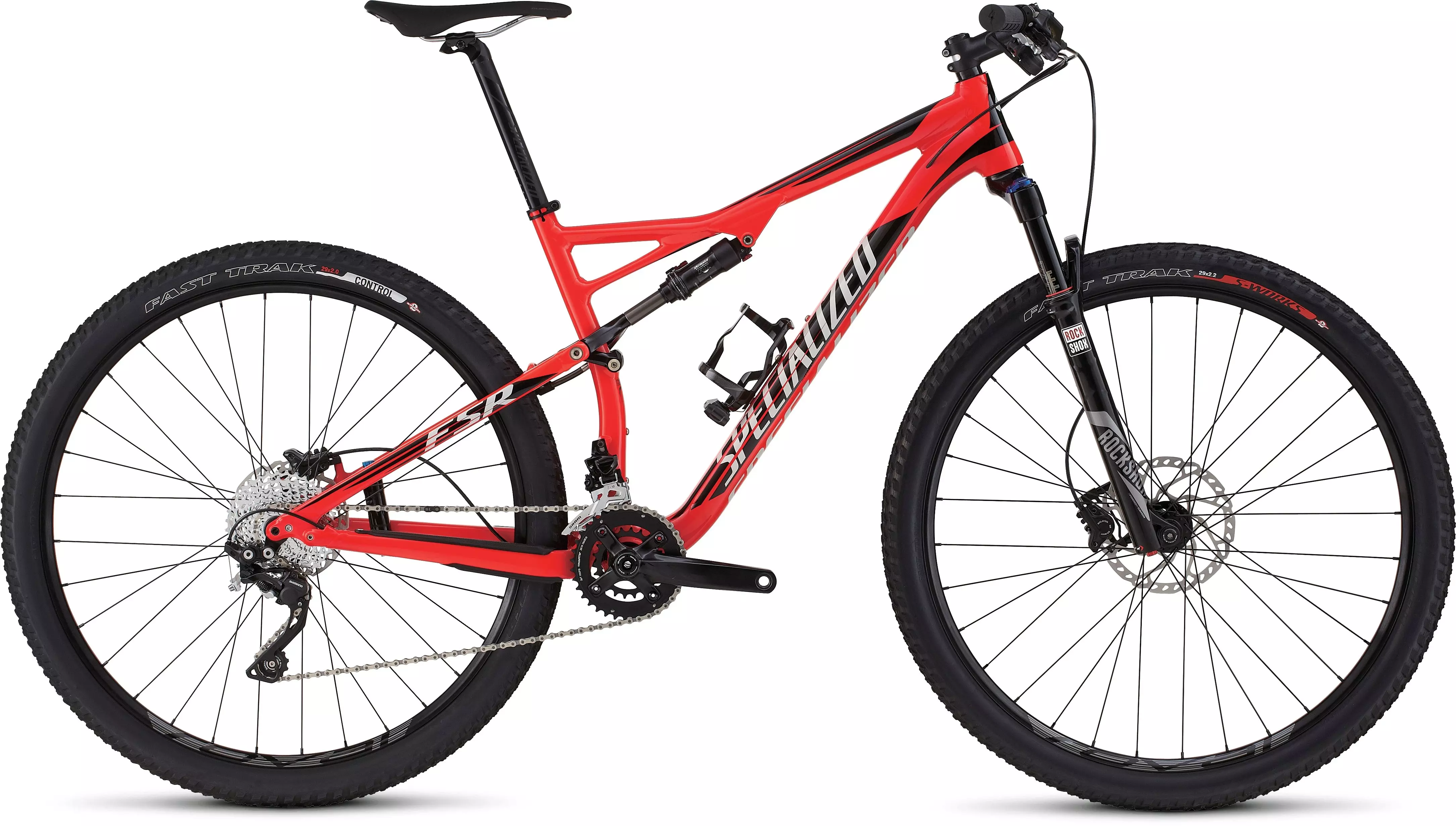

2016 Epic Comp 29
What makes a cross country mountain bike fast? Is it carbon and digital everything,…
Produktinformation
What makes a cross country mountain bike fast? Is it carbon and digital everything, or is it the perfect geometry, suspension, and attention to detail? Given the choice, we'll take the latter. That's why we constructed the Epic Comp from our lightweight, stiff, and reliable M5 aluminum, while the geo follows our XC 29 Geometry for explosive power, incredible speeds, and nimble handling. For the suspension, we included our Brain technology at the rear shock. This intelligent system is able to interprets the difference between rider and trail input, so it stays firm under effort and plush over bumps. And for the build, you'll find a mix of Shimano & SRAM 2x10 components that deliver a wide range of gears, dependable performance, and the assurance of durability for season after season of use.
Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry and internal cable routing, you get a bike that compromises nothing in delivering explosive speed and hassle-free maintenance.
A RockShox Reba RL 29 fork offers up 100mm of smooth travel, while an easily accessible compression and rebound adjusts permit you to customize the feel according to the terrain at hand.
Shimano Deore M506 brake calipers and levers provide no-fuss dependability and feel in the brake department, ensuring that you have reliable hydraulic braking power over rough terrain
Roval 29 alloy wheels feature a 21mm internal width, making them plenty stiff and lightweight for XC racing.
Custom FOX/ Specialized remote Mini Brain rear shock features AUTOSAG for easy set up and 100mm of fine-tunable suspension. To maximize efficiency, the proprietary design allows the shock to differentiate rider input and trail bumps, so the suspension feels firm under effort and plush over rough terrain.
Tekniska specifikationer
FRAMESET
FRAME
M5 alloy, XC 29 Geometry, PF30 BB, 142mm dropouts, internal cable routing, FD mount, PM 160 rear brake
HEADSET
1-1/8"" upper, 1-1/2"" lower, Campy style, integrated sealed cartridge bearings
SEAT BINDER
Alloy, 31.6mm
WHEELS
RIMS
Roval 29, alloy, 21mm inner width, 32h
FRONT HUB
Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 32h
SPOKES
DT Swiss Industry, stainless
FRONT TIRE
S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE
Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
INNER TUBES
Standard, Presta valve
SUSPENSION
REAR SHOCK
FOX/Specialized remote Mini Brain, AUTOSAG, Brain Fade adjust I-Valve, 205x53mm
FORK
RockShox Reba RL 29, Solo Air spring, 100mm travel, compression adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle
DRIVETRAIN
FRONT DERAILLEUR
Custom SRAM X0, 2x10, high direct mount
REAR DERAILLEUR
Shimano XT Shadow Plus, SGS cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36t
CHAIN
SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed double, PF30, 36/22T, 104/64mm BCD spider
BOTTOM BRACKET
SRAM, PF30, OS press-in bearings, sealed cartridge
COCKPIT
SEATPOST
Specialized, alloy, single bolt, 27.2mm
STEM
Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
HANDLEBARS
Specialized, butted 6000 alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
ACCESSORIES
PEDALS
Nylon, CEN std., w/ toe clips
BRAKES
FRONT BRAKE
Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
REAR BRAKE
Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
BRAKE LEVERS
Shimano BR-M615, hydraulic
* Vikter baserade på produktion av målade ramar som avbildas. Faktiska vikter kommer att variera beroende på färgsättning, ramstorlek och komponentvariation. Specifikationer kan ändras utan förvarning.
