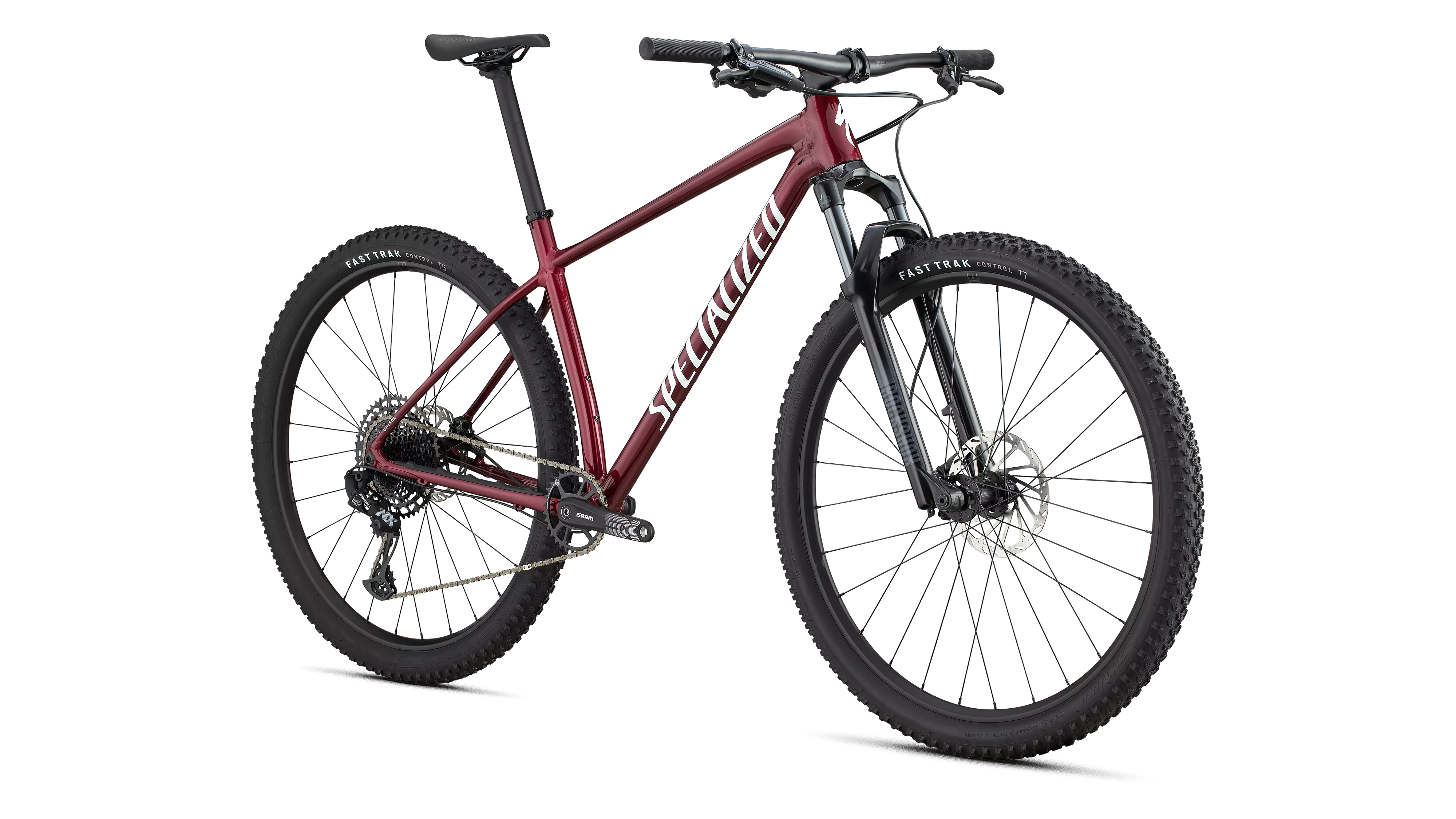

Chisel Hardtail
20 000,00 kr
0 Omdömen
The Chisel has been purpose-built to tackle modern cross-country trails and race…
Färg:
Gloss Maroon / White
Vad är min storlek?
Välj en Storlek
Vi levererar! Säg bara när och hur.
Produktinformation
The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.
This Chisel comes with SRAM's tried and true SX Eagle 1x12 speed drivetrain and Level T hydraulic disc brakes, a RockShox Judy Silver fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.
We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Tekniska specifikationer
Ramset
Ram
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Sadelfäste
Specialized Alloy, 34.9mm
Dämpning
Framgaffel
RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Bromsar
Frambroms
SRAM Level T hydraulic disc, 2-Piston Caliper
Bakbroms
SRAM Level T hydraulic disc, 2-Piston Caliper
Drivlina
Växelreglage
SRAM SX Eagle, trigger, 12-speed
Bakväxel
SRAM NX Eagle, 12-speed
Kassett
SRAM PG-1210 Eagle, 11-50t
Kedja
SRAM, SX Eagle, 12-speed
Vevparti
SRAM SX Eagle, Powerspline
Klingor
32t
Vevlager
SRAM Powerspline
Hjul och däck
Fälgar
Specialized 29, 27mm inner width, 28h, tubeless ready
Framnav
Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Baknav
Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h
Ekrar
Stainless, 14g
Framdäck
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
Bakdäck
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Innerslangar
Standard 40mm PV 29x1.75-2.4
Cockpit
Styrstam
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Styre
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Handtag
Specialized Trail Grips
Sadel
Body Geometry Power Sport, steel rails
Sadelstolpe
Alloy, 2-bolt clamp, 30.9mm
Produktinformation
Produktnummer
221771
*Vikter baserade på produktion av målade ramar som avbildas. Faktiska vikter kommer att variera beroende på färgsättning, ramstorlek och komponentvariation. Specifikationer kan ändras utan förvarning.
Geometri
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 175mm | 175mm |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 60mm | 70mm | 70mm | 70mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
| Stack | 591mm | 605mm | 605mm | 619mm | 633mm |
| Reach | 385mm | 405mm | 430mm | 455mm | 480mm |
| Head Tube Length | 95mm | 95mm | 95mm | 110mm | 125mm |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| BB Height | 304mm | 309mm | 309mm | 309mm | 309mm |
| BB Drop | 68mm | 63mm | 63mm | 63mm | 63mm |
| Trail | 103mm | 103mm | 103mm | 103mm | 103mm |
| Fork Length, Full | 486mm | 506mm | 506mm | 506mm | 506mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 647mm | 674mm | 699mm | 730mm | 760mm |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1070mm | 1099mm | 1124mm | 1154mm | 1185mm |
| Top Tube Length, Horizontal | 555mm | 578mm | 603mm | 632mm | 661mm |
| Bike Standover Height | 732mm | 762mm | 792mm | 816mm | 847mm |
| Seat Tube Length | 367mm | 400mm | 430mm | 470mm | 520mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
Ladda ner användarmanualer
Säkerhetsvarningar finns tillgängliga i dokumentationen i avsnittet ”Ladda ner användarmanualer” på den här sidan.
