If we had to sum up the Turbo Levo Hardtail Comp in three words, they'd be efficiency,…
Color:
Cast Battleship / Mojave
Ciclistas de todo el mundo han votado continuamente a Specialized como la marca nº1 en E-MTBs. Con nuestra inigualable potencia, refinado sistema de transmisión y perfecta integración, nuestras ya legendarias bicicletas de montaña son realmente algo fuera de este mundo.
If we had to sum up the Turbo Levo Hardtail Comp in three words, they'd be efficiency, power, and fun. That's because this bike takes the crazy-efficiency that 29ers are known for and combines it with modern trail bike geometry and exclusive tech to give you the power to ride more trails...and have more fun.
THE RIDE COMES FIRST
The Turbo Levo Hardtail has all of the speed and nimble handling that our trail bikes are known for—an easy fit, ultra-short chainstays for nimble handling, and a low bottom bracket that makes the bike feel glued to the trail. In other words, it rides like an awesome mountain bike first and foremost—what would be the point, otherwise?
SMOOTH AND NATURAL POWER
The Turbo Levo Hardtail’s 1.3 motor smoothly and quietly adds power to your pedals and makes climbing the steepest of trails nearly effortless. Plus, you can adjust that power output, to conserve energy and get the most miles from every charge. Our custom motors also feature instant pedal engagement, so you get immediate power the moment you need it and consistent torque throughout your entire cadence range. • M5 premium aluminum frame is light yet strong, nimble yet confident.
• Smooth, natural power assist courtesy of our custom motors and software.
• RockShox Recon RL 29er fork, Shimano hydraulic disc brakes and Deore drivetrain.
We’ve crafted the Turbo Levo Hardtails’s hardtail frame from M5 premium aluminum and given it a modern trail geometry to create a ride that combines confident handling, maximum efficiency, and tons of speed. The frame also features an integrated battery mount at the down tube for fast and easy battery removal, plus a forged and braced motor mount at bottom bracket. This keeps the bike sleek and perfectly balances its weight distribution.

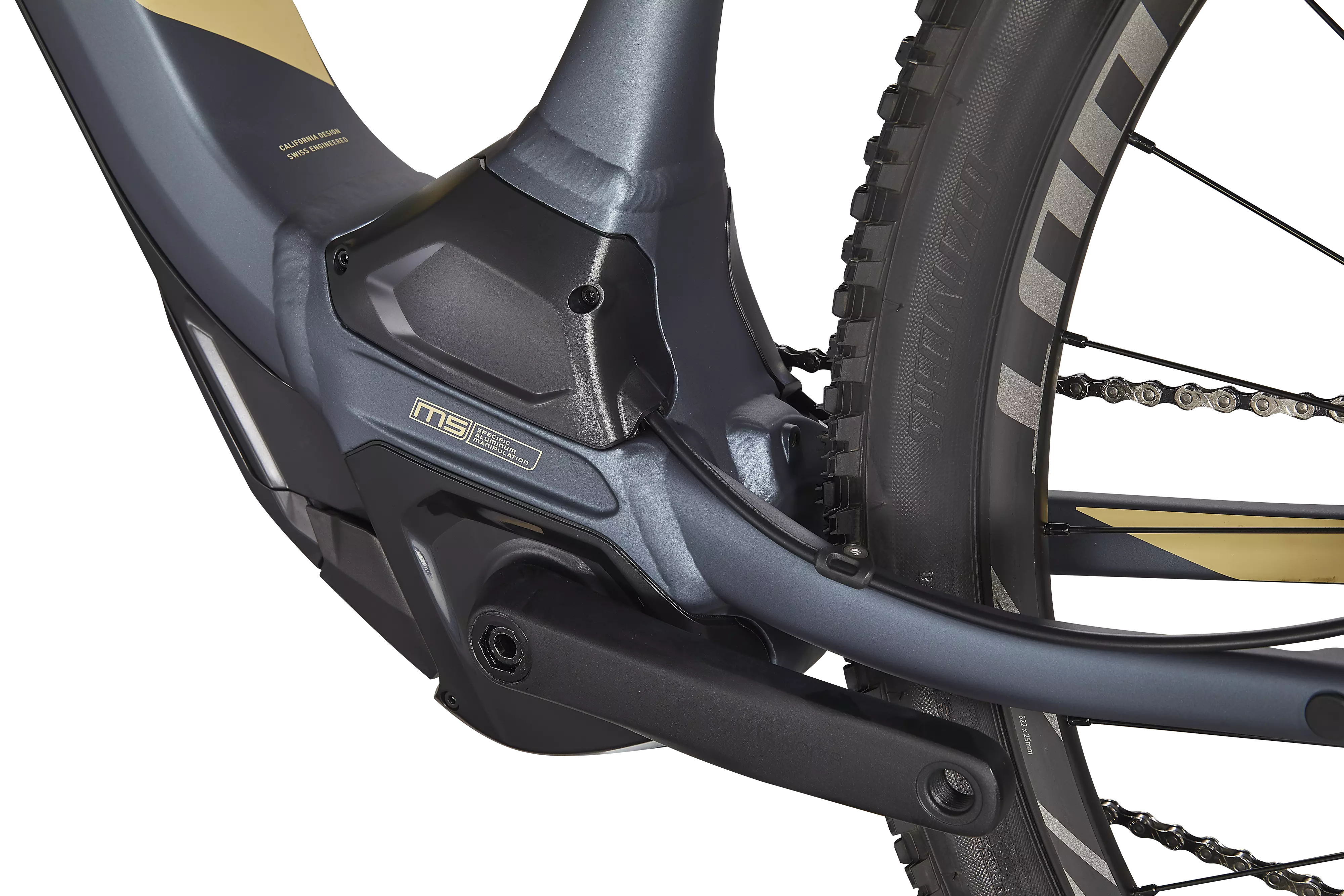

The Specialized 1.3 motor is custom-built for the Levo Hardtail and gives you the power to explore new trails. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.

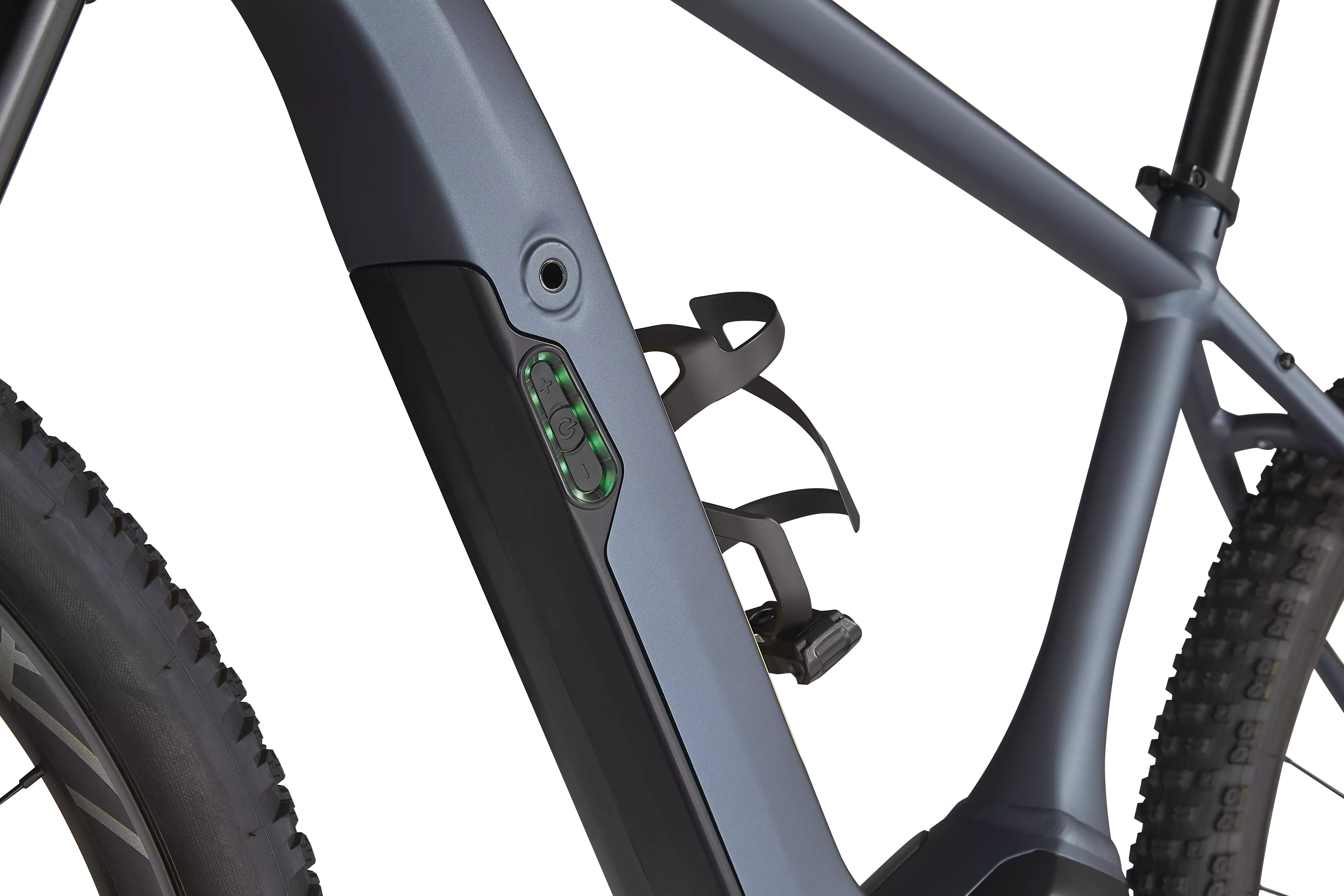

The Specialized M1-500 battery features an integrated Trail Display and ANT+/Bluetooth® module with Mission Control App connectivity. It houses 500Wh of distance-devouring juice, and is neatly integrated into the down tube.
Max Top Speed: 15 mph / 25 km/h
Motor
Specialized 1.3, custom Rx Trail-tuned motor, 250W nominal
Battery
Specialized M1-500, integrated Trail Display, ANT+/Bluetooth® module, 500Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Wiring Harness
Custom Specialized wiring harness
Pedals
Specialized Body Geometry Fitness, platform, plastic
Front Brake
Shimano BR-MT200, hydraulic disc, 180mm
Rear Brake
Shimano BR-MT200, hydraulic disc, 180mm
Front Wheel
Hand-built wheel assembly
Rear Wheel
Hand-built wheel assembly
Rims
Stout XC 29, 25mm internal width, disc-specific
Front Hub
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Ground Control, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Rear Tire
Ground Control, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Inner Tubes
Standard, Presta valve
Saddle
Body Geometry Myth 155 XS, Body Geometry Henge 143 S/M/L/XL, steel rails
SeatPost
Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Stem
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Grips
Specialized Body Geometry XC, clamp-on
Handlebars
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm
Shift Levers
Shimano Deore, 10-speed
Rear Derailleur
Shimano Deore, Shadow Plus, GS cage, 10-speed
Cassette
Shimano Deore, 10spd, 11-42t
Chain
KMC e10S, 10-speed w/ Missing Link™
Crankset
Custom alloy forged crankarms
Frame
Specialized M5 Aluminum, 29 Trail HT Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing
Fork
RockShox Recon RL 29, Solo Air, 51mm offset, 15x110mm thru-axle, XS/S: 100mm of travel, M/L/XL: 120mm of travel
Seat Binder
Alloy, bolt-type, 34.9mm
SWAT
Specialized Z-Cage w/EMT Cage Mount MTB Tool
Spokes
Stainless, 14g
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Largo de biela | 165mm | 165mm | 165mm | 165mm | 165mm |
| Ancho de manubrio | 720mm | 750mm | 750mm | 750mm | 750mm |
| Largo de avance | 45mm | 45mm | 60mm | 60mm | 60mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
| Largo de poste de asiento | 350mm | 350mm | 350mm | 400mm | 400mm |
| Largo de tubo de asiento, Centro a parte superior | 390mm | 394mm | 434mm | 470mm | 505mm |
| Largo de tubo superior, Horizontal | 568mm | 574mm | 608mm | 633mm | 655mm |
| BB Drop | 55mm | 55mm | 55mm | 55mm | 55mm |
| BB Height | 308mm | 308mm | 308mm | 308mm | 308mm |
| Largo de vaina inferior | 450mm | 450mm | 450mm | 450mm | 450mm |
| Ángulo de tubo de asiento, Efectivo | 74° | 74° | 73° | 73° | 73° |
| Ángulo de tubo de dirección | 67° | 67° | 67° | 67° | 67° |
| Distancia entre ejes | 1121mm | 1140mm | 1164mm | 1190mm | 1213mm |
| Altura de standover | 688mm | 756mm | 786mm | 812mm | 838mm |
| Largo de tubo de dirección | 100mm | 110mm | 100mm | 115mm | 130mm |
| Stack | 598mm | 607mm | 616mm | 630mm | 644mm |
| Alcance | 385mm | 400mm | 420mm | 440mm | 458mm |
| Fork Length, Full | 510mm | 510mm | 530mm | 530mm | 530mm |
Para las advertencias de seguridad, consulte la documentación en la sección Descargas de Manuales de esta página.
