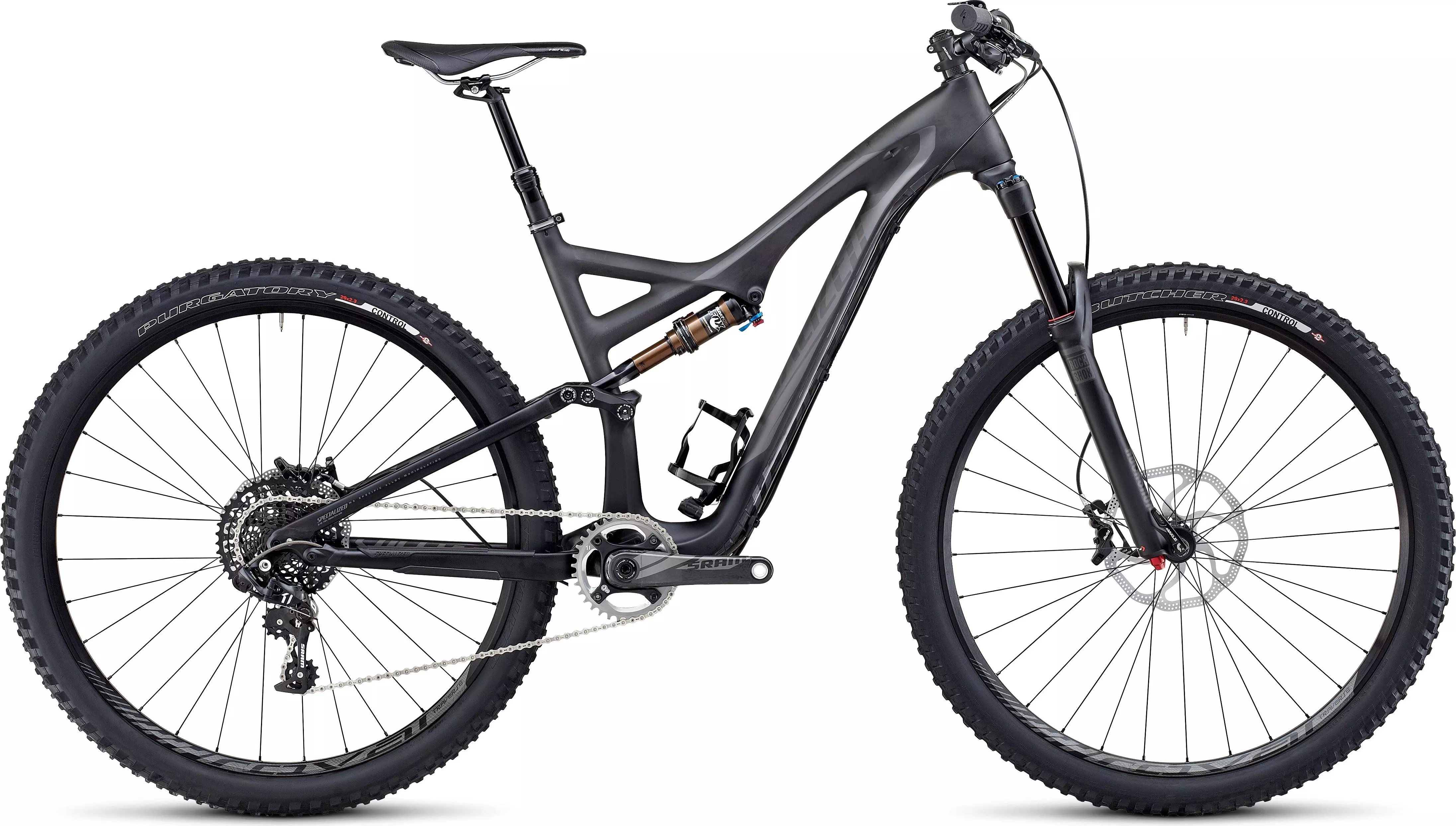

2014 Stumpjumper FSR Expert Carbon EVO 29
0 Anmeldelser
Aggressive trail riding meets 29" wheels in the form of the Stumpjumper FSR Expert…
Produktinformation
Aggressive trail riding meets 29" wheels in the form of the Stumpjumper FSR Expert Carbon EVO 29. The 135mm-travel Expert EVO 29 features a Fox Float CTD Factory shock with AUTOSAG and Kashima coating, RockShox Pike RC 29 fork, and Roval Traverse 29 142+ wheelset mounted to 2Bliss Ready Specialized Butcher and Purgatory Control 29 2.3" tires.
All-new Avid Elixir 7 Trail hydraulic disc brakes with four-piston calipers deliver powerful stopping performance with a lightweight trail-friendly package
All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance
FOX Float CTD Factory shock with Boost Valve, Kashima coating and AUTOSAG features 3 compression settings: Climb, Trail and Descend with Trail and rebound adjust
Hot, new asymmetrical graphic on the FACT 9m carbon FSR frame with slacker, lower EVO 29 geometry, 135mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the meanest trail 29er out there
SRAM's new X01 11-speed drivetrain featuring a custom S-2200 carbon crankset with PF30 spindle, single chainring setup works with SRAM X0 10-42 cassette for premium shifting and a huge gear range
Lightweight Roval Traverse 29 alloy All-Mountain wheelset, with DT Swiss internals and spokes, 15mm thru-axle, and 142mm rear hub spacing for durable, lightweight, and tubeless-ready performance
750mm wide mini-rise alloy handlebars paired with new RockShox Pike RC 29 delivers optimal stiffness and control for precise handling
2Bliss Ready Specialized Butcher and Purgatory Control 29 2.3" tires for premium control on challenging trail conditions
Tekniske specifikationer
FRAMESET
FRAME
FACT 9m carbon front triangle, 29"" EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
SWAT
Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
7050 hard anodized alloy, single bolt, 34.9mm
WHEELS
RIMS
Roval Traverse 29, alloy disc, 24mm internal width, 32h
FRONT HUB
Roval Traverse 29, 15mm thru-axle end caps, 32h
REAR HUB
Roval Traverse 29 142+, XX1 driver body, 12mm thru-axle, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
Specialized Butcher Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
REAR TIRE
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60 TPI
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj., 195x46mm
FORK
RockShox Pike RC 29, Solo Air spring, tapered alloy steerer, comp, lockout, and reb adj., 15mm thru-axle, 140mm travel
DRIVETRAIN
REAR DERAILLEUR
SRAM X01, 11-speed, mid cage
SHIFT LEVERS
SRAM X01, 11-speed, trigger
CASSETTE
SRAM X01, 11-speed, 10-42
CHAIN
SRAM, 11-speed, hollow plates/pins, PowerLink
CRANKSET
Custom SRAM carbon S-2200, custom XX1 style ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
STEM
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, 7050 butted alloy, 750mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, S/M: 180mm, Others: 200mm rotor
REAR BRAKE
Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, S/M: 160mm, Others: 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 7 Trail, hydraulic disc, tool-less reach adj.
* Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.
Geometri
| S | M | L | XL | |
|---|---|---|---|---|
| Sadelrørslængde, Center til top | 396mm | 430mm | 468mm | 523mm |
| Top Tube Length, Actual | 576mm | 603mm | 632mm | 660mm |
| Bottom Bracket Drop | 37mm | 37mm | 37mm | 37mm |
| Bottom Bracket Height | 335mm | 335mm | 335mm | 335mm |
| Sadelrørsvinkel, aktuel | 68° | 68.4° | 68.8° | 69.3° |
| Sadelrørsvinkel, effektiv | 73.5° | 73.5° | 73.5° | 73.5° |
| Wheel Base | 1125mm | 1155mm | 1183mm | 1211mm |
| Overrørshøjde | 750mm | 741mm | 750mm | 764mm |
| Stellets stakhøjde | 610mm | 619mm | 643mm | 661mm |
| Stellængde (reach) | 389mm | 416mm | 435mm | 456mm |
| Kronrørslængde | 90mm | 100mm | 125mm | 145mm |
| Kronrørsvinkel | 68° | 68° | 68° | 68° |
| Kædestagslængde | 455mm | 455mm | 455mm | 455mm |
| Faktisk overrørslængde, horisontal | 567mm | 596mm | 622mm | 648mm |
| Pedalarmslængde | 170mm | 175mm | 175mm | 175mm |
| Styrbredde | 750mm | 750mm | 750mm | 750mm |
| Frempindslængde | 60mm | 60mm | 75mm | 90mm |
| Sadelpinds længde | 380mm | 425mm | 425mm | 425mm |
