2010 Live 2
0 Anmeldelser
For riders who want an option for every whim, the LIVE promises classic urban style…
Farve:
Luna Grey
Hvilken er min størrelse?
Vælg en Størrelse
Produktinformation

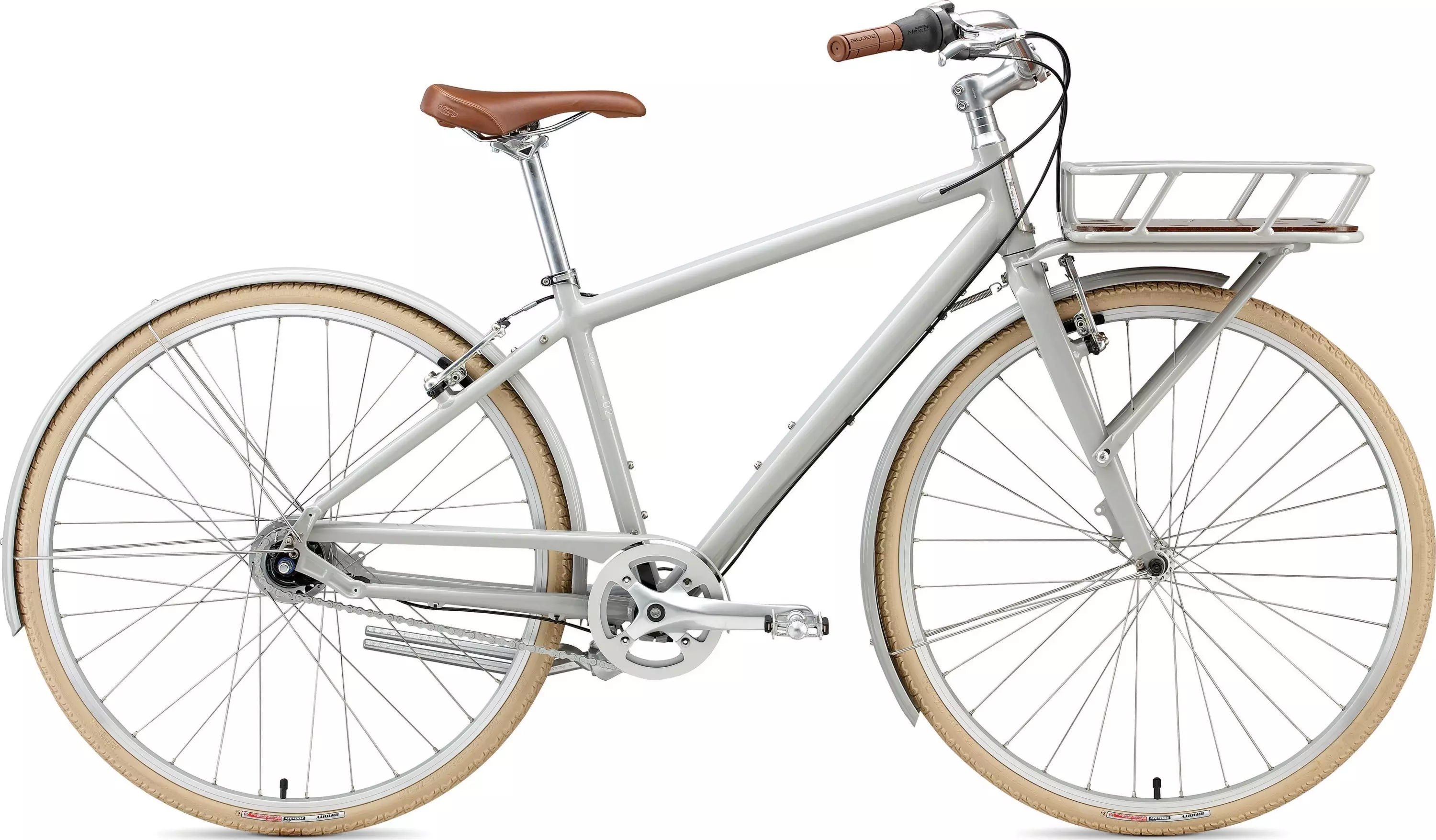

For riders who want an option for every whim, the LIVE promises classic urban style + functionality. Carry groceries, a laptop, art supplies or anything that suits your mood with this light-duty utility bike.
Pletscher double leg kickstand for easy loading
Aluminum fork with forged crown and integrated rack system
Slim and effective color-matched alloy chainguard keeps your duds clean
Globe classic aluminum fenders are color matched with custom chevron detail
Shimano Nexus 8-speed internal drivetrain is quiet, simple and extremely durable
Body Geometry Fitness saddle with front and rear bumpers for comfort where it counts
Globe A1 Premium Aluminum frame with custom tubing and butting profiles is strong and lightweight
Integrated front porteur basket with wood bottom lets you carry all your goods comfortably - 25kg maximum
Tekniske specifikationer
FRAMESET
FRAME
Globe A1 Premium Aluminum cargo design, fully manipulated custom tubing w/ fender and rack braze-ons, integrated kickstand mount
FORK
Globe Live straight-blade aluminum fork w/ custom forged crown and porteur basket/rack system
HEADSET
1-1/8"" threadless, integrated, semi-cartridge campy style bearings
SEAT BINDER
Globe Chevron forged alloy, chrome plated
WHEELS
FRONT HUB
Forged alloy, double sealed, ground race, QR, 36h
REAR HUB
Shimano internal 8-speed, 36h
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Infinity 700x32c, 60TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Infinity 700x32c, 60TPI, w/ Flak Jacket protection
INNER TUBES
Schraeder valve
RIMS
Globe 700c, double wall, 36h w/CNC side wall
DRIVETRAIN
SHIFT LEVERS
8-speed internal twist shifter
CRANKSET
Sugino EX-1 aluminum, w/ alloy chainguard
CHAINRINGS
38t w/ chainguard
CASSETTE
Shimano Nexus single cog
BOTTOM BRACKET
Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN
KMC 1/2x1/8""
COCKPIT
SADDLE
Specialized Body Geometry Fitness, 143mm width, front and rear bumpers
TAPE
Globe City 140mm
SEATPOST
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
HANDLEBARS
Alloy, 25.4mm, 610mm wide, 43 degree up, 57 degree back sweep
STEM
Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
Linear pull
ACCESSORIES
PEDALS
Classic full alloy pedal
*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.
Geometri
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Sadelrørsvinkel | 74.5° | 74° | 73.5° | 73.25° |
| Kronrørslængde | 120mm | 135mm | 155mm | 175mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm |
| Kronrørsvinkel | 73° | 74° | 74° | 74° |
| Kædestagslængde | 455mm | 455mm | 455mm | 455mm |
| Top-Tube Length, Horizontal | 560mm | 575mm | 590mm | 605mm |
| Krankboks – Fornavs afstand | 621mm | 621mm | 630mm | 642mm |
| Stand-Over Height | 707mm | 744mm | 780mm | 816mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 435mm | 485mm | 535mm |
| Forgaflens fremløb | 59mm | 59mm | 59mm | 59mm |
| Krankboksens drop | 65mm | 65mm | 65mm | 65mm |
| Efterløb | 46mm | 40mm | 40mm | 40mm |
| Akselafstand | 1068mm | 1068mm | 1077mm | 1089mm |
Download af manualer
For sikkerhedsadvarsler henvises til dokumentationen i afsnittet Download af manualer, som findes på denne side.
