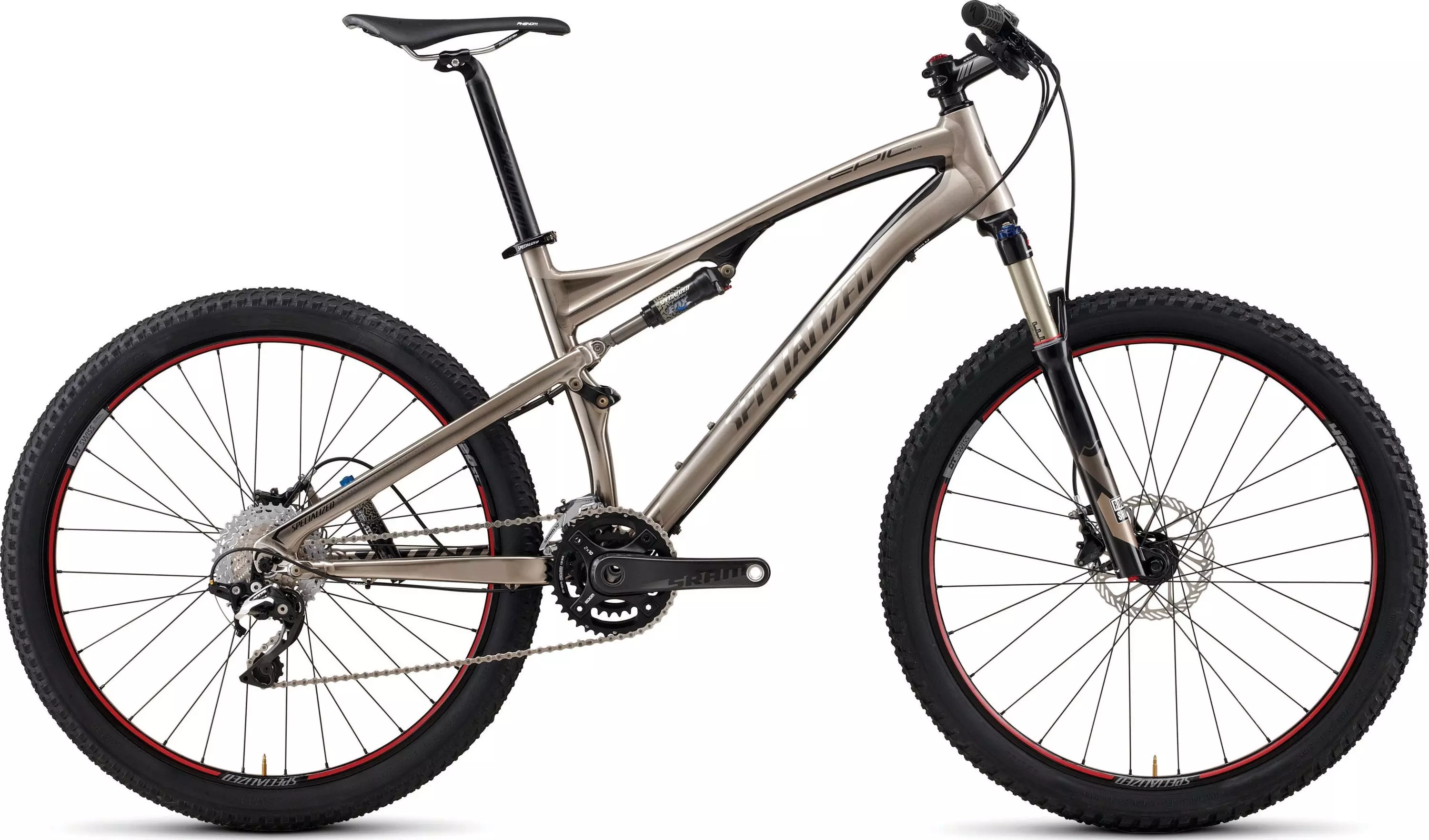

2011 Epic Elite
0 Anmeldelser
World champ blood lines with custom carbon cranks and XTR rear shifting elevate the…
Produktinformation
World champ blood lines with custom carbon cranks and XTR rear shifting elevate the Epic Elite's performance.
Shimano XTR Shadow rear derailleur with carbon cage delivers ultra-light, top-of-the-line shifting performance and legendary durability
Super light, custom SRAM Carbon S-2200 10-speed XC double crankset with GXP spindle, bash guard and removable spider for stiffness, performance, and durability
M5 alloy frame rules the Competitive XC category with 100mm of supple FSR suspension, delivering small bump performance and unsurpassed efficiency in smooth terrain
S-Works The Captain 2.0" front and S-Works Fast Trak 2.0" rear 2Bliss Ready dual compound tires work together to deliver exceptional speed and traction, while minimizing rotating weight
Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination
Tekniske specifikationer
FRAMESET
FRAME
M5 alloy, fully manipulated frame w/ ORE DT/TT, gussetless TT S/M, tapered HT, 135mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
HEADSET
1-1/8"" and 1.1/2"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
WHEELS
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h
REAR HUB
Specialized Hi Lo disc, laser-etched logo, double sealed cartridge bearing,QR, 32h
FRONT TIRE
S-Works ""The Captain"", 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
REAR TIRE
S-Works Fast Trak LK, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
SUSPENSION
REAR SHOCK
Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm
FORK
RockShox Sid RL, tapered alloy steerer, compression and rebound adj., LO, standard drop-outs, 100mm travel
DRIVETRAIN
FRONT DERAILLEUR
SRAM X.7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
Shimano RD-M980 XTR Shadow, 10-speed, mid cage
SHIFT LEVERS
Shimano SL-M660-10R SLX, 10-speed, trigger
CASSETTE
Shimano HG81, 10-speed, 11-36t
CHAIN
KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET
Custom SRAM Carbon S-2200, 10-speed XC double, GXP spindle, removeable spider, S: 170mm, others: 175mm
BOTTOM BRACKET
SRAM GXP, outboard bearing
COCKPIT
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS
Specialized XC low-rise bar, 7050 butted alloy, 660mm wide, 8 degree back sweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Other: Rocca
SADDLE
Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm, 400mm
BRAKES
FRONT BRAKE
Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, S/M: 160mm, L/XL: 185mm rotor
REAR BRAKE
Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, S/M: 140mm, L/XL: 160mm rotor
BRAKE LEVERS
Custom Avid Elixir R SL hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.
Geometri
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 892mm | 902mm | 920mm | 949mm |
| Bottom Bracket Height - Low Setting | 331mm | 331mm | 331mm | 331mm |
| Faktisk overrørslængde, horisontal | 554mm | 589mm | 615mm | 641mm |
| Kronrørshøjde | 125mm | 135mm | 155mm | 185mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat Tube Angle (Effective) - Low Setting | 74° | 74° | 74° | 74° |
| Top Tube Length (Actual) | 527mm | 560mm | 586mm | 615mm |
| Seat Tube Length - Center to Top | 394mm | 424mm | 463mm | 520mm |
| Wheel Base | 1060mm | 1096mm | 1124mm | 1152mm |
| Overrørshøjde | 755mm | 765mm | 774mm | 790mm |
| Stellets stakhøjde | 561mm | 571mm | 589mm | 618mm |
| Stellængde (reach) | 393mm | 425mm | 446mm | 464mm |
| Kædestagslængde | 425mm | 425mm | 425mm | 425mm |
| Pedalarmslængde | 170mm | 175mm | 175mm | 175mm |
| Styrbredde | 660mm | 660mm | 660mm | 660mm |
| Frempindslængde | 75mm | 90mm | 105mm | 105mm |
| Sadelpinds længde | 400mm | 400mm | 400mm | 400mm |
