Stumpjumper 15 Alloy

FOX Coil

$4.900.000

0 Reseñas

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game. Devour…

Completa tu rodada
Remove Icon
Delivery Icon

¡Nosotros entregamos! Solo dinos cuándo y dónde.

Optimiza tus salidas con geometría ajustable

Optimiza tus salidas con geometría ajustable

La Stumpjumper 15 cuenta con la geometría de trail más capaz del planeta. Con ajuste de seis direcciones, personaliza tu viaje para que se adapte perfectamente a tu estilo y terreno. Explora nuestro Geo Finder interactivo para identificar tu entorno ideal.

La forma sigue a la diversión

La forma sigue a la diversión

Podemos hacer un marco tan rígido como queramos, pero resulta que existe algo demasiado rígido. Para ser uno con la bicicleta se requiere conformidad diseñada en el cuadro. Diseñamos el carbono FACT 11M (parte delantera, parte trasera y el vínculo entre ellos) como una sola unidad que alcanza el objetivo de rigidez que establecimos para el ciclismo de montaña.

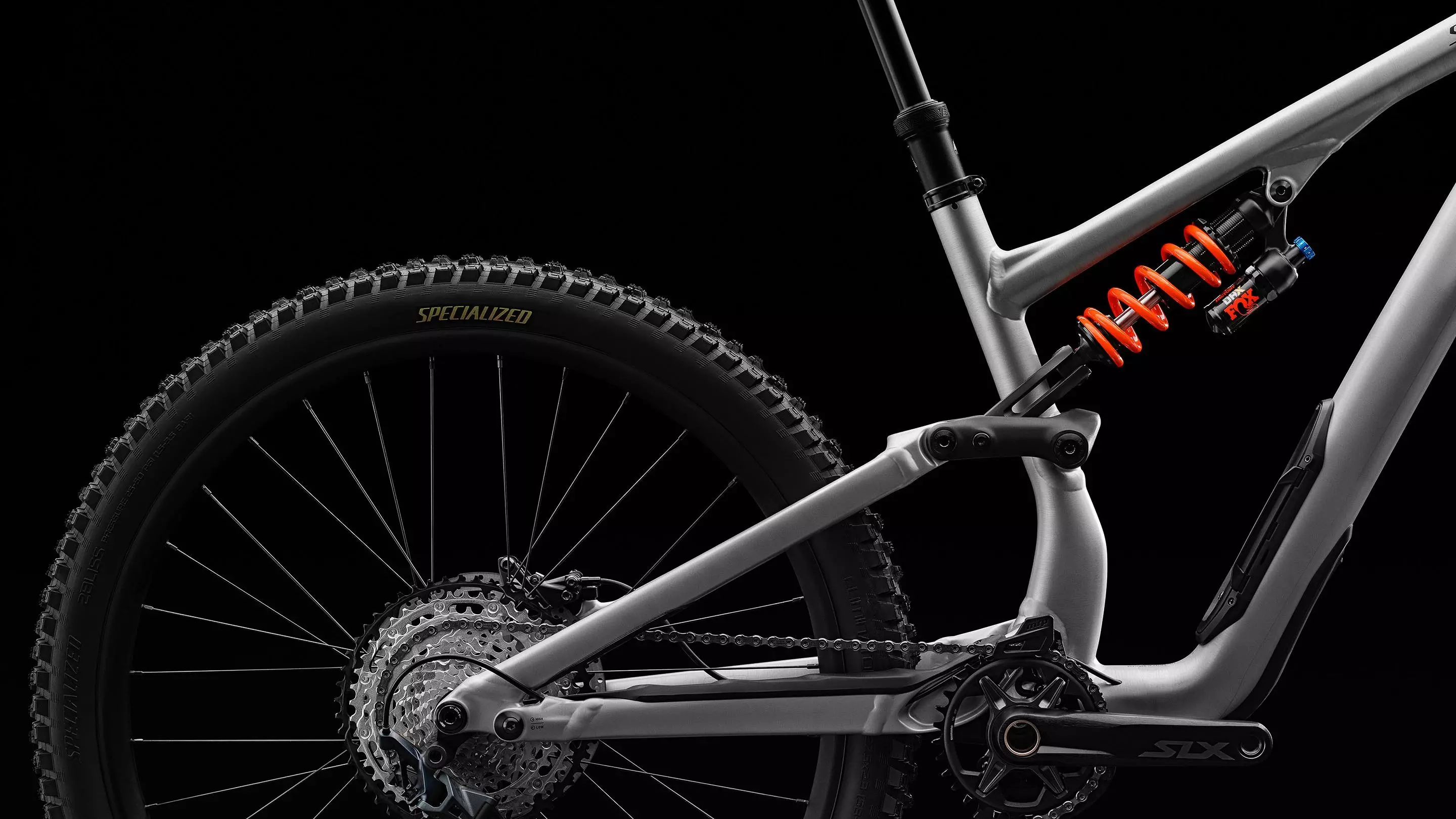

Cinemática perfeccionada

Cinemática perfeccionada

Como la bicicleta de trail por excelencia, la Stumpjumper 15 equilibra la eficiencia y la gestión óptima de la fuerza de los baches. Para el antisquat de la Stumpjumper 15, buscamos un equilibrio entre la Stumpjumper anterior y la Stumpjumper EVO, ya que ambas tenían unas características de pedaleo excelentes.

Stumpjumper 15 - All You Need to Know

Detalles del producto

Add Icon

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?  Check, check, check.

KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 Alloy balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15 Alloy, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY: The Stumpjumper 15 Alloy seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style and any terrain. The head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the M5 Alloy chassis—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

WHEEL SIZE: All coil-sprung models come with mixed wheels.

WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL: SWAT on Stumpjumper 15 elevates downtube storage, an innovation we pioneered.

MORE RELENTLESS THAN YOU: Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and programs to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner is just one way we've got you covered.

  • Nuevos cuadros de aluminio M5 con compartimento SWAT™

  • Ruedas de aluminio Roval Traverse con bujes DT Swiss

  • Amortiguador de muelle FOX DHX Factory optimizado por nuestro equipo de Ride Dynamics

  • Horquilla robusta FOX FLOAT 38 Factory con amortiguador GRIP X2

  • Transmisión Shimano SLX de gran rendimiento y durabilidad

  • Frenos TRP Trail EVO de 4 pistones con un poder de frenada superior

  • Tija telescópica ajustable PNW LOAM

  • Garantía de por vida para el primer comprador de los rodamientos del sistema de suspensión

Especificaciones técnicas

Add Icon

Cuadro

CUADRO

M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

ABRAZADERA

Alloy, 38.6mm

SWAT

SWAT internal downtube storage

Suspensión

SUSPENSION TRASERA

FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs

HORQUILLA

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

Frenos

FRENO DELANTERO

TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm

FRENO TRASERO

TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm

Transmisión

PALANCA DE CAMBIOS

Shimano SLX, M7100, 12spd

DESVIADOR TRASERO

Shimano SLX, M7100, SGS, 12-speed

CASSETTE

Shimano SLX, CS-M7100, 12-speed, 10-51t

CADENA

Shimano SLX, M7100, 12-speed

PEDALIER

Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm

EJE DE CENTRO

Shimano, BB-MT801, Threaded

Ruedas y Neumáticos

LLANTAS

Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5

MAZA DELANTERA

DT Swiss 370, 15x110mm, 28h

MAZA TRASERA

DT Swiss 370, 12x148mm, 32h

RAYOS

Sapim Force

LLANTA DELANTERA

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

NEUMÁTICO TRASERO

Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"

CAMARAS

Standard, Presta valve

Cockpit

POSTE

Deity, 35mm clamp, 35mm length

MANUBRIO

Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise

PUÑOS

Deity, Knuckleduster, Black

ASIENTO

Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm

POSTE DE ASIENTO

PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm

Detalles del Producto

DYNAMO

257786

Peso

DYNAMO

16.90 kg (37 lb, 4.1 oz)

DYNAMO

S4

* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.

Geometría

Add Icon
S2S3S4S5S6
Largo de biela165mm165mm170mm170mm170mm
Ancho de manubrio810mm810mm810mm810mm810mm
Largo de avance35mm35mm35mm35mm35mm
Saddle Width155mm143mm143mm143mm143mm
Largo de poste de asiento150mm170mm200mm200mm200mm
Stack621mm630mm644mm657mm671mm
Alcance420mm445mm470mm495mm525mm
Headtube Length100mm110mm125mm140mm155mm
Headtube Angle64°64°64°64°64°
BB Height340mm340mm340mm340mm340mm
BB Drop35mm35mm35mm35mm35mm
Trail134mm134mm134mm134mm134mm
Fork Length (full)573mm573mm573mm573mm573mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Distancia755mm785mm816mm848mm884mm
Largo de vaina inferior432mm432mm432mm442mm442mm
Distancia entre ejes1186mm1216mm1247mm1288mm1325mm
Top-tube Length (horizontal)574mm596mm625mm649mm678mm
Bike Standover Height751mm745mm745mm745mm751mm
Seat Tube Length385mm405mm425mm445mm465mm
Ángulo de tubo de asiento76.5°76.5°76°76°76°
Saddle Height for Effective ST Angle690mm735mm780mm825mm870mm
Max Seatpost Insertion245mm255mm255mm285mm285mm
Min Seatpost Insertion80mm80mm80mm80mm80mm
Geometría
