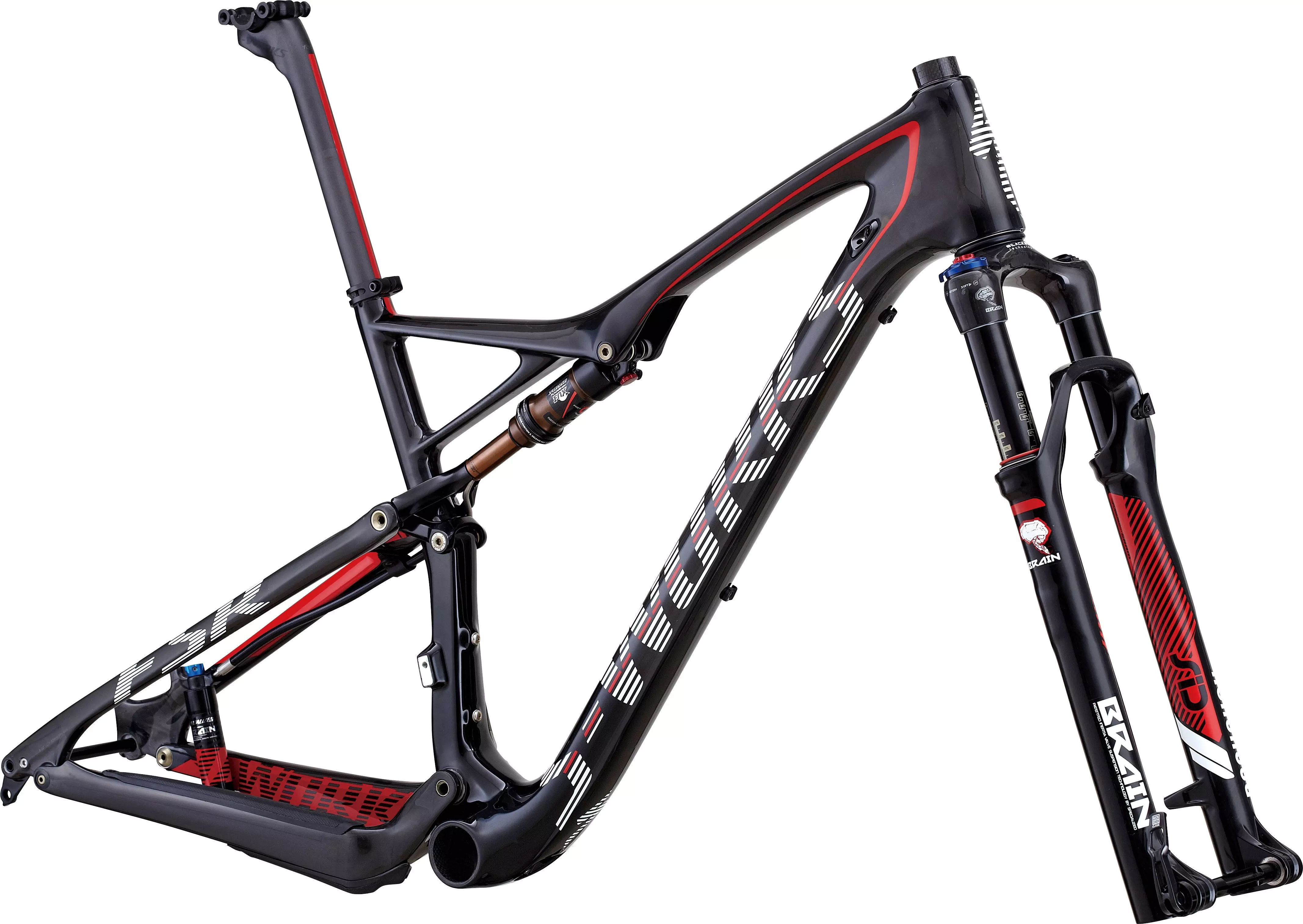

2014 S-Works Epic 29 Frameset
$3.199.000
0 Reseñas
The S-Works Epic FSR features a FACT carbon frame with a FOX/Specialized rear shock…
Color:
Gloss Carbon/White/Red
¿Cuál es mi talla?
Seleccione un Tamaño
Detalles del producto
The S-Works Epic FSR features a FACT carbon frame with a FOX/Specialized rear shock featuring AUTOSAG and Mini-Brain technology and 100mm of travel. Up front a custom RockShox SID World Cup 29 fork offers 100mm of travel, just waiting for a custom cross-country build.
FOX/Specialized remote Mini-Brain inertia-valve shock with AUTOSAG, Kashima coating and new lighter 2014 tune to seamlessly transition from efficient pedaling on smooth terrain to fully active on rough terrain
Custom RockShox SID World Cup 29 fork with Specialized Brain inertia-valve damping has 100mm of air-sprung travel, a carbon steerer tube, and 15mm thru-axle to create the most efficient and supple cross-country fork available
S-Works carbon two-bolt 27.2mm seatpost takes this already featherweight package to its absolute minimum without sacrificing stiffness or strength
All-new FACT IS 11m full carbon frame with dedicated 29er geometry, sealed cartridge bearing pivots on every FSR point, and 142mm dropouts delivers the all-around best performing 100mm-travel Competitive XC bike
Especificaciones técnicas
FRAMESET
FRAME
FACT 11m carbon front triangle, SWAT EMT tool cradle, 29"" geometry, FACT IS construction, full FACT carbon rear triangle, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm
SWAT
SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, single bolt, 31.8mm
DRIVETRAIN
BOTTOM BRACKET
PF30, OS press-in bearings, sealed cartridge
COCKPIT
SEATPOST
Specialized carbon, single bolt, 27.2mm, S: 350mm, Others: 400mm
SUSPENSION
REAR SHOCK
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve w/ Aramid hose, Brain Fade adjust, 205x53mm, 100mm travel
FORK
Custom RockShox SID World Cup 29 Brain, inertia valve damper, Solo Air spring, tapered carbon crown/steerer, top-mount Brain Fade and rebound adj., 15mm thru-axle, 100mm travel
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| S | M | L | XL | |
|---|---|---|---|---|
| Largo de tubo de asiento, Centro a parte superior | 400mm | 434mm | 470mm | 520mm |
| Largo de tubo superior, Real | 529mm | 557mm | 583mm | 611mm |
| Bottom Bracket Drop | 40mm | 40mm | 40mm | 40mm |
| Altura de caja pedalera | 332mm | 332mm | 332mm | 332mm |
| Ángulo de tubo de asiento, Real | 68.9° | 69.25° | 69.6° | 70° |
| Ángulo de tubo de asiento, Efectivo | 73.75° | 73.75° | 73.75° | 73.75° |
| Distancia entre ejes | 1082mm | 1112mm | 1140mm | 1168mm |
| Altura de standover | 770mm | 774mm | 780mm | 793mm |
| Stack | 587mm | 601mm | 615mm | 634mm |
| Alcance | 393mm | 418mm | 441mm | 462mm |
| Largo de tubo de dirección | 90mm | 105mm | 120mm | 140mm |
| Ángulo de tubo de dirección | 70.5° | 70.5° | 70.5° | 70.5° |
| Largo de vaina inferior | 448mm | 448mm | 448mm | 448mm |
| Largo de tubo superior, Horizontal | 564mm | 593mm | 620mm | 647mm |
| Largo de biela | 170mm | 175mm | 175mm | 175mm |
| Ancho de manubrio | 700mm | 700mm | 700mm | 700mm |
| Largo de avance | 75mm | 90mm | 100mm | 110mm |
| Largo de poste de asiento | 350mm | 400mm | 400mm | 400mm |
Descargas manuales
Para las advertencias de seguridad, consulte la documentación en la sección Descargas de Manuales de esta página.
