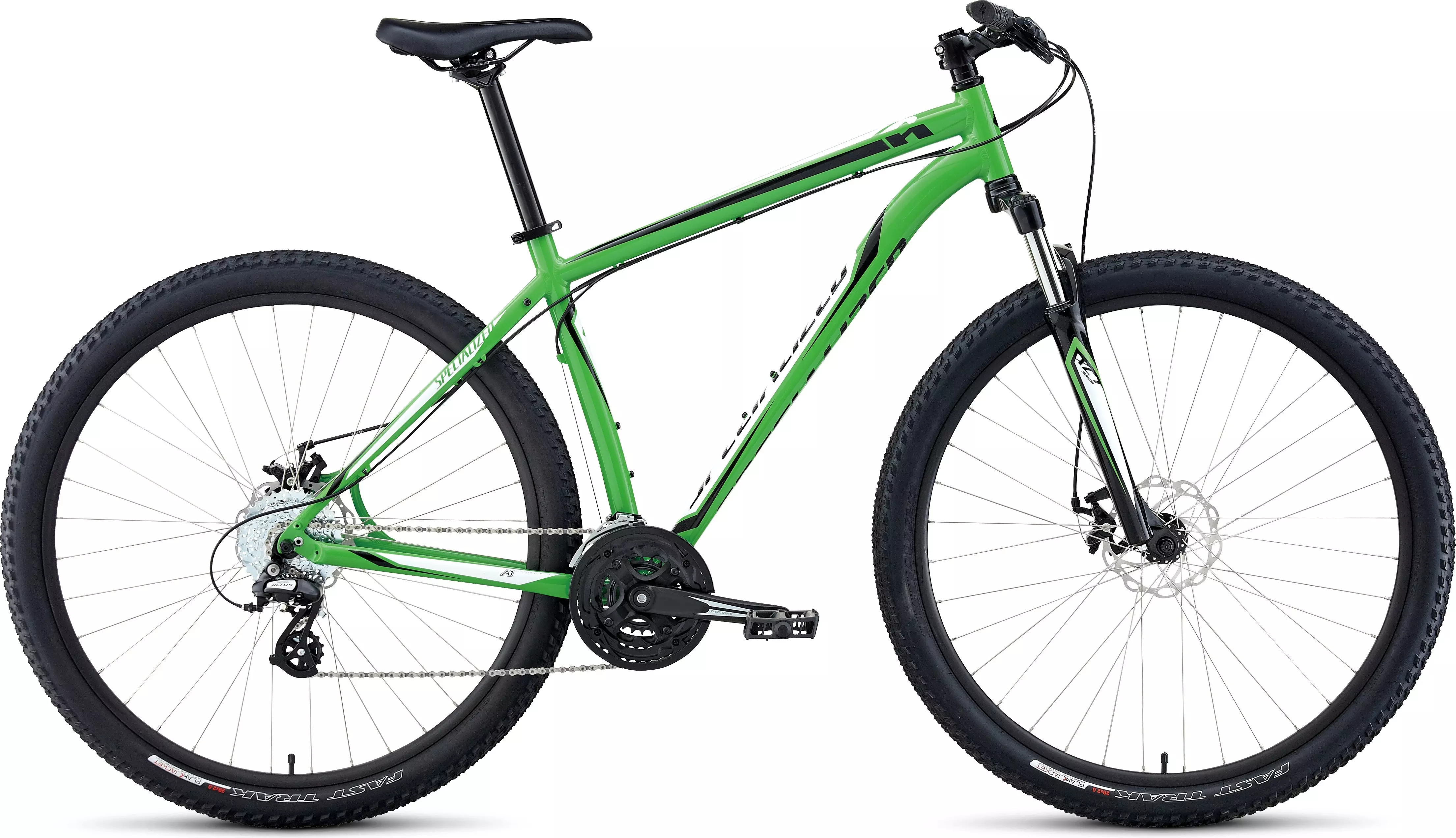

2014 Hardrock Disc 29
0 Reseñas
Con suspensión suave SR Suntour con bloqueo, frenos de disco mecánicos Tektro poderosos…
Detalles del producto
- A1 Premium Aluminum 29er frame with ORE downtube for a lighter, more compliant and durable bike
- 80mm-travel SR Suntour fork with preload adjustment and size-specific spring rates means the suspension is dialed for your size.
- Specialized Fast Trak Sport tires use Adaptive Tread Technology for lower rolling resistance, but have plenty of grip for confidence on the trail
- Tektro Novela mechanical disc brake offers dual pad angle adjustment and reliable stopping power in all weather conditions
- Sunrace 8-speed, 11-34 cassette offers gearing options for getting up to speed on the trail
- Specialized Body Geometry Hardrock saddle has ample padding for comfort, and front/rear bumpers for durability
Especificaciones técnicas
FRAMESET
SEAT BINDER
Forged alloy, 34.9mm, QR, nylon washer
HEADSET
1-1/8"" threadless, loose ball
FRAME
Specialized A1 Premium Aluminum, 29er Geometry, ORE downtube, externally relieved headtube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger
WHEELS
SPOKES
Stainless, 14g (2.0mm)
REAR TIRE
Specialized Fast Trak Sport, 29x2.0"", wire bead, 40TPI
FRONT TIRE
Specialized Fast Trak Sport, 29x2.0"", wire bead, 40TPI
RIMS
HR Disc 29"", alloy double-wall, disc, pin joint, 25mm, 36h
REAR HUB
Disc, alloy, double-sealed, loose ball, steel axle, steel cassette body, QR, 36h
FRONT HUB
Disc, alloy, double-sealed, loose ball, steel axle, QR, 36h
INNER TUBES
Standard Schrader valve
SUSPENSION
FORK
SR Suntour SF13-XCT 29"", coil/MCU spring, 1-1/8"" steel steerer, w/ preload adj., 28mm steel stanchions, disc only lowers, 80mm travel
DRIVETRAIN
CHAIN
KMC X8
FRONT DERAILLEUR
Shimano Tourney, 7-speed, 34.9mm clamp, top-swing, dual-pull
REAR DERAILLEUR
Shimano Altus, 8-speed, SGS Cage
CASSETTE
Sunrace, 8-speed, 11-34
CHAINRINGS
42/34/24, steel
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm shell
SHIFT LEVERS
Shimano ST-EF51, 8-speed trigger, w/ integrated brake lever
CRANKSET
Alloy, square taper spindle
COCKPIT
STEM
Alloy, 4-bolt clamp, 10-degree rise, 25.4mm
GRIPS
Specialized Body Geometry XCT, Kraton w/ gel, 132mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, 350mm/400mm
HANDLEBARS
Specialized flat bar, alloy, 640mm/660mm wide, 8-degree backsweep, 4-degree upsweep, 25.4mm
SADDLE
Specialized Body Geometry Hardrock, steel rails, 143mm
BRAKES
REAR BRAKE
Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
FRONT BRAKE
Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
BRAKE LEVERS
Shimano, included w/ shifter
ACCESSORIES
PEDALS
Composite platform, w/ reflectors, 9/16""
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| 15.5 | 17.5 | 19.0 | 21.0 | 23.0 | |
|---|---|---|---|---|---|
| Largo de tubo superior (Horizontal) | 574mm | 591mm | 610mm | 640mm | 660mm |
| Ángulo de tubo de asiento (Efectivo) | 74.25° | 73° | 73° | 73° | 73° |
| Largo de tubo superior (Real) | 551mm | 552mm | 568mm | 596mm | 631mm |
| Ángulo de tubo de asiento (Real) | 73° | 72° | 72° | 72° | 72° |
| Largo de tubo de asiento, Centro a parte superior | 394mm | 444mm | 483mm | 533mm | 584mm |
| Bottom Bracket Drop | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm |
| Altura de caja pedalera | 301mm | 301mm | 301mm | 301mm | 301mm |
| Distancia entre ejes | 1072mm | 1072mm | 1091mm | 1122mm | 1142mm |
| Altura de standover | 750mm | 783mm | 808mm | 846mm | 884mm |
| Stack | 624mm | 626mm | 635mm | 654mm | 673mm |
| Alcance | 383mm | 388mm | 404mm | 427mm | 441mm |
| Largo de tubo de dirección | 100mm | 100mm | 110mm | 130mm | 150mm |
| Ángulo de tubo de dirección | 70.5° | 71° | 71° | 71° | 71° |
| Largo de vaina inferior | 450mm | 450mm | 450mm | 450mm | 450mm |
| Largo de biela | 170mm | 175mm | 175mm | 175mm | 175mm |
| Ancho de manubrio | 640mm | 660mm | 660mm | 660mm | 660mm |
| Largo de avance | 60mm | 80mm | 80mm | 100mm | 100mm |
| Largo de poste de asiento | 350mm | 350mm | 400mm | 400mm | 400mm |
