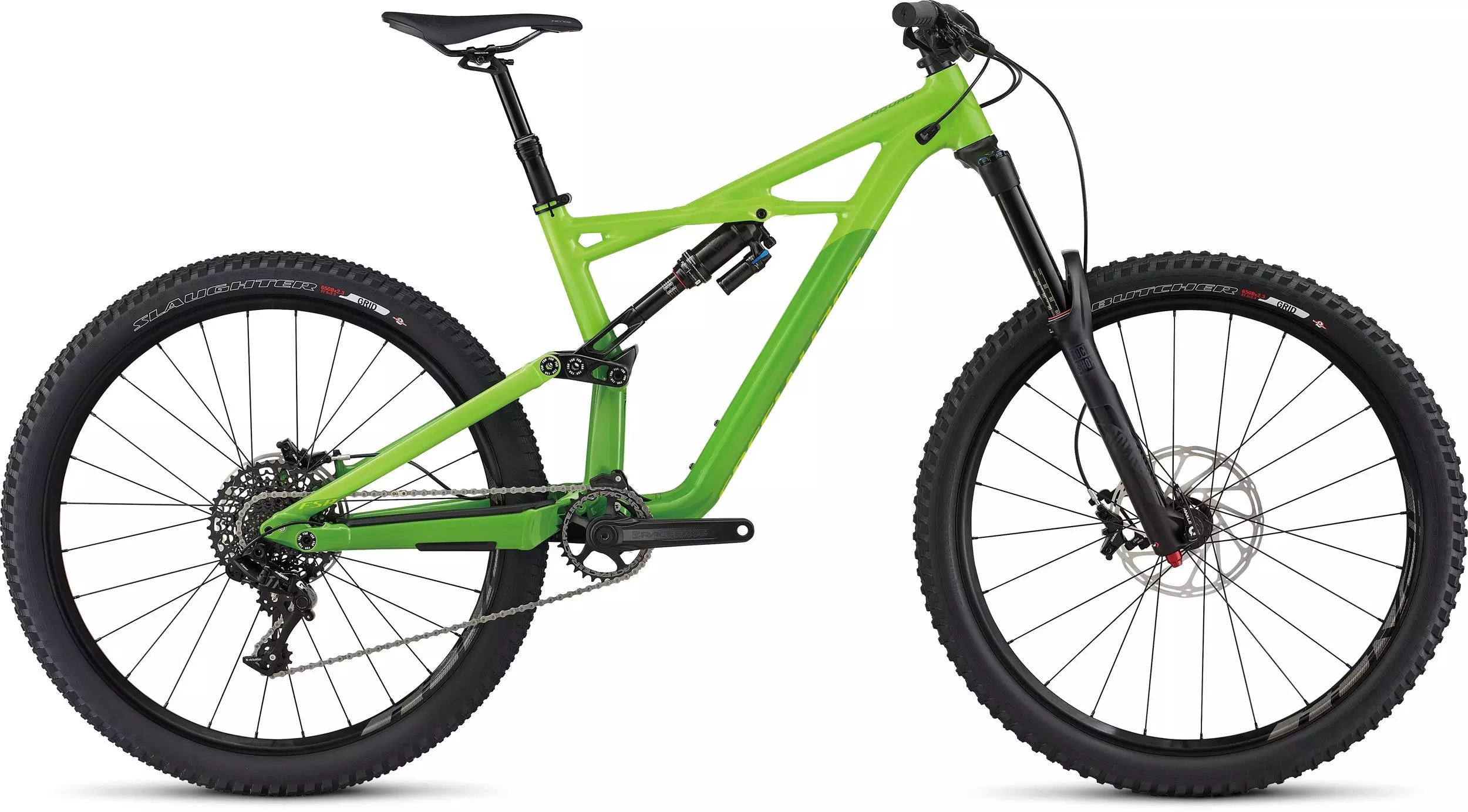

2017 Enduro Comp 650b

$1.600.000

0 Reseñas

Nimble, flick'able, agile—whatever you want to call it, our Enduro Comp 650b embodies…

Detalles del producto

Nimble, flick'able, agile—whatever you want to call it, our Enduro Comp 650b embodies it in one hell of a beautiful, redesigned alloy package. We gave it a whole new geometry, with a slacker front end, a longer top tube, even shorter chainstays, and a lower bottom bracket. All of this together makes the bike truly feel glued to the ground, and the platform is more responsive and capable then ever. We even made ''old'' new again by making a triumphant return to a threaded bottom bracket. To make the Enduro capable of standing up to any trail, the frame is constructed with our legendary X-Wing layout and M5 alloy. And to ensure top-level performance on the descents, this material choice is greeted by 170mm of plush travel at both the front and rear. And handling suspension duties out back is the talk of the town rear shock, the RockShox Monarch Plus with our Rx Trail Tune. For the build, this Enduro is packed with drool-worthy gear, like SRAM one-by 11-speed shifting, powerful Guide R brakes w/ S4 calipers, stupid-fast Roval wheels, and a RockShox Yari fork up front.

The frame has an X-Wing layout with an M5 alloy construction. Together, these elements combine to form the perfect balance of efficiency, weight savings, and unparalleled strength. It's also been built off our 650b Geometry in order to provide an aggressive, well-rounded ride. And with internal routing and a return to a threaded bottom bracket, you get a bike that's clean, dependable, and ready for anything that the trail has to offer.
RockShox Yari RC fork features a 15x110mm Maxle Ultimate thru-axle, a Solo Air™ spring, and 170mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
SRAM's 11-speed GX rear derailleur serves up powerful and precise one-by shifting, so you can say goodbye to dropped chains and unecessary grams.

Especificaciones técnicas

FRAMESET

FRAME

M5 alloy, X-wing layout, All-Mountain Geometry, threaded BB, internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 170mm of travel

SEAT BINDER

Specialized, alloy, 2-bolt, 27.2mm

WHEELS

RIMS

Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready

FRONT HUB

Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h

REAR HUB

Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

SPOKES

DT Swiss Industry, stainless, 3x, 2.0""

FRONT TIRE

Butcher, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Slaughter, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

INNER TUBES

650bx1.75/2.4mm, 40mm Presta valve

SUSPENSION

REAR SHOCK

RockShox Monarch Plus, Rx All-Mountain Tune, AUTOSAG, rebound and 3-position compression adjust, 216x57mm

FORK

RockShox Yari RC 27.5, Solo Air, rebound & compression adjust, 15x110mm Maxle Ultimate thru-axle, 170mm travel

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, long cage, 11-speed

SHIFT LEVERS

SRAM NX, 11-speed, trigger

CASSETTE

SRAM XG-1150, 11-speed, 10-42t

CHAIN

SRAM PC-1110, 11-speed w/PowerLink

CRANKSET

RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 30T

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized DH, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm width

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

BRAKES

FRONT BRAKE

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm rotor

REAR BRAKE

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm rotor

* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.

Geometría

	S	M	L	XL
Largo de biela	170mm	170mm	170mm	170mm
Ancho de manubrio	780mm	780mm	780mm	780mm
Largo de avance	45mm	45mm	60mm	60mm
Saddle Width	143mm	143mm	143mm	143mm
Largo de poste de asiento	390mm	430mm	430mm	430mm
Ángulo de tubo de asiento	76.5°	76°	76°	75°
Largo de tubo de dirección	95mm	100mm	115mm	125mm
Ángulo de tubo de dirección	65.5°	65.5°	65.5°	65.5°
Largo de vaina inferior	425mm	425mm	425mm	425mm
Front-Center	728mm	750mm	776mm	801mm
Caída de caja pedalera	10.5mm	10.5mm	10.5mm	10.5mm
Bike Stand-Over Height	761mm	771mm	782mm	796mm
Fork Length (full)	559mm	559mm	559mm	559mm
Top-Tube Length (horizontal)	551mm	576mm	604mm	632mm
Seat-Tube Length	396mm	430mm	467mm	521mm
B-B Height (650x2.3)	345mm	345mm	345mm	345mm
B-B Height (650x2.6)	350mm	350mm	350mm	350mm
Stack	585mm	590mm	604mm	613mm
Alcance	410mm	430mm	450mm	470mm
Trail	106mm	106mm	106mm	106mm
Fork Rake/Offset	51mm	51mm	51mm	51mm
Distancia entre ejes	1153mm	1175mm	1201mm	1225mm
