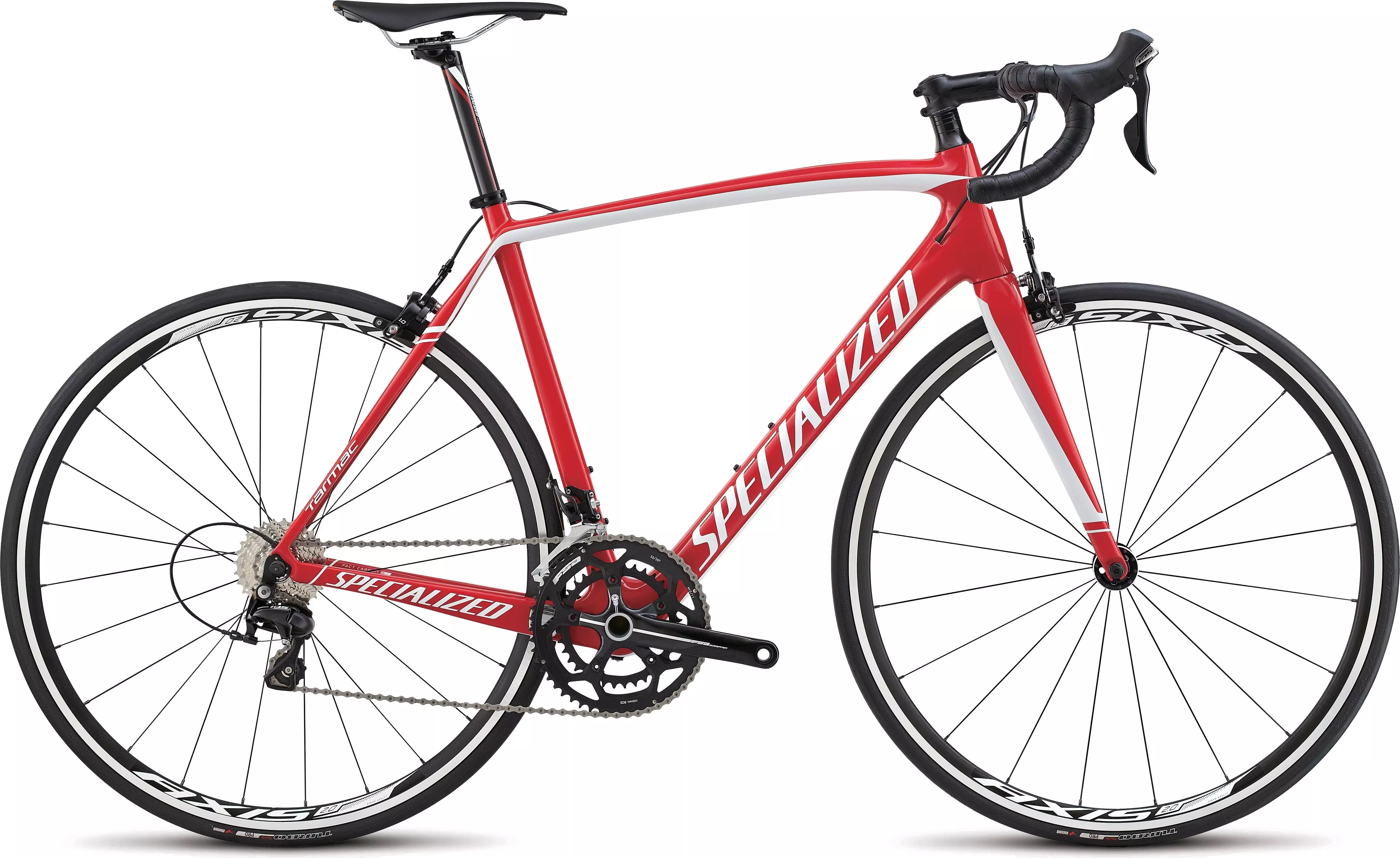

2015 Tarmac Sport
0 Reviews
The Tarmac Sport is a pure and unbridled race machine. It climbs effortlessly, descends…
Color:
Gloss Red/ White
What's my size?
Select a Size
Product Details
The Tarmac Sport is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. Bottom line, you'll be faster on this bike. With a Shimano 105 drivetrain it's the perfect combination of performance and exceptional value.
FACT 9r carbon frame is ultra-stiff and lightweight for pure speed
Body Geometry Toupé Comp Gel saddle w/ hollow Cr-Mo rails for comfort without compromise
Shimano 105, 11-speed derailleur for crisp and precise shifting
FACT 9r carbon frame is ultra-stiff and lightweight for pure speed
Body Geometry Toupé Comp Gel saddle w/ hollow Cr-Mo rails for comfort without compromise
Body Geometry Toupé Comp Gel saddle w/ hollow Cr-Mo rails for comfort without compromise
FACT 9r carbon frame is ultra-stiff and lightweight for pure speed
Technical Specifications
FRAMESET
FRAME
Specialized FACT 9r carbon, FACT construction, compact race design, 1-3/8" lower bearing, OSBB
SUSPENSION
FORK
Specialized FACT carbon, monocoque, OS race for 1-3/8" bearing
WHEELS
FRONT WHEEL
AXIS 2.0
REAR WHEEL
AXIS 2.0
FRONT TYRE
Specialized Turbo Pro, 127TPI, folding bead, BlackBelt protection, 700x23mm
REAR TYRE
Specialized Turbo Pro, 127TPI, folding bead, BlackBelt protection, 700x23mm
INNER TUBES
Standard, presta valve
COCKPIT
HANDLEBARS
Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach
STEM
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
HEADSET
1-1/8" upper, 1-3/8" lower, integrated Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm of spacers
TAPE
Specialized Classic, w/ gel
SADDLE
Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Comp, FACT carbon, 27.2mm
SEAT BINDER
Alloy, 32.6mm
DRIVETRAIN
SHIFT LEVERS
Shimano 105 STI, 11-speed
FRONT DERAILLEUR
Shimano 105, 11-speed
REAR DERAILLEUR
Shimano 105, 11-speed
CASSETTE
Shimano 105, 11-speed, 11-28t
CRANKSET
FSA Gossamer, BB30
CHAIN
Shimano 105, 11-speed
BRAKES
FRONT BRAKE
AXIS 1.0
REAR BRAKE
AXIS 1.0
ACCESSORIES
PEDALS
Nylon, loose ball bearings, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 755mm | 775mm | 795mm | 826mm | 850mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 504mm | 526mm | 543mm | 564mm | 591mm | 612mm |
| Reach | 386mm | 386mm | 387mm | 395mm | 402mm | 408mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
