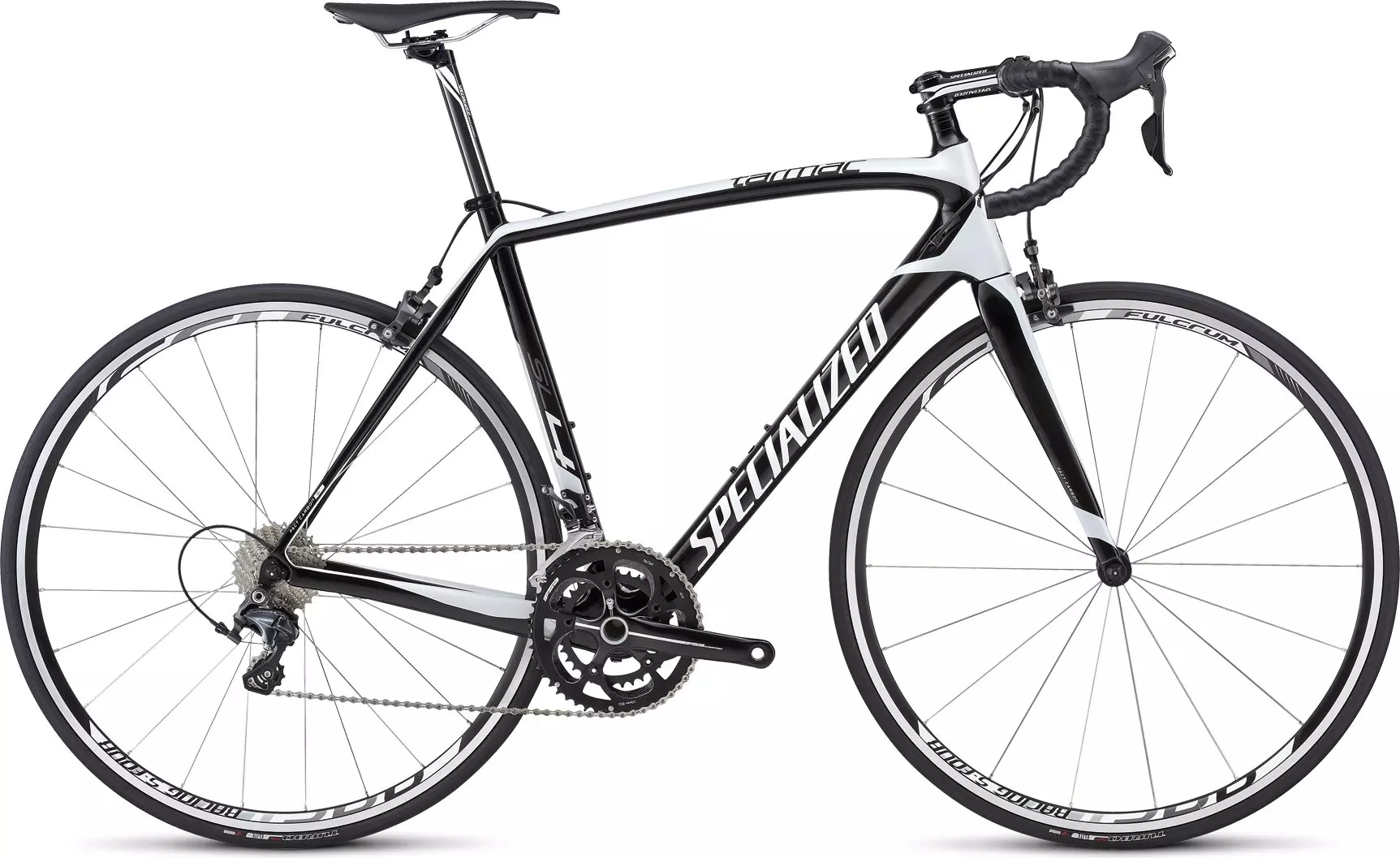

2014 Tarmac SL4 Comp Ultegra Euro

0 Reviews

The Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends…

Color:

Gloss Carbon/White/Charcoal

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. It's the lightest, stiffest frame we make and it shows as soon as you push on the pedals. Bottom line, you'll be faster on this bike. There's a reason it's the weapon of choice for the Saxo-Tinkoff, Astana and Omega Pharma-Quick-Step Pro Tour teams.

Specialized SL4 FACT 9r carbon frame with uniquely shaped, tapered headtube and OSBB is now even stiffer and lighter for pure, unbridled speed and power, paired with tapered, full-monocoque FACT carbon fork for ultimate steering precision
New Shimano Ultegra, 11-speed mechanical drivetrain delivers light-action, precise shifting in a lightweight system, forming one of the finer parts kits available
Feel confident descending with new Shimano Ultegra brakes that deliver the incredible stopping power only dual-pivot calipers can
Specialized Turbo Elite 23c tires roll like a racing tire, but offer incredible durability and puncture resistance through BlackBelt protection

Technical Specifications

FRAMESET

FRAME

Specialized SL4 FACT 9r carbon, FACT construction, compact race design, 1-3/8"" lower bearing, OSBB

FORK

Specialized FACT carbon full monocoque, OS race for 1-3/8"" bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower, Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer, w/ 20mm of spacers

SEAT BINDER

Forged alloy, 32.6mm

WHEELS

FRONT WHEEL

Fulcrum S4

REAR WHEEL

Fulcrum S4

FRONT TIRE

Specialized Turbo Elite, 60TPI, foldable aramid bead, BlackBelt protection, 700x23c

REAR TIRE

Specialized Turbo Elite, 60TPI, foldable aramid bead, BlackBelt protection, 700x23c

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Ultegra STI, 11-speed

FRONT DERAILLEUR

Shimano Ultegra, braze-on, 11-speed

REAR DERAILLEUR

Shimano Ultegra, 11-speed

CASSETTE

Shimano Ultegra, 11-speed, 11-28

CRANKSET

FSA Gossamer Pro, BB30

CHAINRINGS

52/36

BOTTOM BRACKET

OS integrated, sealed bearings

CHAIN

KMC X11L

COCKPIT

HANDLEBARS

Specialized Tarmac Comp, alloy, 140mm drop, 85mm reach

STEM

Specialized Expert Pro-Set, 3D forged aluminum, 4-position adjustable, 4-bolt, 31.8mm

TAPE

Specialized Classic Wrap

SADDLE

Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized Comp, carbon, 27.2mm

BRAKES

FRONT BRAKE

Shimano Ultegra

REAR BRAKE

Shimano Ultegra

BRAKE LEVERS

Shimano Ultegra

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	490.0	520.0	540.0	560.0	580.0	610.0
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	120mm	140mm	160mm	190mm	210mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	576mm	576mm	583mm	591mm	605mm	612mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	730mm	755mm	775mm	795mm	826mm	850mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	510mm	530mm	550mm	580mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	504mm	526mm	543mm	564mm	591mm	612mm
Reach	386mm	386mm	387mm	395mm	402mm	408mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
