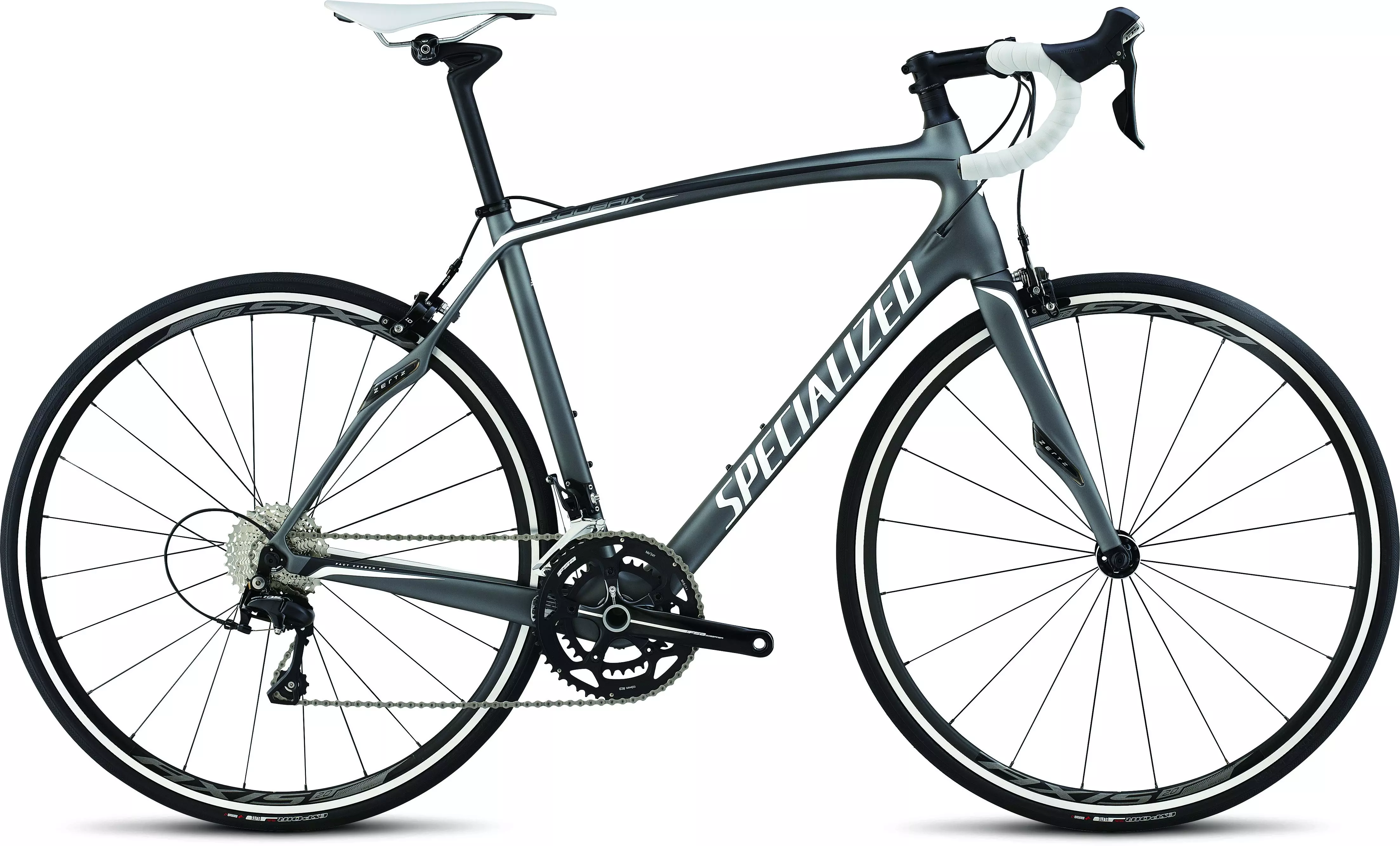

2015 Roubaix SL4 Sport

2 Reviews

Smoother is faster. The more comfortable and less fatigued you are at the end of…

Product Details

Smoother is faster. The more comfortable and less fatigued you are at the end of a 4-hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the Roubaix SL4 help absorb road impact and keep power planted firmly on the road—couple that with a FACT carbon 8r frame and it's still plenty stiff to thrash around in a sprint.

Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping
Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping
Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping
AXIS 2.0 wheels provide semi-aero performance with strong, lightweight rims
FSA Gossamer Pro, BB30 crankset delivers excellent power transfer
AXIS 2.0 wheels provide semi-aero performance with strong, lightweight rims
Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping

Technical Specifications

FRAMESET

FRAME

Specialized SL4 FACT 8r carbon, 1-1/8" to 1-3/8" head tube, compact race design, Zertz, internal rear brake cable, OSBB

FORK

Specialized FACT carbon

WHEELS

FRONT WHEEL

AXIS 2.0

REAR WHEEL

AXIS 2.0

FRONT TYRE

Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25mm

REAR TYRE

Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25mm

INNER TUBES

Standard, presta valve

COCKPIT

HANDLEBARS

Specialized Comp, shallow drop, 6061 alloy, 125mm drop, 70mm reach

STEM

Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise

HEADSET

1-1/8" upper, 1-3/8" lower, Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm spacers

TAPE

Specialized Roubaix, w/ 2.5mm gel pads

SADDLE

Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, 27.2mm

SEAT BINDER

Alloy, 32.6mm

DRIVETRAIN

SHIFT LEVERS

Shimano 105 STI, 11-speed

FRONT DERAILLEUR

Shimano 105, 11-speed

REAR DERAILLEUR

Shimano 105, 11-speed, long cage

CASSETTE

Shimano 105, 11-speed, 11-32

CRANKSET

FSA Gossamer, BB30

CHAIN

Shimano 105, 11-speed

ACCESSORIES

PEDALS

Nylon, loose ball bearings, w/ reflectors

BRAKES

FRONT BRAKE

AXIS 1.0

REAR BRAKE

AXIS 1.0

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	125mm	145mm	165mm	190mm	225mm	245mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72°	72°	72°	72.5°	72.5°	73°
Chain-Stay Length	412mm	412mm	415mm	415mm	418mm	420mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	582mm	588mm	595mm	606mm	621mm	628mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	730mm	756mm	776mm	798mm	829mm	851mm
Seat-Tube Length, B-B Center to Top	445mm	475mm	495mm	515mm	540mm	565mm
Fork Rake	49mm	49mm	49mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Stack	527mm	546mm	563mm	589mm	621mm	642mm
Reach	378mm	379mm	380mm	387mm	392mm	398mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Wheelbase	983mm	989mm	1000mm	1010mm	1029mm	1038mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
