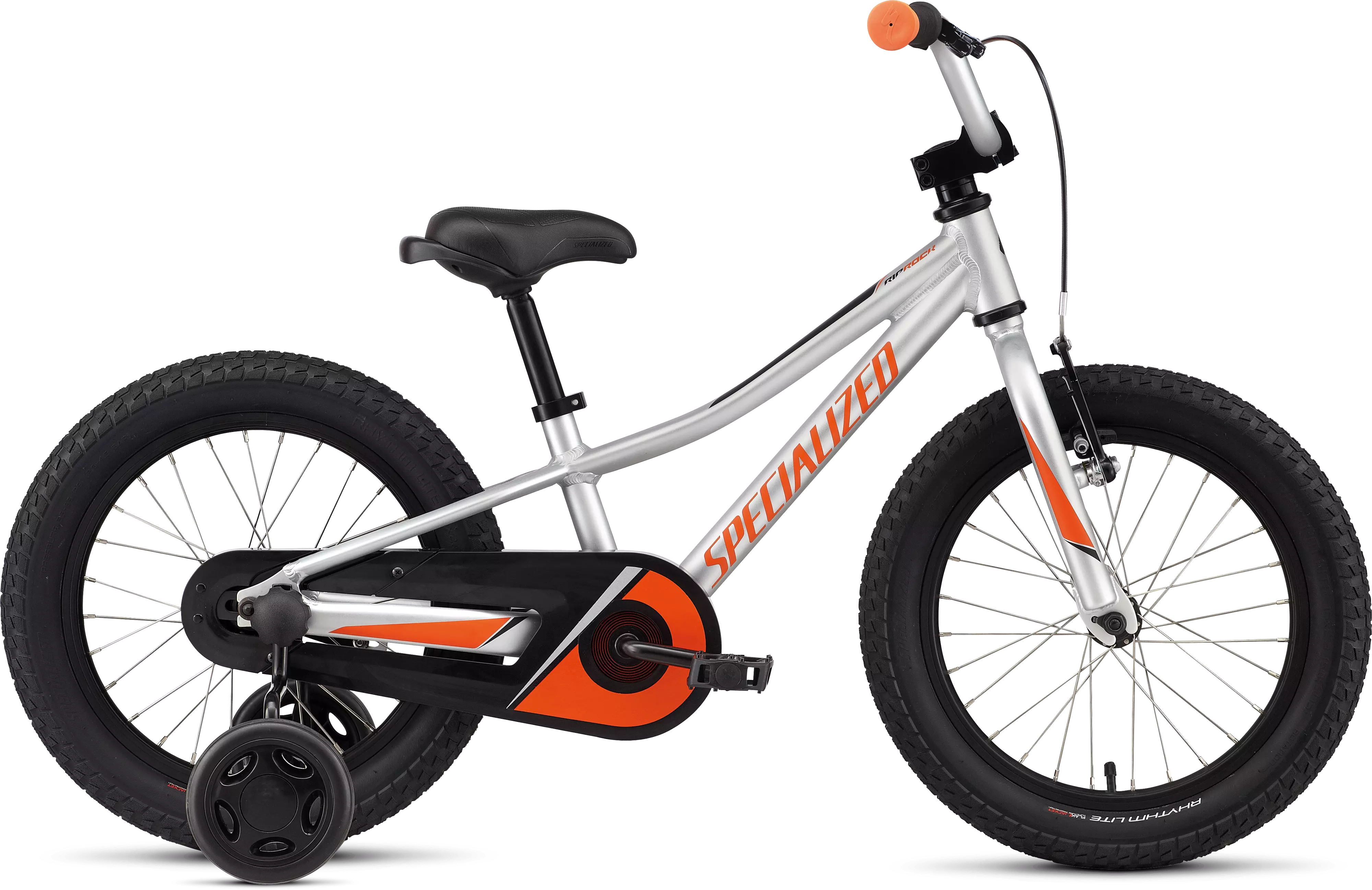

With our Riprock Coaster 16, riding gets boiled down to its simplest element—fun.…
Product Details
With our Riprock Coaster 16, riding gets boiled down to its simplest element—fun. And to make sure of it, we designed the bike with tons of cool features that are easy for your little ones to use, like a coaster brake for simple stopping, wide 16x2.3" tires that increase stability and confidence, and tough components that will stand up to years of abuse. It's the perfect bike for your little ripper to start getting out on the trail with—we just wish that we had one when we were kids.
The A1 premium aluminum frame is lightweight and built to withstand the tough use by kids, while the geometry features an ultra-low standover that makes it easy for your little ones to fit on and grow with the bike.
Steel coaster brake is a reliable, easy to use brake perfect for safe stops and awesome skids.
16x2.3" Rhythm Lite tires deliver tons of traction, comfort, stability, and fun over all types of terrain.
Technical Specifications
FRAMESET
Frame
Specialized A1 Premium Aluminum
Fork
Hi-Ten steel
Seat Binder
Bolt-type, 28.6mm
COCKPIT
SeatPost
Steel, 22.2mm
Saddle
Specialized Kids' Henge
Stem
Die Cast Aluminum, 37mm length, 10 degree, 22.2 clamp diameter
Handlebars
BMX, steel, 10-degree backsweep, 4-degree upsweep, 115mm rise, 520mm width, 22.2mm
Grips
Specialized, slip-on
BRAKES
Front Brake
V-brake w/ tool-less reach adjust brake lever
DRIVETRAIN
Chain
KMC Z510, single-speed, anti-drop, 1/2"x1/8"
Crankset
Hi-Ten steel, 89mm
Chainrings
Steel, 26T
Bottom Bracket
Feimin FP-B701, 68MM
ACCESSORIES
Pedals
Nylon platform w/ reflectors
WHEELS
Rims
16" alloy, 16mm depth, 21mm internal width, 28h
Front Hub
Steel, bolt-on, 100mm spacing, loose ball bearings, 28h
Rear Hub
Coaster brake, bolt-on, loose ball bearings, 110mm spacing, 16T cog, 28h
Spokes
Stainless, 14g
Front Tire
Rhythm Lite, 30 TPI, wire bead, 16x2.3"
Rear Tire
Rhythm Lite, 30 TPI, wire bead, 16x2.3"
Inner Tubes
Schrader valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 16 | |
|---|---|
| Crank Length | 3.5inmm |
| Handlebar Width | 520mm |
| Stem Length | 37mm |
| Saddle Width | 135mm |
| Seatpost Length | 230mm |
| Seat Tube Length, BB Center to Top | 210mm |
| Top Tube Length, Horizontal | 395mm |
| BB Drop | 27mm |
| Chainstay Length | 310mm |
| Seat Tube Angle | 71° |
| Head Tube Angle | 70° |
| Fork Rake | 5mm |
| Trail | 72mm |
| Front Center | 399mm |
| Wheelbase | 707mm |
| Standover Height | 405mm |
| Head Tube Length | 80mm |
| Reach | 272mm |
| Stack | 358mm |
