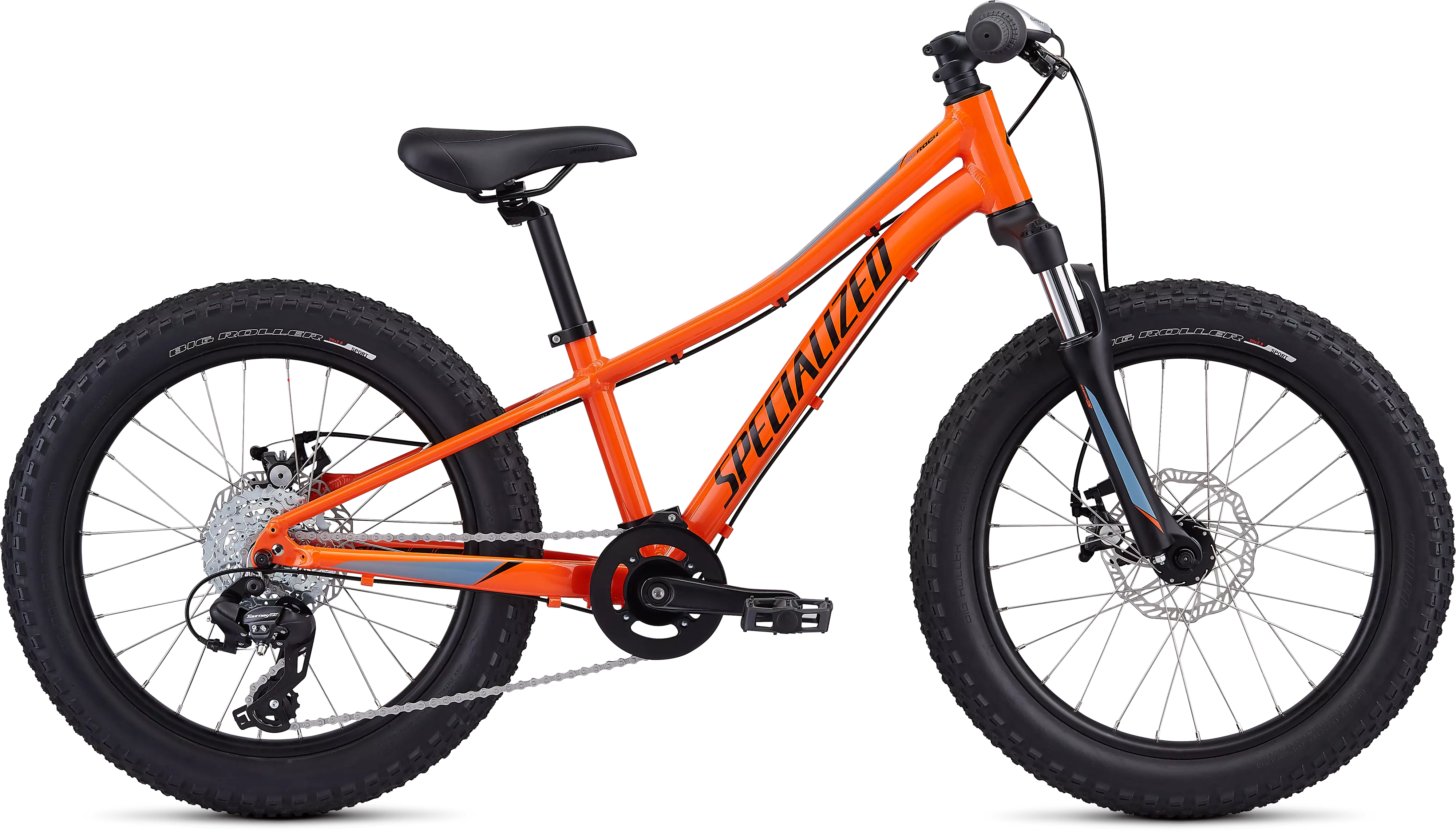

2019 Riprock 20
Part No.: 96519-7109
MSRP: R 8,500.00
5
1 Reviews
Traction, control, confidence, and fun—the Riprock 20 is the perfect bike for your…
Color:
Gloss Moto Orange/Charcoal/Storm Grey-Cool Grey Fade
Size:
9
Product Details
Traction, control, confidence, and fun—the Riprock 20 is the perfect bike for your kid to start hitting the trails.
While there are many notable features that make the Riprock awesome, it's the 2.8-inch tires that provide a high degree of, well, shred-ability—delivering exceptional traction, control, and confidence for riding rough, off-road sections and city streets alike. And when you combine the big tires with sturdy 20-inch wheels, mechanical disc brakes, and seven-speed shifting, you have the perfect mountain bike to get your little Ripper out on the path to a lifetime of fun rides.
The A1 premium aluminum frame is lightweight and built to withstand the tough use by kids, while the geometry features an ultra-low standover that makes it easy for your little ones to fit on and grow with the bike.
Custom SR Suntour XCT fork features a sturdy construction and a coil spring that delivers 60mm of bump absorbing travel.
The 2.8-inch Big Roller tires not only ensure exceptional traction, but also offer greater ride quality, stability, and loads of fun.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, single-butted, ZeroStack head tube, 135mm rear hub spacing, forged dropouts, replaceable derailleur hanger
SUSPENSION
FORK
SR Suntour XCT, coil spring, preload adjust, 60mm of travel
COCKPIT
HANDLEBARS
580mm, 5-degree backsweep, 25.4mm
STEM
3D-forged alloy, 4-bolt, 6-degree rise, 25.4mm clamp, 60mm
GRIPS
Specialized, slip-on
SADDLE
Specialized Kids' Henge
SEATPOST
Alloy, single-bolt, 27.2MM
SEAT BINDER
Bolt-type, 31.8mm
BRAKES
REAR BRAKE
Mechanical disc, organic pads, 6-bolt, tool-less reach adjust, 160mm
FRONT BRAKE
Mechanical disc, organic pads, 6-bolt, tool-less reach adjust, 160mm
DRIVETRAIN
SHIFT LEVERS
Shimano Tourney, Revo 7-speed
REAR DERAILLEUR
Shimano Tourney TX, 7-speed
CASSETTE
SunRace, 7-Speed, 11-34t
CRANKSET
Forged alloy, 127mm
CHAINRINGS
Steel, 30T
BOTTOM BRACKET
BSA, square taper
CHAIN
KMC Z51 EPT, anti-rust coating, 7-speed
WHEELS & TIRES
RIMS
20", double-wall aluminum
FRONT HUB
Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, QR, 32h
REAR HUB
Alloy, 6-bolt disc, 135mm spacing, 7-speed freehub, loose ball bearings, QR, 28h
SPOKES
Stainless, 14g
FRONT TIRE
Big Roller, 60 TPI, wire bead, 20x2.8"
REAR TIRE
Big Roller, 60 TPI, wire bead, 20x2.8"
INNER TUBES
Schrader valve
ACCESSORIES
PEDALS
Nylon platform w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 9 | |
|---|---|
| Crank Length | 127mm |
| Handlebar Width | 580mm |
| Stem Length | 60mm |
| Saddle Width | 135mm |
| Seatpost Length | 300mm |
| Rake | 40mm |
| Seat Tube Length, Center to Top | 279mm |
| Standover Height | 528mm |
| Reach | 306mm |
| Head Tube Length | 115mm |
| Head Tube Angle | 69° |
| BB Height | 237mm |
| BB Drop | 37.5mm |
| Chainstay Length | 390mm |
| Wheelbase | 909.5mm |
| Top Tube Length, Horizontal | 465mm |
| Seat Tube Angle | 73° |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
