2019 Men's Tarmac SL4 Sport
0 Reviews
The Tarmac SL4 Sport combines all of the complete performance that the Tarmac is…
Product Details
The Tarmac SL4 Sport combines all of the complete performance that the Tarmac is known the world over for with the durable shifting of Shimano's 105. Consider it the perfect bike to grow along with you as you explore the open roads ahead. Along the way, you'll also find a Grand-Tour-winning geometry, plus a FACT 9r carbon fiber construction.
For the spec, we selected components that deliver surefooted performance, like durable DT R460 wheels, crisp Shimano 105 mechanical shifting, and a bevy of Body Geometry components that maximize performance by providing the utmost in comfort.
The FACT 9r carbon frame combines the lightweight performance and compliance of our top-end carbon production methods with a Grand-Tour-winning geometry that begs for you to go faster.

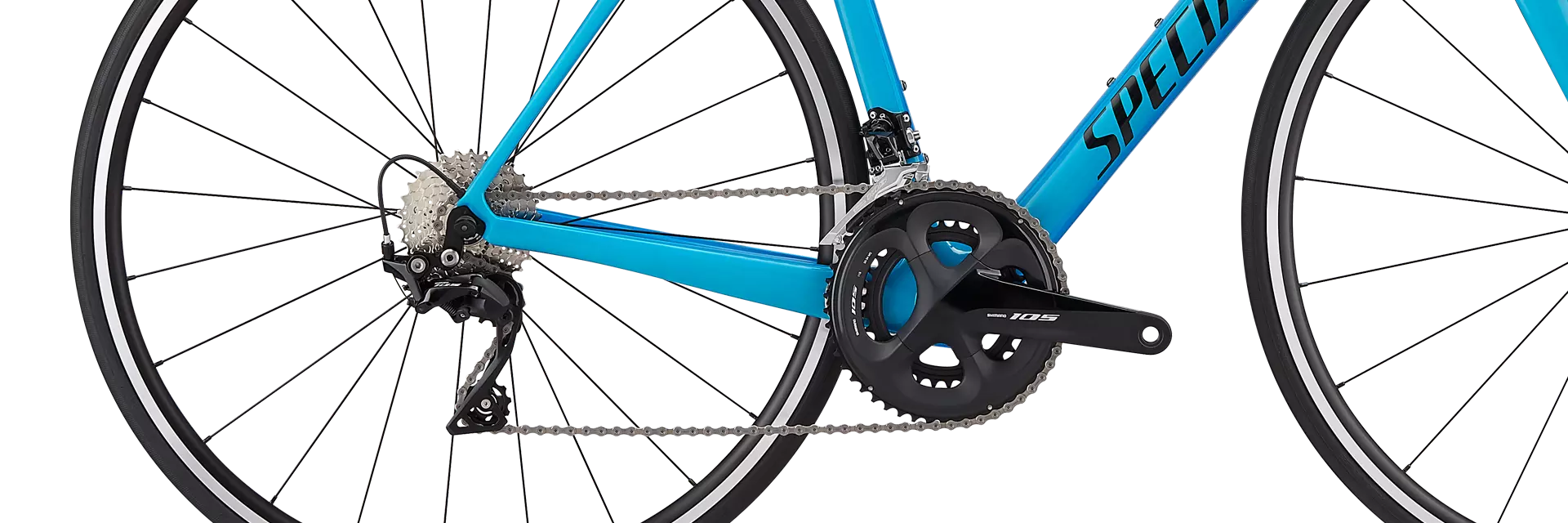

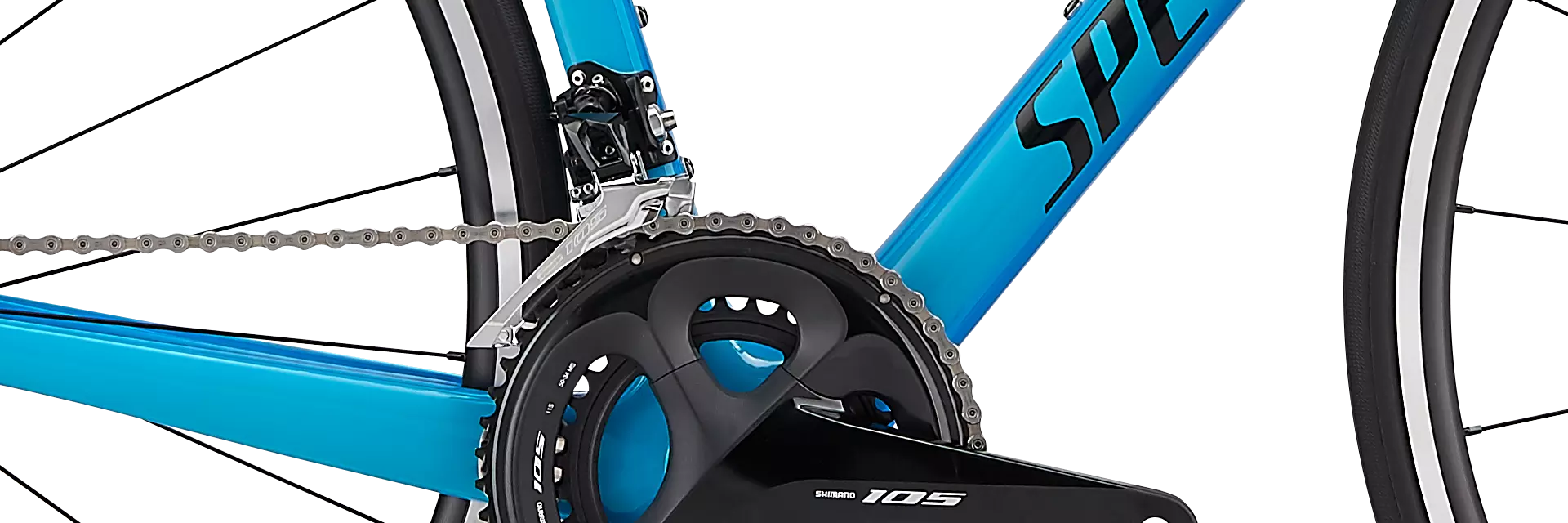

Shimano's 105 shifting ensures reliable, crisp shifting, mile after mile.

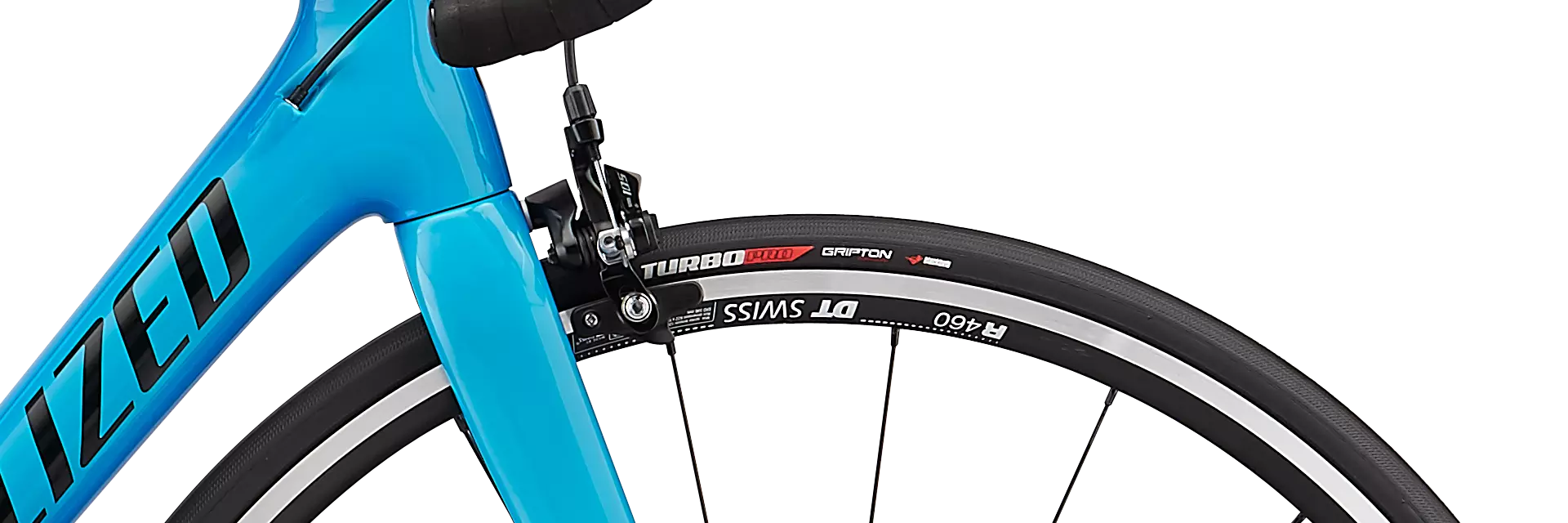

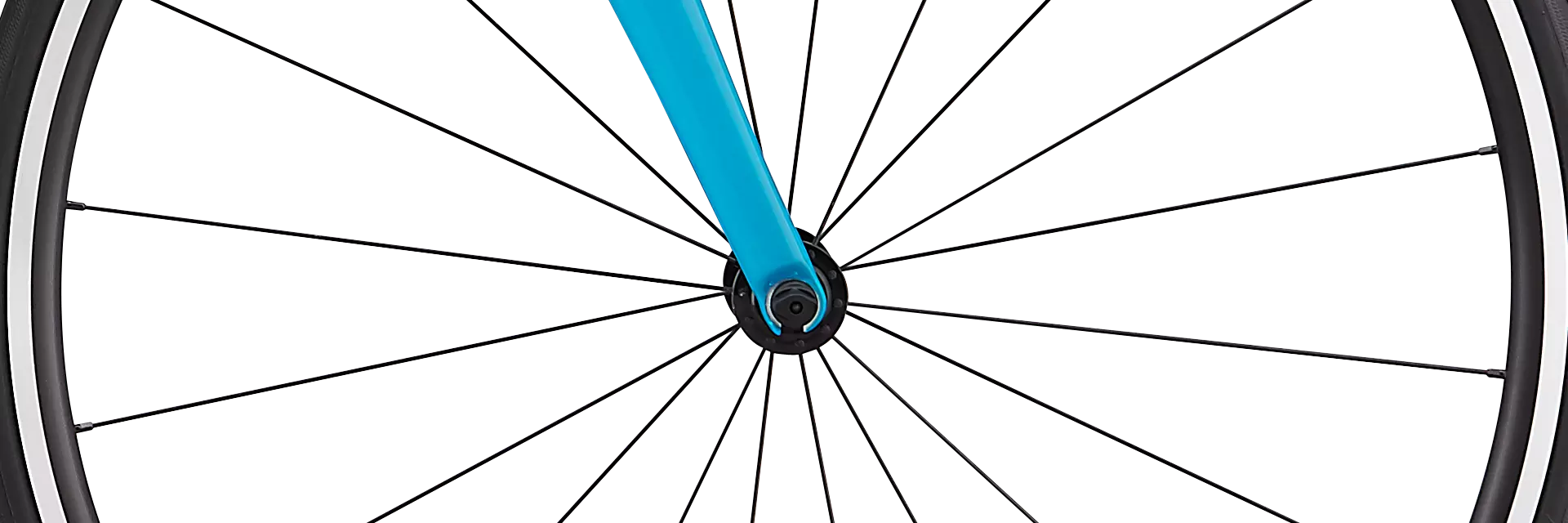

Significantly lighter than comparable wheelsets in its class, these tough DT R460 wheels offer tremendous value in one smooth-rolling package.
Technical Specifications
SUSPENSION
FORK
Specialized FACT carbon, full monocoque
COCKPIT
HANDLEBARS
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
STEM
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
TAPE
S-Wrap Roubaix w/ sticky gel
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
SEATPOST
Specialized Comp Carbon, single-bolt
SEAT BINDER
Alloy, 27.2mm
BRAKES
REAR BRAKE
Shimano 105 R7000
FRONT BRAKE
Shimano 105 R7000
DRIVETRAIN
SHIFT LEVERS
Shimano 105 R7000, 11-speed
FRONT DERAILLEUR
Shimano 105 R7000, braze-on
REAR DERAILLEUR
Shimano 105 R7000-GS, medium cage
CASSETTE
Shimano 105 R7000, 11-speed, 11-30t
CRANKSET
Shimano 105 R7000, HollowTech 2, 11-speed
CHAINRINGS
50/34T
BOTTOM BRACKET
Shimano Threaded BSA BB
CHAIN
KMC X11 EL, 11-speed w/ Missing Link™
WHEELS & TIRES
FRONT WHEEL
DT R460, sealed cartridge hubs, 14g spokes, 20h
REAR WHEEL
DT R460, sealed cartridge hubs, 14g spokes, 24h
FRONT TIRE
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x24mm
REAR TIRE
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x24mm
INNER TUBES
Presta, 48mm valve
FRAMESET
FRAME
Specialized Tarmac SL4, FACT 9r carbon, compact race design, 1-3/8" lower bearing, threaded BB, 130mm spacing
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Stack | 505mm | 526mm | 543mm | 564mm | 591mm | 612mm |
| Reach | 386mm | 386mm | 387mm | 395mm | 402mm | 408mm |
| Head Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Head Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 270mm | 270mm | 272.5mm | 272.5mm | 274mm | 274mm |
| BB Drop | 72mm | 72mm | 69mm | 69mm | 68mm | 68mm |
| Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Length, Full | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 575mm | 576mm | 582mm | 591mm | 607mm | 614mm |
| Chainstay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Wheelbase | 970mm | 970mm | 977mm | 987mm | 1004mm | 1014mm |
| Top Tube Length, Horizontal | 517mm | 537mm | 548mm | 565mm | 583mm | 601mm |
| Bike Standover Height | 730mm | 755mm | 775mm | 795mm | 826mm | 850mm |
| Seat Tube Length | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Seat Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
