Looking for a bike that soars as well as it sprints? Look no further than the Epic…

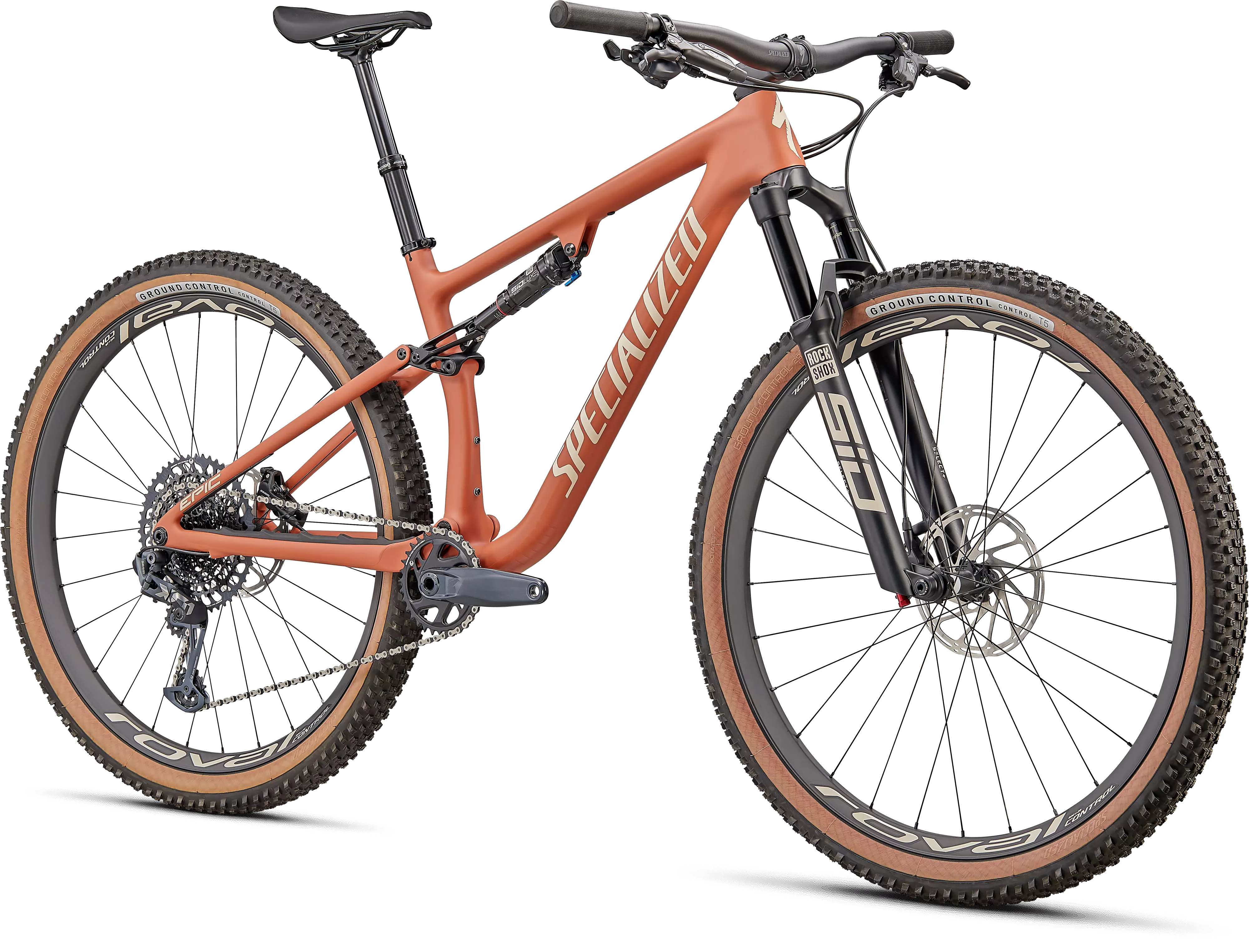

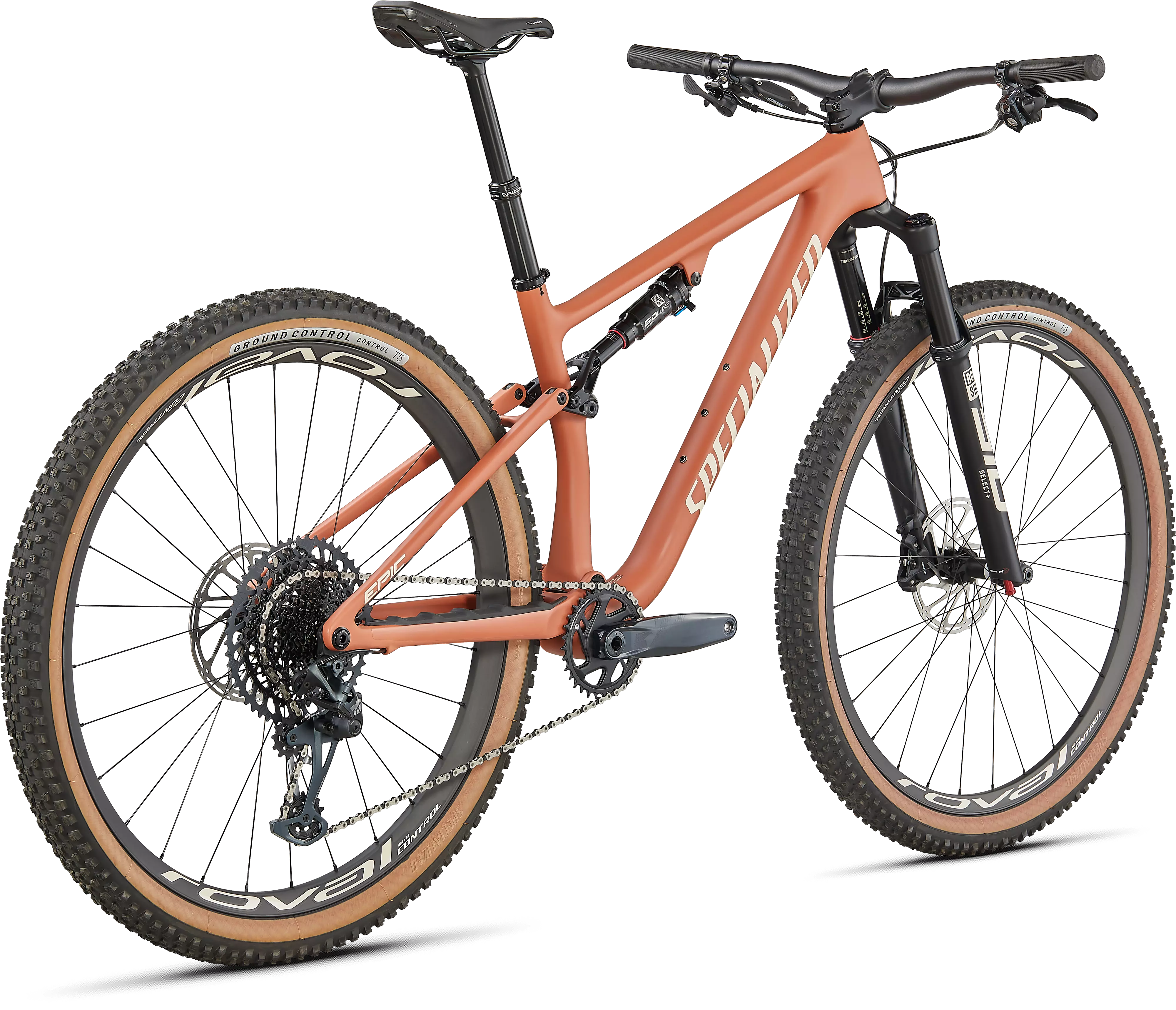

Looking for a bike that soars as well as it sprints? Look no further than the Epic EVO Expert.
Wheels up or head down, the Epic EVO Expert’s masterful blending of inspired handling, capable geometry and laser-focused pedaling efficiency makes sure no rider ever has to make the decision between fast and fun.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.

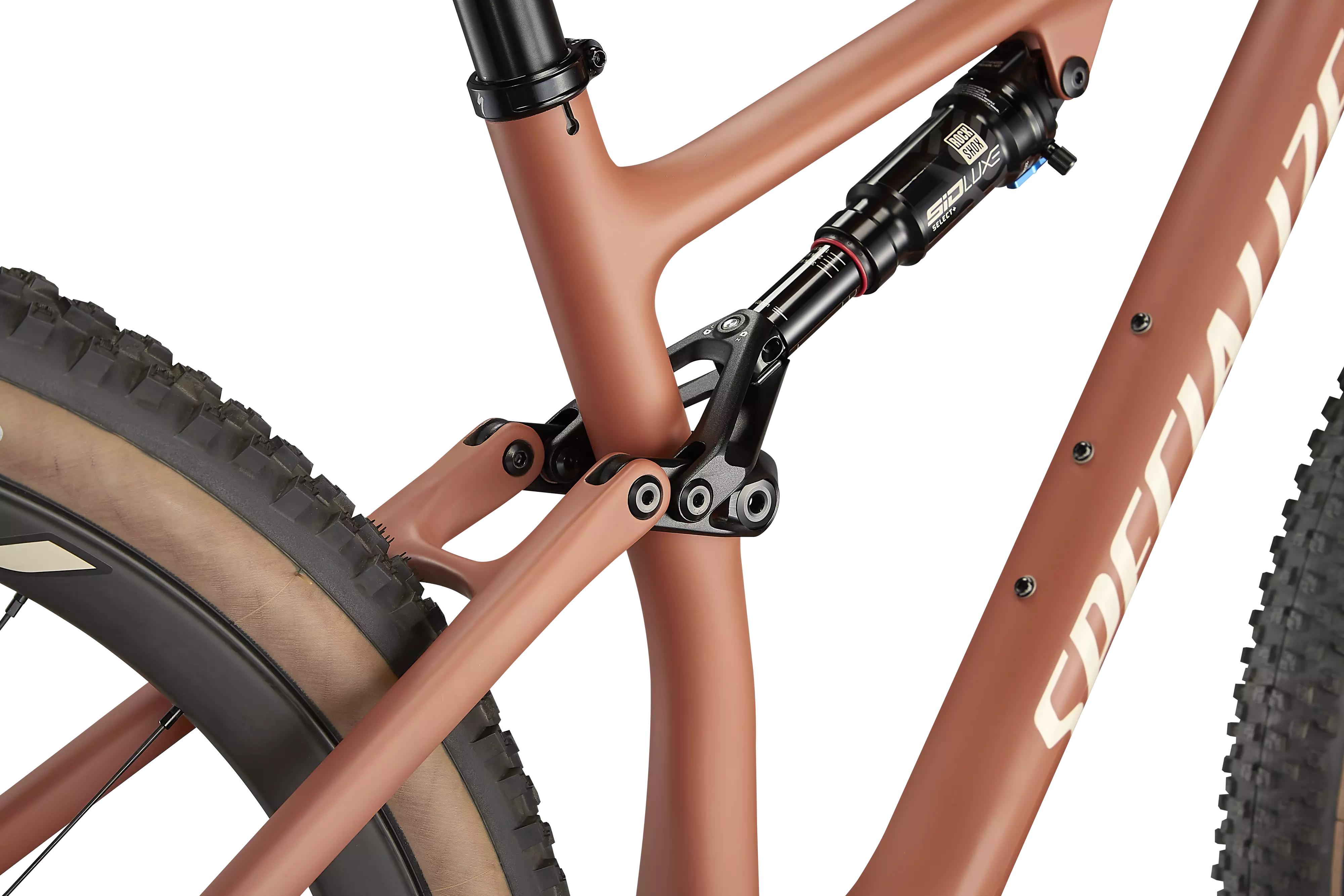

Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.
SRAM's high-flying X01 Eagle group handles shifting duties, while RockShox's SID Select+ is firmly in charge of takeoffs and landings with it's capable Charger 2 RL damper.
Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
Suspension up front comes courtesy of RockShox's SID Select+ 120-millimeter fork, featuring their Charger 2 RL Damper with two-postion compression adjustment for impressive pedaling efficiency while the DebonAir spring offers easy tuning and consistent feel throughout the entire range of travel.
X-Fusion's Manic dropper post offers infinitely adjustable travel via it's slick shifter-stye remote lever for hassle-free operation when things get dicey.
Descending from a long World Cup lineage, hand-built Roval Control Carbon wheels feature a modern 29-millimeter internal-width hookless rim, and maximize strength, ride quality, and durability while keeping weight to a minimum.
Frame
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
SWAT
SWAT EMT Cage-Mount Tool
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Rear Shock
RockShox SID LUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm
Fork
Rockshox SID Select+, Charger 2 RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel
SeatPost
SEAT POST, A-PRO, MANIC, 22-XPMCMOP-100/125/150-011,FORGED,6066-T6 ,2-BOLT,30.9, 100/125/150 TRAVEL, OFFSET 0MM,310/361/425MM,SCM435,ZINC FINISH BOLT
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips

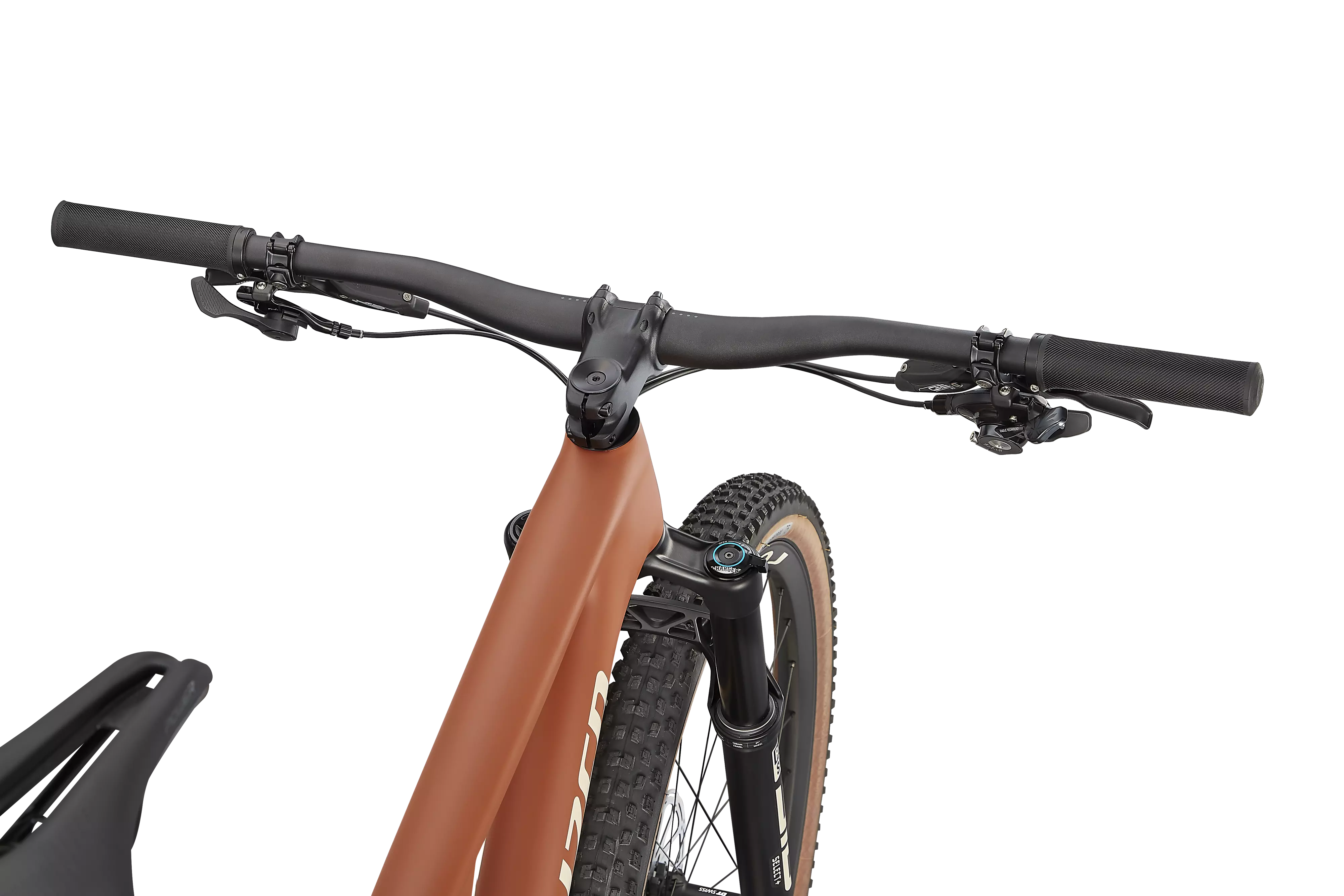

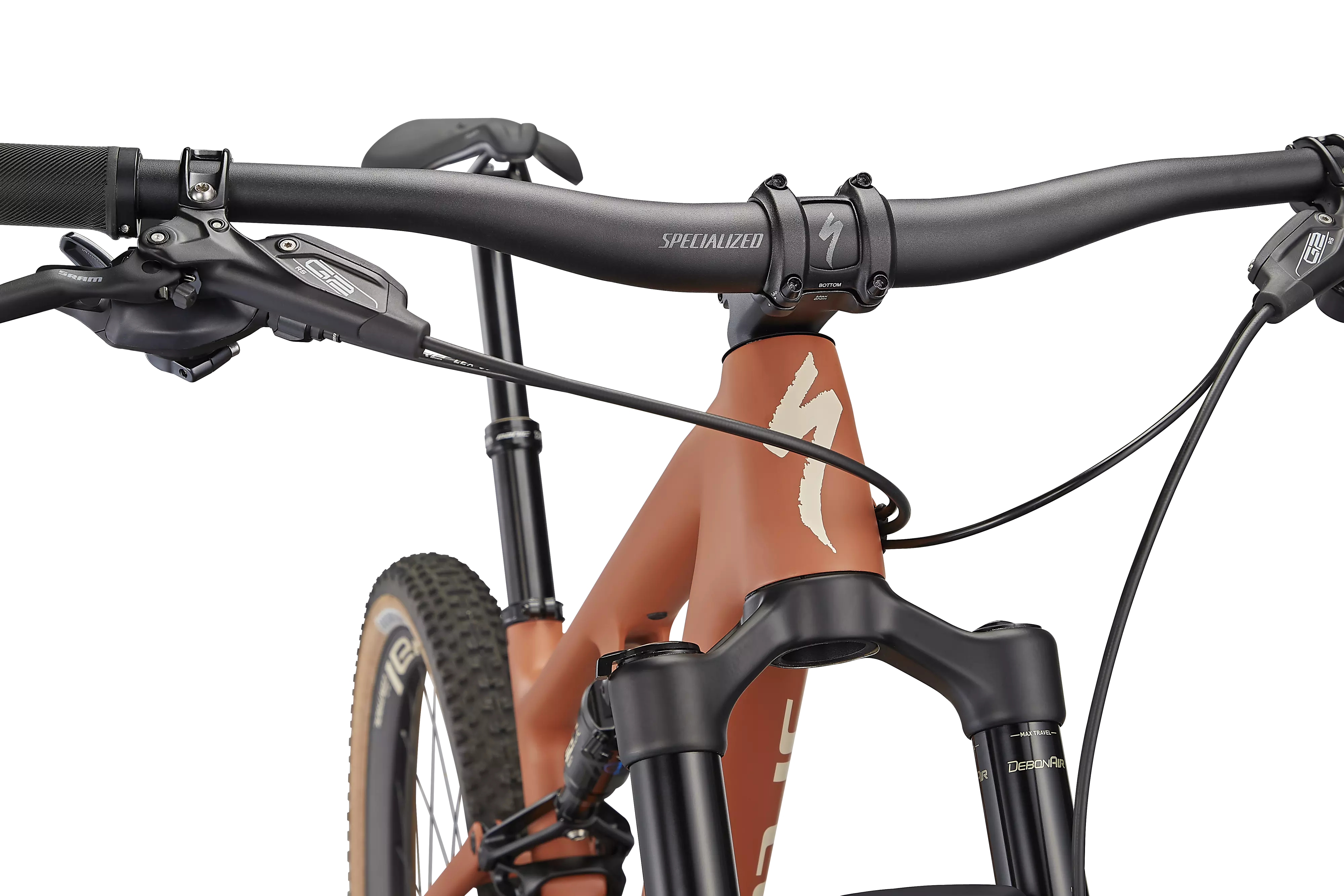

Handlebars
Specialized Alloy, 20mm rise, 35mm, 760mm wide
Saddle
Body Geometry Power Sport, steel rails
Front Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Derailleur
Sram X01 Eagle, 12-speed
Shift Levers
SRAM X01 Eagle, trigger, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Chain
SRAM GX Eagle, 12-speed
Crankset
SRAM X1 Eagle Alloy, DUB, 165/170/175mm, 32t
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Rims
Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h
Front Hub
DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull
Rear Hub
DT Swiss 350 straight-pull, 6-bolt, DT Swiss Star Ratchet, 12x148mm thru axle, XD freehub body, 28h straight-pull
Spokes
DT Swiss Comp Race
Front Tire
Specialized Ground Control, Control Casing, T5 Compound, 29x2.35
Rear Tire
Specialized Ground Control, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube 29X1.75-2.4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
Wheelbase | 1106mm | 1132mm | 1164mm | 1194mm | 1227mm |
Reach | 406mm | 436mm | 460mm | 485mm | 380mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Seat Tube Length | 375mm | 400mm | 430mm | 470mm | 520mm |
Trail | 114mm | 114mm | 114mm | 114mm | 114mm |
Fork Length, Full | 530mm | 530mm | 530mm | 530mm | 530mm |
Front Center | 672mm | 697mm | 729mm | 759mm | 792mm |
Bike Standover Height | 760mm | 779mm | 781mm | 793mm | 804mm |
Stack | 603mm | 593mm | 597mm | 611mm | 629mm |
BB Height | 326mm | 336mm | 336mm | 336mm | 336mm |
Chainstay Length | 438mm | 438mm | 438mm | 438mm | 438mm |
Top Tube Length, Horizontal | 536mm | 567mm | 602mm | 629mm | 659mm |
BB Drop | 46mm | 36mm | 36mm | 36mm | 36mm |
Seat Tube Angle | 75.5° | 74.8° | 74.5° | 74.5° | 74.5° |
Head Tube Length | 95mm | 95mm | 100mm | 115mm | 135mm |
