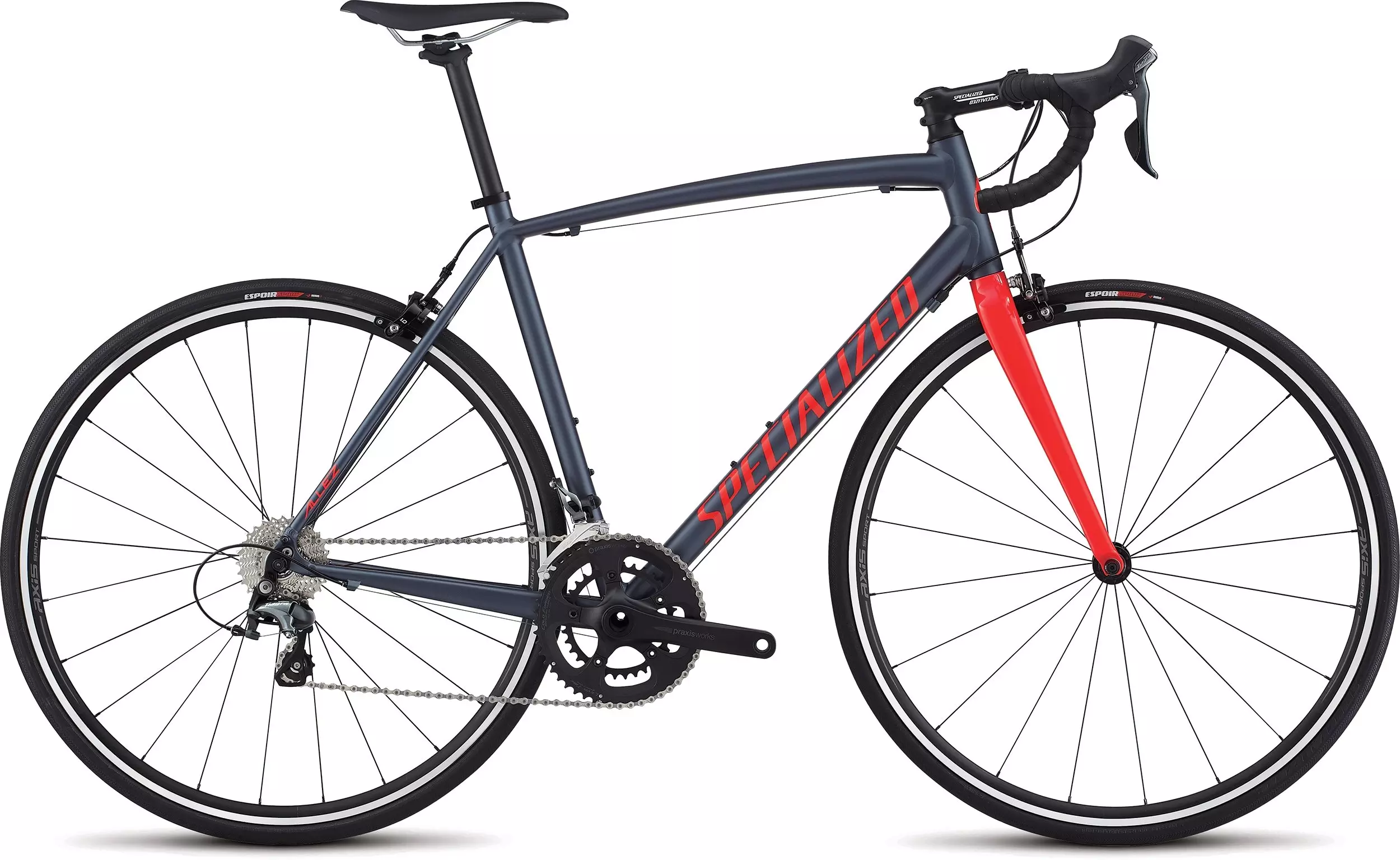

2017 Allez E5 Elite

5

3 Reviews

There's no denying it, we're still in love with aluminium road bikes. And when it…

Product Details

Add Icon

There's no denying it, we're still in love with aluminium road bikes. And when it comes to transforming this passion into a labor of love, we make a bike like the Allez E5 Elite. It's constructed from our lightweight and ultra-stiff E5 Premium aluminium to ensure that you get those most out of every watt that your legs can produce. More so, this construction makes for a bike that's equally capable for the road ahead, so you'll find it performing exceptionally on climbs, descents, and all-out sprints. Even better, these characteristics are all amplified by the Elite's exquisite & confident geometry and FACT carbon fibre fork. For the build, we went with a no-nonsense approach, opting for a Shimano Tiagra groupset, a stiff Praxis Alba crankset, and durable Axis sport alloy wheels.

  • E5 Premium aluminium frame features fully manipulated tubing with smooth welds that increase stiffness and efficiency, while looking just as good as it performs.

  • A FACT carbon fibre fork provides incredible stiffness and front end steering response, while also efficiently absorbing road chatter.

  • Shimano Tiagra 10-speed shifting is precise, reliable, and ready for years of hard riding.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized E5 Premium Aluminum, fully-manipulated tubing w/smooth welds, 1-1/8"" lower bearing

FORK

FACT carbon fiber

SEAT BINDER

Alloy, 31.8mm

WHEELS

FRONT WHEEL

Axis Sport

REAR WHEEL

Axis Sport

FRONT TIRE

Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection

REAR TIRE

Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection

INNER TUBES

700x20/28mm, 40mm Presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Tiagra STI, 10-speed

FRONT DERAILLEUR

Shimano Tiagra, clamp-on

REAR DERAILLEUR

Shimano Tiagra 4700, 10-speed

CASSETTE

Shimano Tiagra, 10-speed, 12-28t

CHAINRINGS

50/34T

CRANKSET

Praxis Alba

BOTTOM BRACKET

Praxis

CHAIN

KMC X10, 10-speed w/reusable MissingLink

COCKPIT

HANDLEBARS

Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach

STEM

Specialized, 3D forged alloy, 4-bolt, 7-degree rise

TAPE

Specialized S-Wrap

SADDLE

Body Geometry Toupé Sport, steel rails, 143mm

SEATPOST

Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm

BRAKES

REAR BRAKE

AXIS 1.0

FRONT BRAKE

AXIS 1.0

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length80mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length300mm300mm350mm350mm350mm350mm
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length100mm120mm145mm170mm205mm230mm
Head-Tube Angle72.25°73°73°73.5°73.5°74°
Chain-Stay Length405mm407mm407mm407mm410mm410mm
Front-Center578mm578mm585mm593mm607mm613mm
B-B Drop72mm72mm69mm69mm68mm68mm
B-B Height270mm270mm272.5mm272.5mm274mm274mm
Bike Stand-Over Height736mm759mm783mm805mm834mm860mm
Fork Length (full)369mm369mm369mm369mm369mm369mm
Top-Tube Length (horizontal)518mm538mm549mm565mm582mm600mm
Seat-Tube Length460mm490mm510mm530mm550mm580mm
Stack505mm527mm548mm574mm606mm632mm
Reach387mm387mm387mm392mm397mm401mm
Trail62mm57mm57mm54mm54mm51mm
Fork Rake/Offset45mm45mm45mm45mm45mm45mm
Wheelbase972mm974mm982mm990mm1008mm1014mm
