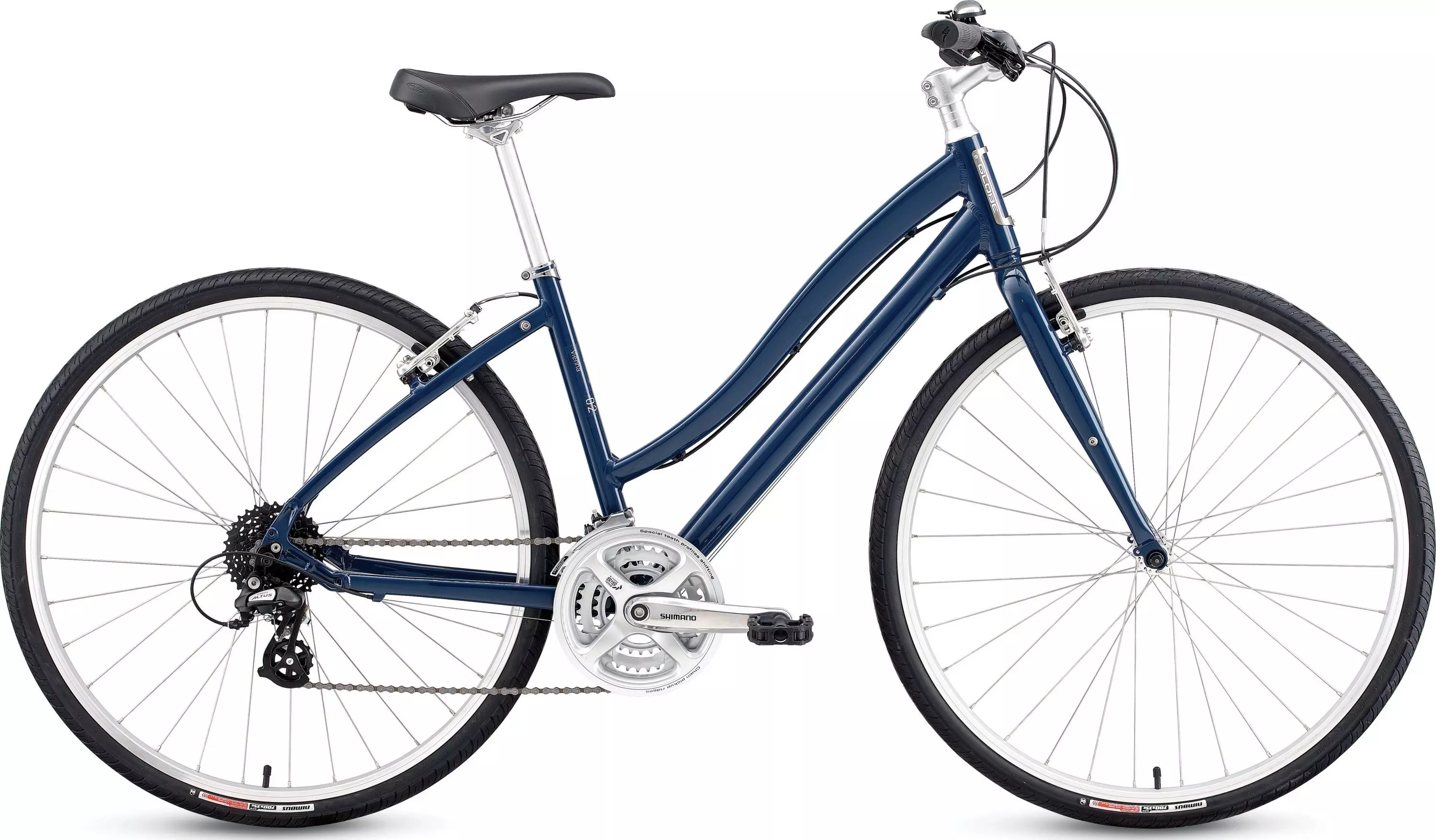

2010 Vienna 2 Step Through

0 Reviews

The VIENNA is designed for riders who need a simple and functional bike for their…

Product Details

The VIENNA is designed for riders who need a simple and functional bike for their day to day pursuits. This bike is your ticket to painless commuting or a quick fitness fix.

Steel fork is simple and durable
Women's Body Geometry Comfort grips alleviate hand pain and tingling fingers
Women's Body Geometry Fitness saddle with front and rear bumpers for long-haul durability
City-tough and smooth-rolling Specialized Nimbus 700c tires with Flak Jacket puncture protection
Triple-chainring Shimano crankset and Acera 8-speed rear derailleur provide ample gearing for hills and straights, while protecting your street clothes
Globe A1 Premium Aluminum frame features women's geometry and low standover for easy stop and go, plus fender/rack braze-ons and a kickstand mount for versatility

Technical Specifications

FRAMESET

FRAME

Globe A1 Premium Aluminum trekking design, step through geometry, fully manipulated custom tubing w/ fender and rack braze-ons, integrated kickstand mount

FORK

Globe Vienna straight-blade steel fork

HEADSET

1-1/8"" threadless, integrated, semi-cartridge campy style bearings

SEAT BINDER

Globe Chevron forged alloy, chrome plated

WHEELS

REAR HUB

Forged alloy, double sealed, ground race, cassette, QR, 32h

SPOKES

1.8mm (15g) stainless

FRONT TIRE

Specialized Nimbus, 700x35c, 60TPI, w/ Flak Jacket protection

REAR TIRE

Specialized Nimbus, 700x35c, 60TPI, w/ Flak Jacket protection

INNER TUBES

Schraeder valve

RIMS

Globe 700c, double wall, 32h w/CNC side wall

FRONT HUB

Forged alloy, double sealed, ground race, QR, 32h

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano Acera, 8-speed

SHIFT LEVERS

Shimano, ST-EF-50, 8-speed, EZ fire plus

CASSETTE

SRAM PG-820, 8-speed, 11-32t

CHAIN

KMC Z7 w/ reuseable Missing Link

CRANKSET

Shimano FC-M191, w/ chainguard

CHAINRINGS

48 x 38 x 28t w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

STEM

Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp

HANDLEBARS

Alloy riser bar, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up

TAPE

Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm

SADDLE

Specialized Body Geometry Fitness women's, front and rear bumpers, 155mm width

SEATPOST

Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Alloy linear pull, 1pc. pad

BRAKE LEVERS

Shimano (integrated w/ shifter)

ACCESSORIES

PEDALS

Globe City, Body Geometry, composite w/rubber top, 1.5mm varus wedge

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	W-SM	W-MD	W-LG	W-XL
Seat-Tube Angle	74.5°	74°	73.5°	73°
Head-Tube Length	126mm	146mm	166mm	186mm
Seat-Post Length	0mm	0mm	0mm	0mm
Head-Tube Angle	69.5°	69.5°	70°	70.5°
Chain-Stay Length	455mm	455mm	455mm	455mm
Top-Tube Length, Horizontal	540mm	555mm	570mm	585mm
Front-Center	627mm	638mm	644mm	649mm
Stand-Over Height	584mm	578mm	571mm	565mm
Seat-Tube Length, B-B Center to Top	385mm	435mm	485mm	535mm
Fork Rake	51mm	51mm	51mm	51mm
B-B Drop	65mm	65mm	65mm	65mm
Trail	78mm	78mm	74mm	71mm
Wheelbase	1074mm	1085mm	1091mm	1096mm
