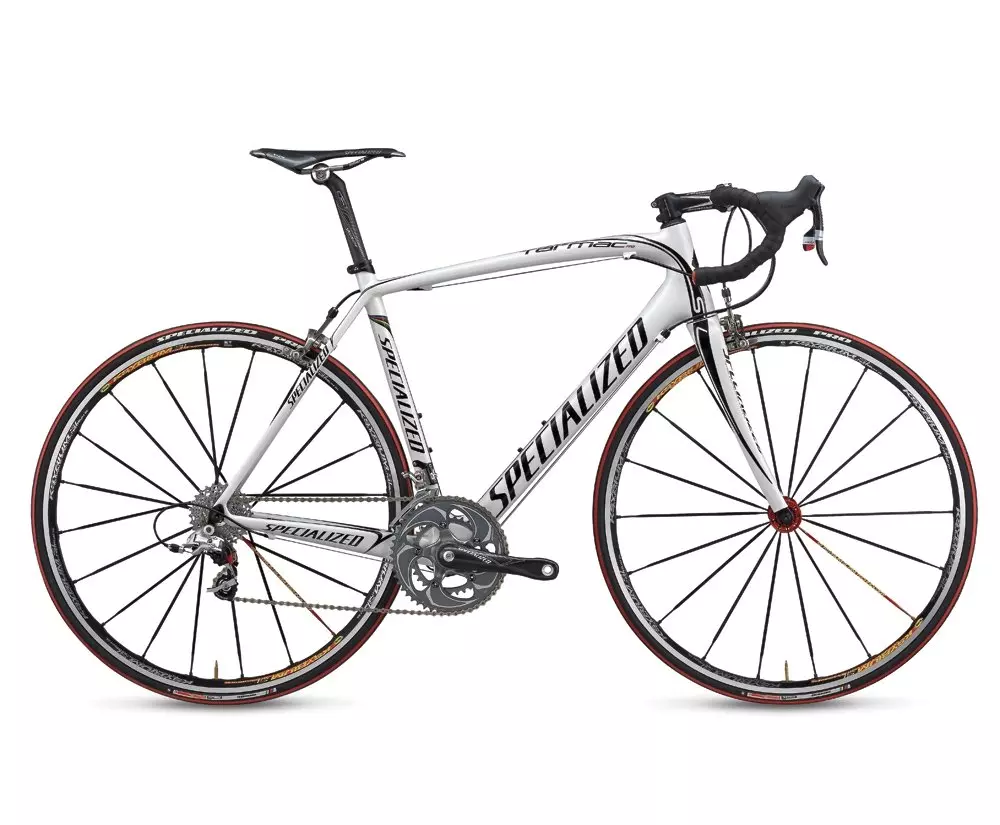

2009 Tarmac Pro SL Compact SRAM

0 Reviews

FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be…

Product Details

Add Icon

FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter and stiffer.

  • The Tarmac Pro SL, built with FACT 10r carbon using our FACT IS construction, features our compact race design with an oversized BB. The result is a supremely lightweight, incredibly efficient frame.

  • The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.

  • The 3D-forged Pro-Set stem features an oversized bar-clamp area for sure, precise steering.

  • The S-Works SL FACT carbon handlebar is stiff, strong, and light weight.

  • The Specialized FACT Pro carbon crankset provides incredible pedaling efficiency, and mates perfectly with the oversized BB of the Tarmac Pro SL frame.

  • The scientifically proven Body Geometry Toupé, with carbon reinforced base and hollow Ti rails, is easy on your soft parts.

  • The Pro SL seatpost uses our FACT carbon construction for lightweight strength. The integrated Zertz insert absorbs energy-robbing vibrations.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized FACT 10r carbon, FACT IS construction, compact race design, 1.5"" lower HS bearing, OS BB

FORK

Specialized Pro FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer

HEADSET

Specialized Campy style, 1.5"" lower bearing, integrated threadless, stainless steel sealed cartridge bearings, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

Specialized CNC alloy, 32.6mm

WHEELS

FRONT TIRE

Specialized Mondo Pro, 700x23c, aramid bead, 120TPI, Flak Jacket

REAR TIRE

Specialized Mondo Pro, 700x23c, aramid bead, 120TPI, Flak Jacket

INNER TUBES

Specialized standard presta tube

RIMS

Mavic Ksyrium SL

FRONT HUB

Mavic Ksyrium SL

REAR HUB

Mavic Ksyrium SL

SPOKES

Zicral, bladed

DRIVETRAIN

FRONT DERAILLEUR

SRAM Force, braze-on clamp

REAR DERAILLEUR

SRAM Red

SHIFT LEVERS

SRAM Red Double Tap

CASSETTE

SRAM OG1070, 10-speed 11-28t

CHAIN

SRAM 1090R, 10-speed

CRANKSET

Specialized FACT Pro carbon, integrated oversize design

CHAINRINGS

50 x 34t

BOTTOM BRACKET

Specialized oversize integrated

COCKPIT

STEM

Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable

HANDLEBARS

S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm

TAPE

Body Geometry Bar Phat, cork ribbon w/ neoprene padding

SADDLE

Body Geometry Toupé, super light foam, carbon reinforced base, hollow Ti rails

SEATPOST

Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm

BRAKES

FRONT BRAKE

SRAM Force

REAR BRAKE

SRAM Force

BRAKE LEVERS

SRAM Red Double Tap

ACCESSORIES

PEDALS

Silver cage, black body, w/ toe clip and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Ground-Top71.5mm71.5mm69mm69mm67.5mm67.5mm
Seat-Tube Angle57°62°57°56°53°56°
Head-Tube Angle576°576°583°591°605°612°
Chain-Stay Length45mm45mm45mm43mm43mm43mm
Top-Tube Length, Horizontal74mm75.5mm73.5mm73.25mm72.5mm73mm
Front-Center100mm120mm145mm170mm205mm230mm
Handle-Bar Width0mm0mm0mm0mm0mm0mm
Seat-Tube Length, B-B Center to Top405mm405mm405mm405mm407mm410mm
Fork Rake970mm970mm978mm986mm1003mm1013mm
B-B Drop72.25mm73mm73mm73.5mm73.5mm74mm
Stack460mm490mm510mm530mm550mm580mm
Reach518mm537mm548mm565mm582mm600mm
Trail730mm755mm777mm800mm828mm857mm
Geometry
