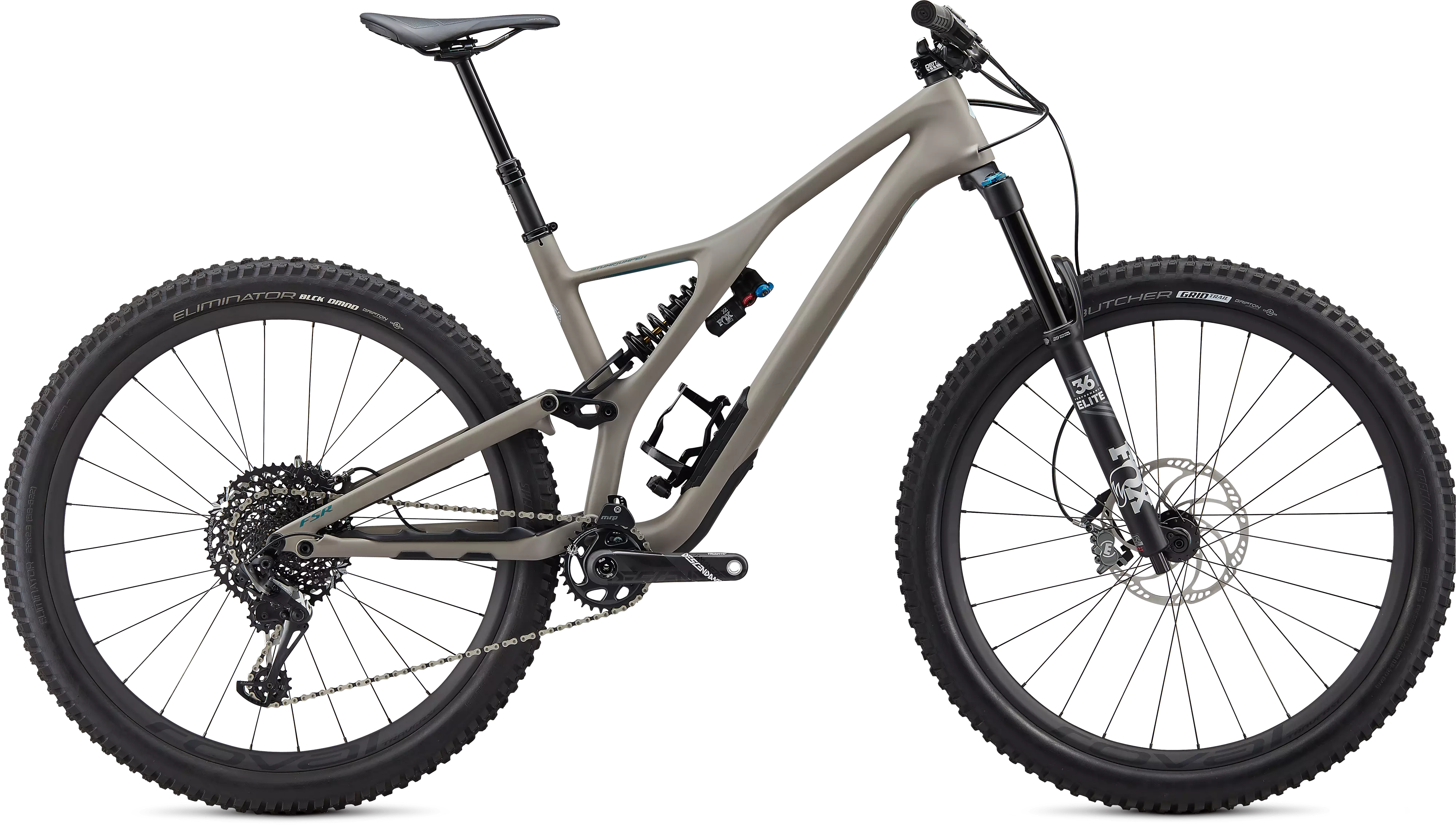

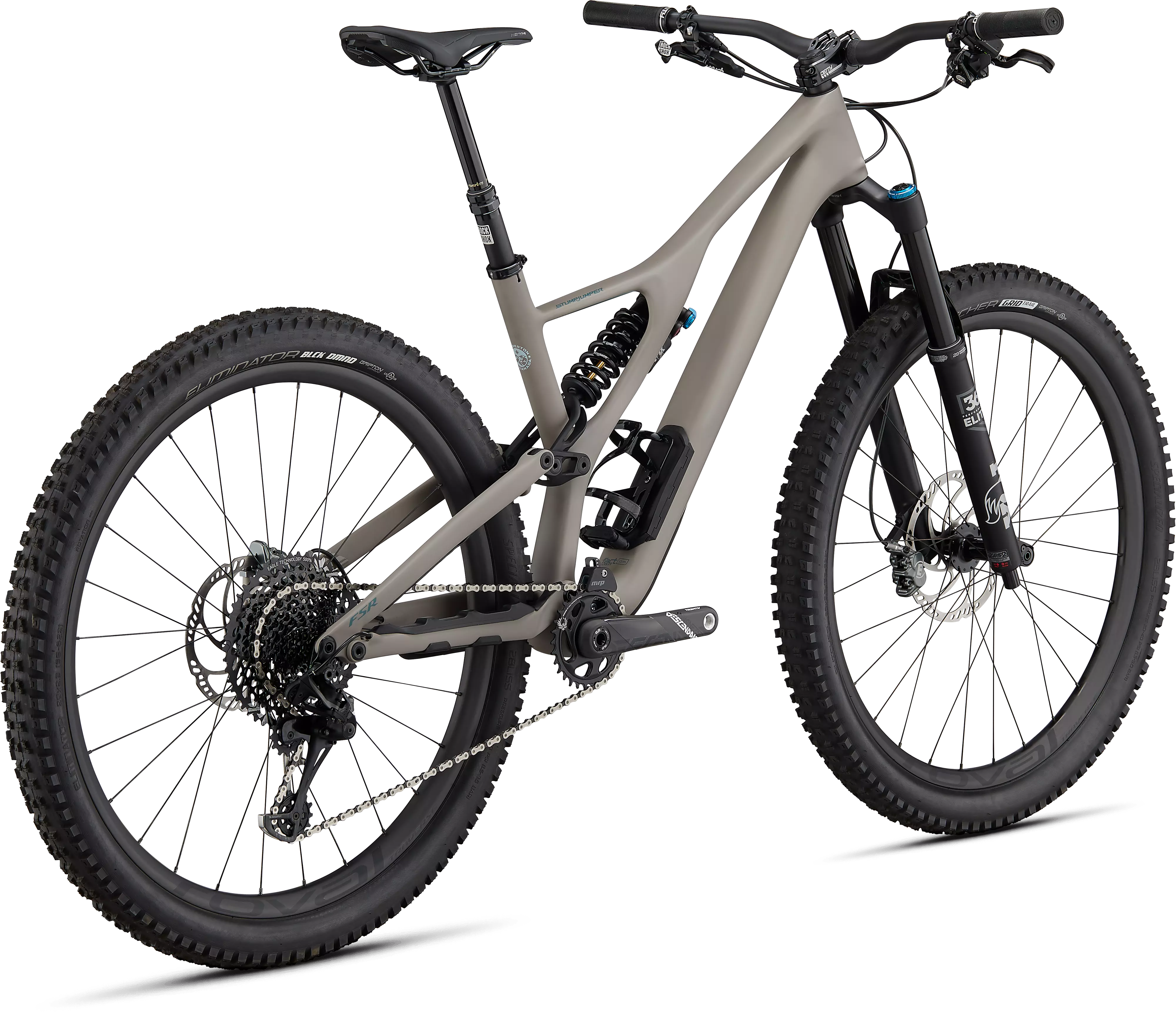

2020 Stumpjumper Pemberton LTD Edition 29
$7,520
4.7
3 Reviews
This is our love song—a rowdy, carbon-clad love song—to Pemberton, BC, one of the…
Product Details
This is our love song—a rowdy, carbon-clad love song—to Pemberton, BC, one of the best riding spots in the world. This limited-edition, chassis pairs slack, long and low geometry with 150mm of deep and progressive suspension. It's a featherweight brawler. In celebration of the trails that inspired this Stumpjumper's unique build, we're donating a portion of the proceeds from every one of these bikes to the Pemberton Valley Trails Association, whose good work continues to grow Pemberton's world-class singletrack network.
ONE FRAME, ANY TRAIL
The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we've increased both stiffness and performance over bumps.
LIGHTWEIGHT, CAPABLE...AND STUNNING
Our carbon chassis melds 140mm of custom-tuned suspension with smart features, including our integrated SWAT™ box downtube storage and painless cable routing. No proprietary bullshit and a threaded bottom bracket also mean that this frame is 100% hassle free.
THE PERFECT BUILD
• Limited-edition, carbon chassis is stiff, precise, and capable.
• FOX 36 FLOAT Performance Elite fork devours roots, rocks and anything in its path.
• FOX FLOAT DHX2 Performance Elite rear shock boasts stellar big-hit performance.
Technical Specifications
Frameset
Frame
FACT 11m, full carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel
Seat Binder
Specialized bolt-type, alloy, 38.6mm
Suspension

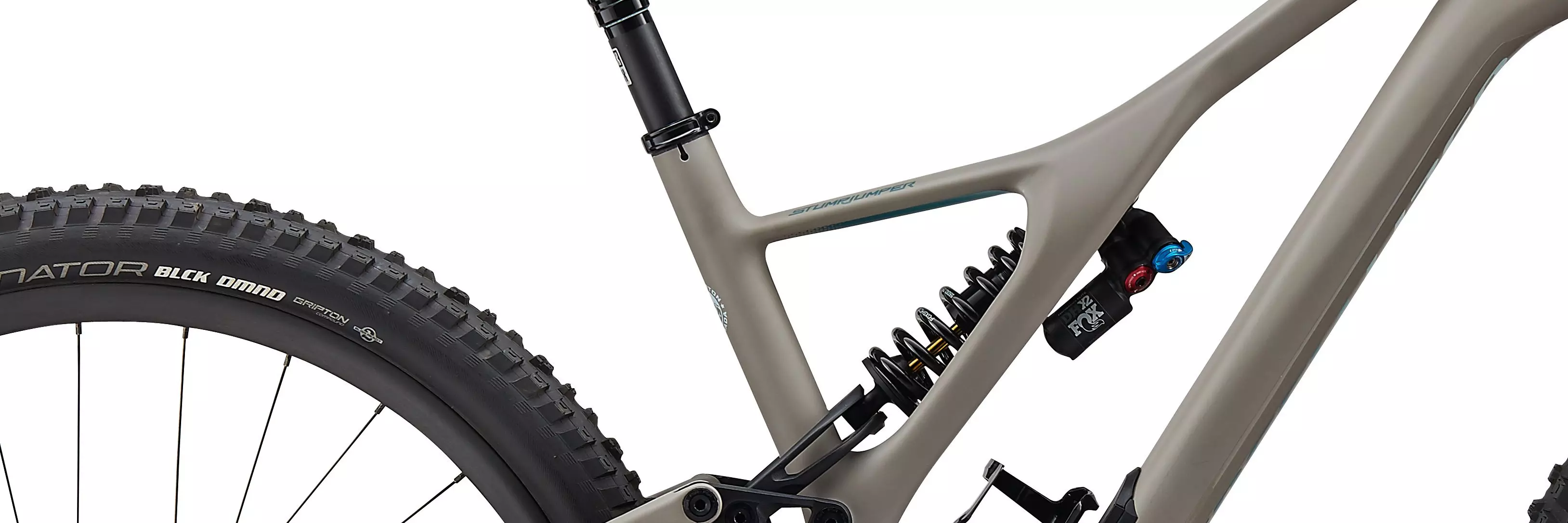

Rear Shock
FOX DHX2 Performance Elite, Rx Trail Tune, 2-position lever, 210x50mm, SM-450lb spring, MD-500lb spring, LG-550lb spring, XL-600lb spring
Cockpit
Saddle
Body Geometry Henge Expert, hollow titanium rails, carbon fiber base, 143mm
SeatPost
RockShox Reverb Stealth, 30.9, 1X remote, (S: 125mm, M: 150mm, L/XL:175mm)
Stem
Deity, 31.8mm
Grips
Deity, Knuckleduster, Black
Handlebars
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
Brakes
Front Brake
Magura MT7, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
Magura MT7, 4-piston caliper, hydraulic disc, 180mm

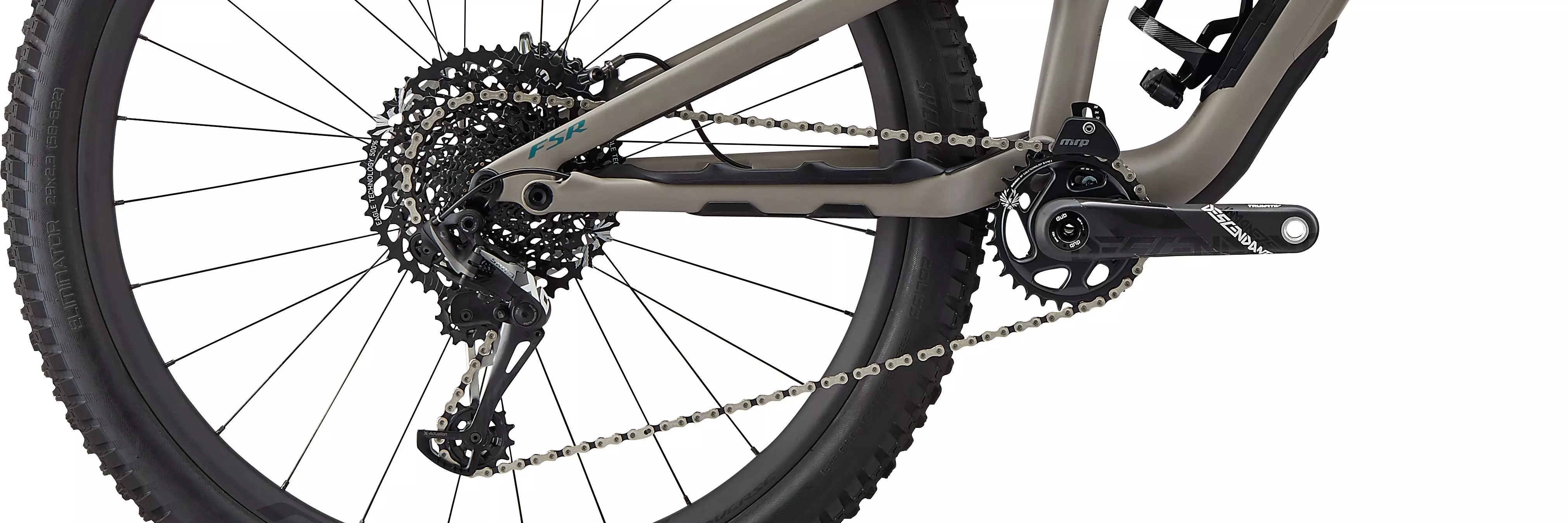

Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1275 Eagle, 12-speed, 10-50t
Shift Levers
SRAM X01 Eagle, trigger, 12-speed
Chain
SRAM GX Eagle, 12-speed

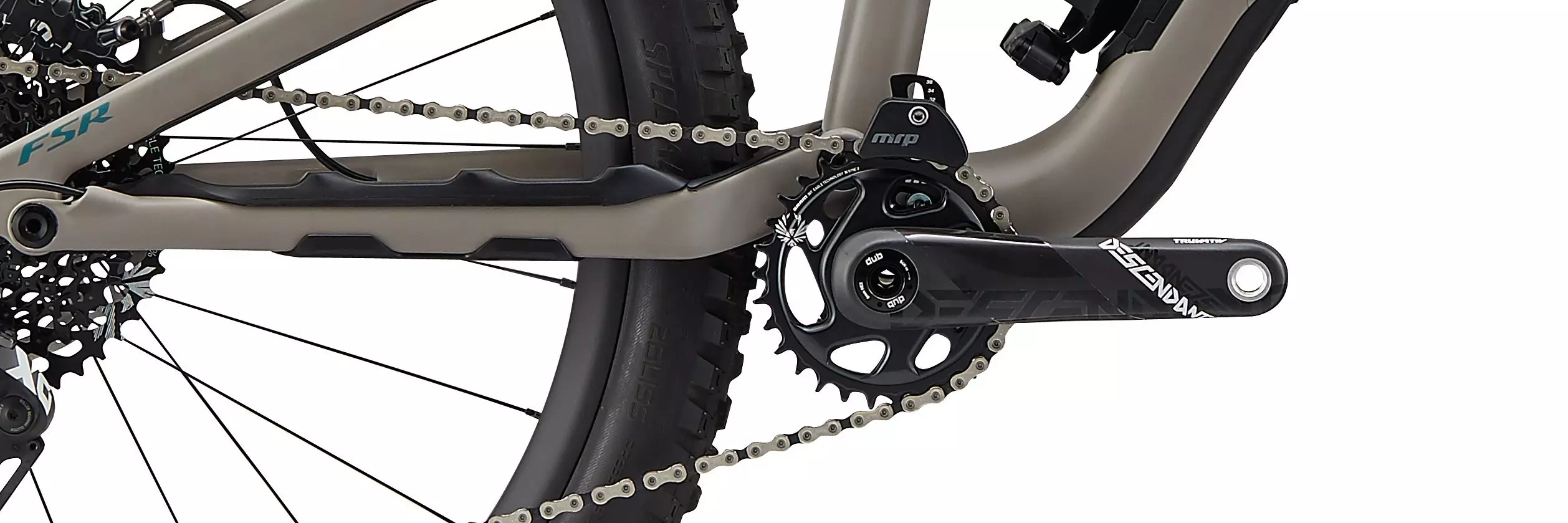

Crankset
SRAM XX1 Eagle, Boost™ 148, DUB, 170mm crankarm
Chainrings
30T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Wheels & Tires
Rims
Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes
DT Competition Race
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3"
Inner Tubes
Standard, Presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 35mm | 50mm | 50mm | 50mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 175mm | 175mm |
| Stack | 614mm | 614mm | 641mm | 656mm |
| Reach | 405mm | 425mm | 445mm | 470mm |
| Head Tube Length | 95mm | 95mm | 125mm | 140mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 342mm | 342mm | 342mm | 342mm |
| BB Drop | 33mm | 33mm | 33mm | 33mm |
| Trail | 107mm | 107mm | 107mm | 107mm |
| Fork Length, Full | 560mm | 560mm | 560mm | 560mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm |
| Front Center | 714mm | 734mm | 766mm | 797mm |
| Chainstay Length | 437mm | 437mm | 437mm | 437mm |
| Wheelbase | 1149mm | 1169mm | 1201mm | 1232mm |
| Top Tube Length, Horizontal | 572mm | 595mm | 628mm | 662mm |
| Bike Standover Height | 747mm | 750mm | 762mm | 775mm |
| Seat Tube Length | 380mm | 410mm | 455mm | 505mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.1° | 73.7° |
