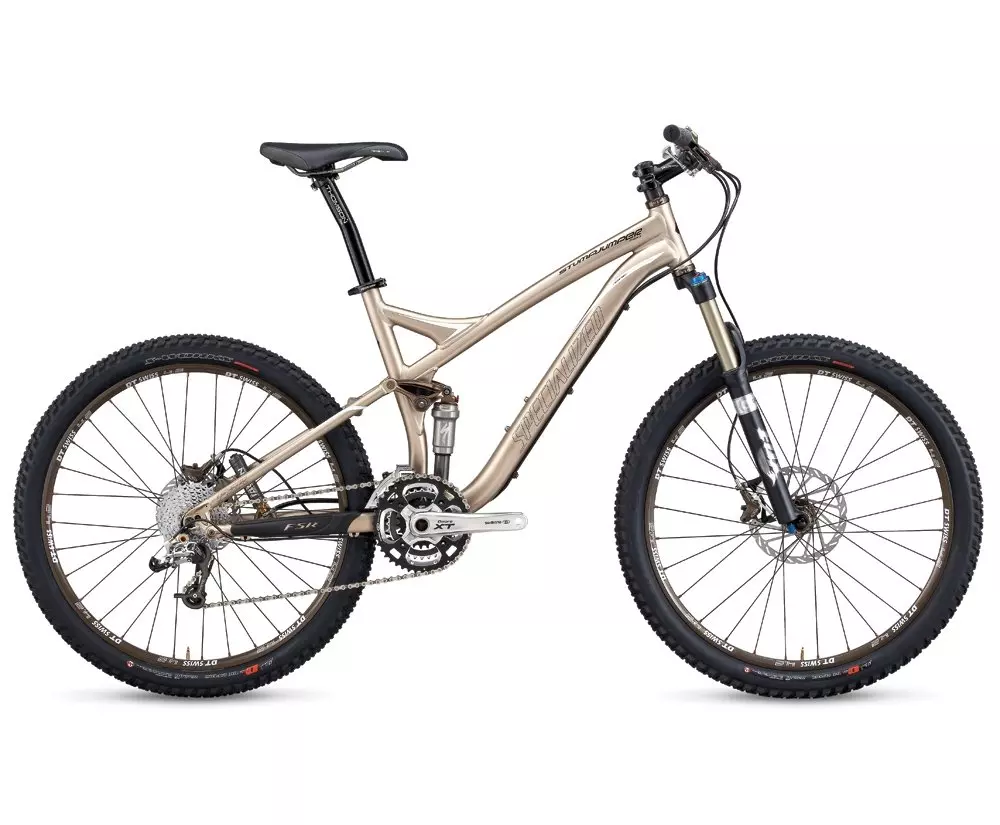

2009 Stumpjumper FSR Pro

0 Reviews

STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything…

Product Details

STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything and everything, 'make you an addict if you weren't one already' full suspension mountain bike with miles upon mile of trail-tuned flow.

Designed by Ned Overend, our dual-compound S-Works "The Captain" tires have a fast-rolling center section and biting edge knobs to handle technical terrain.
The Specialized AFR rear shock is designed with a Trail Tune Inertia valve, Brain Fade and adjustable rebound for the ultimate in terrain-sensing technology.
An adjustable Fox Talas fork allows the rider pick their level of travel: 140, 120 or 100mm, complete with compression/rebound adjust and lockout.
Avid Ultimate hydraulic disc brakes with lightweight magnesium lever body and carbon blade, stainless hardware and alloy-backed organic pads provide modulation and control at every speed.
Our custom DT Swiss wheels don't cut corners when it comes to quality: sealed cartridge bearings, a DT Swiss rear hub with star ratchet and alloy freehub and DT Swiss Super Comp stainless spokes with alloy nipples. Exclusive to Specialized.

Technical Specifications

FRAMESET

FRAME

Stumpjumper FSR M5 Manipulated Alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel

HEADSET

1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Specialized AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.25x1.75""

FORK

Fox Talas RLC w/ Talas 3, 140/120/100mm, 32mm stanchions, magnesium lowers, compression and rebound adj. w/ LO, alloy steerer

WHEELS

FRONT TIRE

S-Works The Captain Control, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready

REAR TIRE

S-Works The Captain Control, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready

INNER TUBES

Specialized Ultralight 26x2.0"", presta

RIMS

DT Swiss XR 4.2D, 24mm w/ eyelets, 28/32h

FRONT HUB

Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h

REAR HUB

Custom DT Swiss 280S w/ Star Rachet, alloy freehub w/ DT RWS, 10mm alloy QR, 32h

SPOKES

DT Swiss Super Comp 2.0/1.7/1.8mm butted stainless, black, alloy nipples

DRIVETRAIN

FRONT DERAILLEUR

Shimano M770 XT, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-0, 9-speed, mid cage

SHIFT LEVERS

SRAM X-0, carbon/aluminum 9-speed trigger

CASSETTE

Shimano M770 XT, 9-speed, 11-34t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

Shimano FC-M770 XT, 2pc., S: 170mm, others: 175mm

BOTTOM BRACKET

Shimano M-770 XT

COCKPIT

STEM

Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish

HANDLEBARS

Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide

GRIPS

Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL)

SADDLE

Specialized Format, Ti rails, SL foam, S/M: 130mm L/XL:143mm

SEATPOST

Thomson Elite Setback w/ 12 degree clamp, S/M: 367mm L/XL: 410mm

BRAKES

FRONT BRAKE

Custom Avid Ultimate SL, alloy backed organic pads, alloy caliper, magnesium lever body w/ carbon blade, SS hardware package, S/M: 185mm, L/XL: 203mm rotor

REAR BRAKE

Custom Avid Ultimate SL, alloy backed organic pads, alloy caliper, magnesium lever body w/ carbon blade, SS hardware package, S/M: 160mm, L/XL:185mm rotor

BRAKE LEVERS

Custom Avid Ultimate SL Hydraulic

ACCESSORIES

PEDALS

None

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL	XXL
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	556mm	587mm	625mm	645mm	665mm
Head Tube Height	100mm	120mm	140mm	160mm	160mm
Head Tube Angle - Low Setting	68.5°	68.5°	68.5°	68.5°	68.5°
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	533mm	565mm	601mm	625mm	640mm
Seat Tube Length - Center to Top	406mm	445mm	483mm	533mm	584mm
Wheel Base	1084mm	1115mm	1155mm	1177mm	1197mm
Standover Height	721mm	728mm	755mm	764mm	778mm
Chainstay Length	420mm	420mm	420mm	420mm	420mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm	640mm
Stem Length	75mm	90mm	105mm	120mm	120mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
