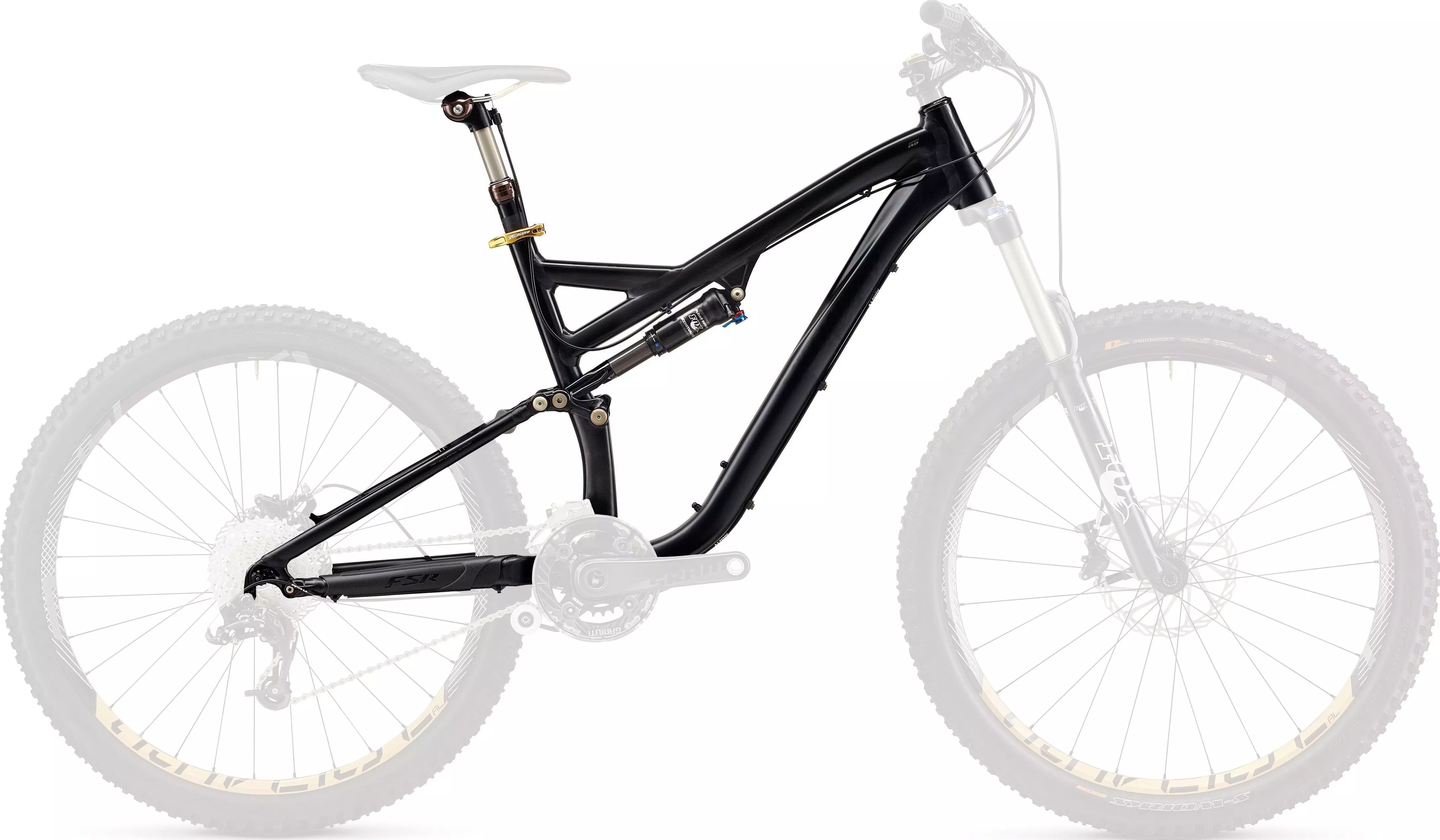

2011 Stumpjumper FSR Expert EVO Frame

0 Reviews

Build your own ultra-capable XC Trail machine with a frame that has tuned geo for…

Product Details

Build your own ultra-capable XC Trail machine with a frame that has tuned geo for a 140 fork and boosted rear travel.

M5 manipulated alloy frame for SJ Evo features slacker HT with 145mm of travel, aluminum rocker link, sealed cartridge bearing pivots and ISCG O5 tabs
Custom Fox RP23-S rear shock features position-sensitive Boost Valve damping, low-speed compression damping with 3-way adjustable "open" and "climbing" settings - meaning, great bump performance and solid climbing efficiency
Specialized Command Post is a 3-position adjustable-height seatpost with remote lever for on-the-fly changes to riding position, 125mm travel

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy w/ ORE TT/DT, EVO geometry, tapered HT, ISCG 05, link extension for shock, replaceable derailleur hanger

HEADSET

1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black

SUSPENSION

REAR SHOCK

Fox RP23-S with Boost Valve, reb and separate climbing setting and custom 3-position low-speed comp adj., 7.75x2.0""

COCKPIT

SEATPOST

Specialized Command Post, 3 position, 125mm adjustable height w/air spring, remote operated, single bolt head

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Ground-Top	906mm	924mm	933mm	942mm
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	557mm	589mm	618mm	644mm
Head Tube Height	108mm	128mm	138mm	148mm
Head Tube Angle - Low Setting	67°	67°	67°	67°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	529mm	558mm	584mm	613mm
Seat Tube Length - Center to Top	406mm	445mm	483mm	533mm
Wheel Base	1103mm	1137mm	1168mm	1195mm
Standover Height	740mm	745mm	752mm	770mm
Stack	568mm	586mm	595mm	604mm
Reach	400mm	426mm	453mm	476mm
Chainstay Length	420mm	420mm	420mm	420mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm	90mm
Seatpost Length	380mm	380mm	380mm	380mm
