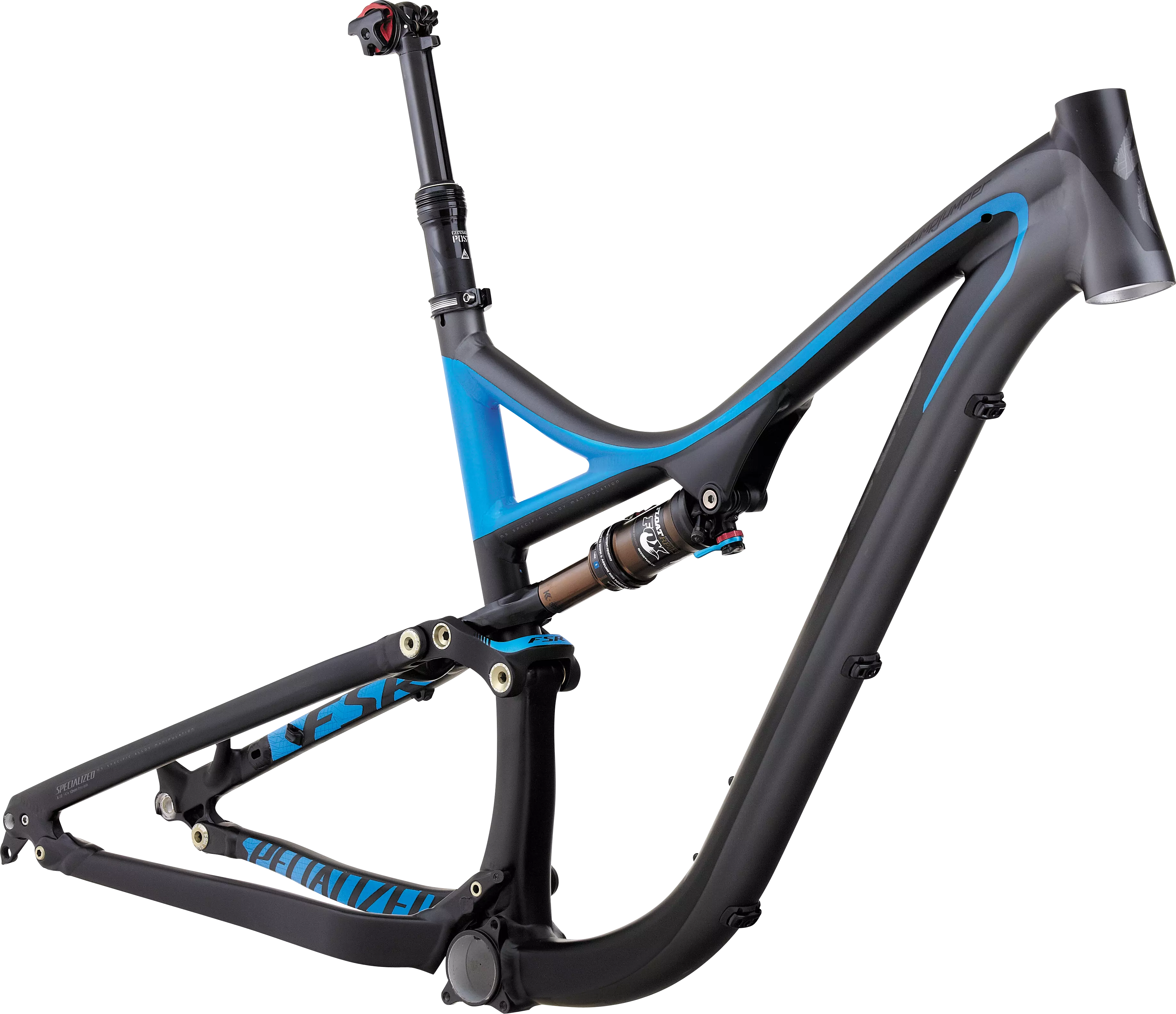

2012 Stumpjumper FSR EVO 29 Frame

0 Reviews

Build your own trail slaying machine with the aluminum, 135mm-travel Stumpjumper…

Product Details

Build your own trail slaying machine with the aluminum, 135mm-travel Stumpjumper FSR EVO 29 frame. It's designed for getting burly, and features a Fox RP23 Adaptive Logic shock with AUTOSAG and Kashima coating.

M5 hydroformed alloy frame with 29er EVO geometry, 135mm of travel, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots makes this one of the most capable 29ers ever
Custom Fox RP23 Adaptive Logic shock with ground-breaking AUTOSAG feature, Boost Valve technology and buttery-smooth Kashima coating has one custom-tuned ProPedal setting for climbing, and 3 open-compression settings for premium descending performance.
All-new Specialized Command Post BlackLite uses 3 remote-actuated saddle height positions to maximize climbing and descending performance

Technical Specifications

FRAMESET

FRAME

M5 hydroformed tubing, 29"" EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post rouing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Fox RP23 Adaptive Logic with AUTOSAG, Kashima coating, rebound adj., separate climbing setting and custom 3-position open comp adj., 197x46mm

COCKPIT

SEATPOST

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL	XXL
Seat Tube Length, Center to Top	396mm	430mm	468mm	523mm	565mm
Top Tube Length, Actual	579mm	606mm	632mm	660mm	684mm
Bottom Bracket Drop	37mm	37mm	37mm	37mm	37mm
Bottom Bracket Height	335mm	335mm	335mm	335mm	335mm
Seat Tube Angle, Actual	68°	68.4°	68.8°	69.3°	69.6°
Seat Tube Angle, Effective	73.5°	73.5°	73.5°	73.5°	73.5°
Wheel Base	1126mm	1156mm	1183mm	1211mm	1234mm
Standover Height	750mm	741mm	750mm	764mm	779mm
Stack	619mm	629mm	643mm	661mm	685mm
Reach	387mm	413mm	435mm	456mm	469mm
Head Tube Length	100mm	110mm	125mm	145mm	170mm
Head Tube Angle	68°	68°	68°	68°	68°
Chainstay Length	455mm	455mm	455mm	455mm	455mm
Top Tube Length, Horizontal	567mm	596mm	622mm	648mm	668mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm	90mm	105mm
Seatpost Length	380mm	425mm	425mm	425mm	425mm
