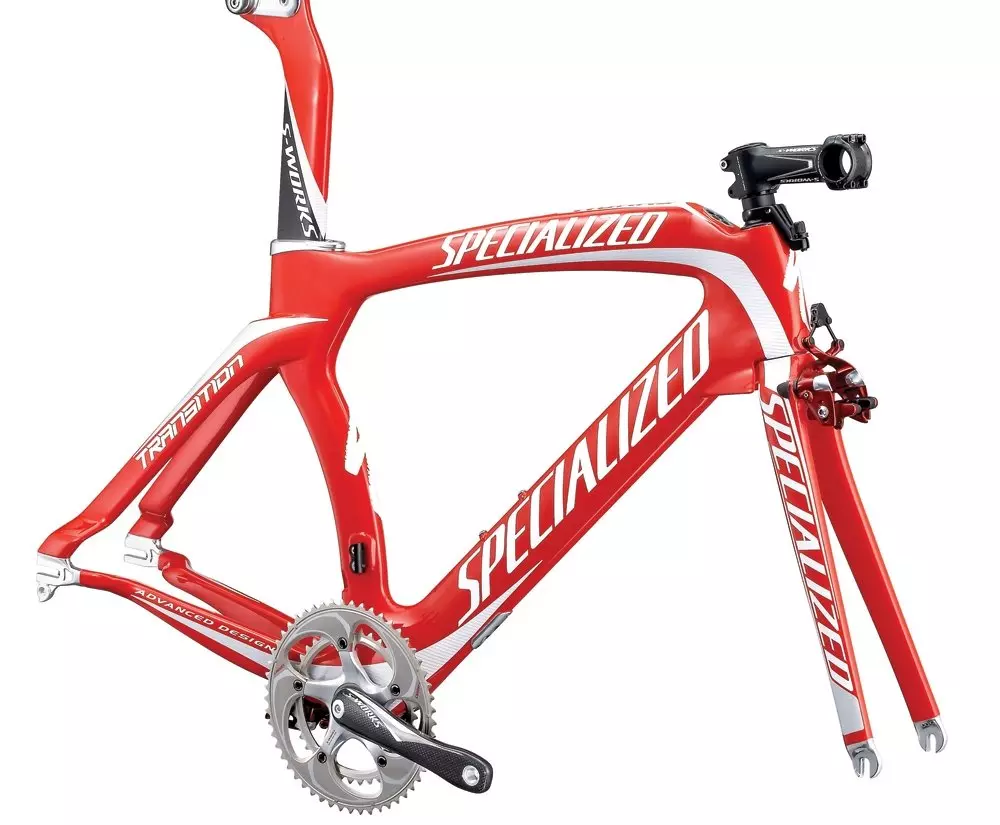

2009 S-Works Transition Module

0 Reviews

SO FAST IT WINS WORLD IRONMAN CHAMPIONSHIPS and carries Pro Tour riders to some of…

Product Details

SO FAST IT WINS WORLD IRONMAN CHAMPIONSHIPS and carries Pro Tour riders to some of their fastest TT finishes, the FACT carbon Transition is every rider's unfair advantage.

The light and fast Transition S-Works FACT 9r carbon, triple monocoque frame features our N’Aero tube shaping in a compact aero design, with an oversized BB for maximum pedaling efficiency.
The Specialized S-Works FACT N’Aero carbon monocoque fork is light and fast.
The Specialized integrated brake system maintains an aero profile while still providing sure stops.
Our S-Works FACT carbon crankset is light and strong, its integrated oversized design makes for high-efficiency power transfer.
The Transition Carbon seatpost is perfectly shaped to cheat the wind.

Technical Specifications

FRAMESET

FRAME

Specialized FACT 9r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment, OS BB

FORK

Specialized FACT N'Aero carbon, monocoque construction, 1"" steerer

HEADSET

S-Works 1"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, conical cover w/ two 10mm and two 5mm carbon spacers

SEAT BINDER

Transition alloy

DRIVETRAIN

CRANKSET

S-Works FACT carbon, integrated oversize design

CHAINRINGS

53 x 39t

BOTTOM BRACKET

S-Works oversize integrated

COCKPIT

STEM

S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable

SEATPOST

S-Works Transition carbon, forward and setback posts, 2 position

BRAKES

FRONT BRAKE

S-Works integrated brake system

REAR BRAKE

S-Works integrated brake system

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	SM	MD	LG	XL
Head-Tube Length	170mm	172.5mm	175mm	175mm
BB to top of Head-Tube, Vertical	-100mm	-100mm	-100mm	-100mm
Head-Tube Angle	575°	589°	602°	621°
Chain-Stay Length	71.5mm	72mm	72mm	72.5mm
Seat-Tube Length, B-B Center to Top vertical	72mm	72mm	72mm	72mm
Front-Center	100mm	110mm	120mm	120mm
BB to top of Head-Tube, Horizontal	395mm	395mm	395mm	395mm
Handle-Bar Width	350mm	350mm	350mm	350mm
Saddle Setback (Min)	43mm	43mm	43mm	43mm
Stand-Over Height	75mm	75mm	90mm	100mm
Saddle Setback (Max)	68mm	65mm	65mm	62mm
Fork Rake	961mm	975mm	988mm	1007mm
BB Drop	50mm	50mm	50mm	50mm
Trail	761mm	763mm	768mm	787mm
Wheelbase	400mm	400mm	420mm	420mm
