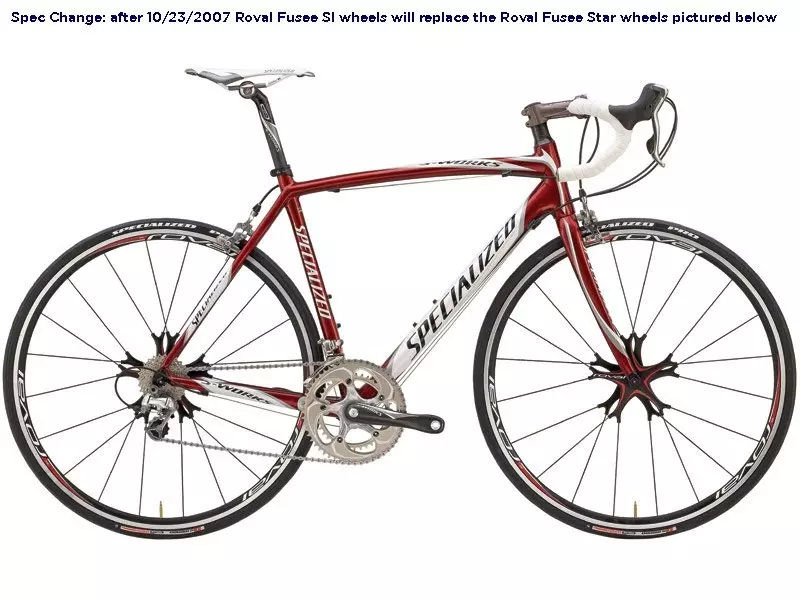

2008 S-Works Tarmac SL

0 Reviews

Competitive Road FAST REDEFINED Designed for speed and efficiency, yet still light,…

Product Details

Competitive Road FAST REDEFINED Designed for speed and efficiency, yet still light, sharp-handling and smooth-riding, the Tarmac SL gives new meaning to the word fast.Inside Tech When we set out to build the lightest, most efficient road bike ever, there wasn't a manufacturing process that could do the job. So we created one—'Az1'. Using Az1 (say: as-one) we seamlessly join discrete carbon monocoque sections into a single chassis, creating a frame with unsurpassed strength-to-weight and stiffness-to-weight ratios. Useful Links FACT Carbon Roval Wheels Manuals/Tech Bulletins

S-Works FACT 10r carbon frame, Az1 construction, compact race design
S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer
S-Works Pro-Set stem, 31.8mm handlebar clamp, 4-position adjustable, Ti hardware
S-Works SL, FACT carbon aero handlebar, short-reach drop, 31.8mm clamp
Shimano Dura-Ace 10-speed STI shifters and short cage rear derailleur
S-Works FACT carbon crankset, integrated oversize design
Roval Fuse&eacute, SL wheelset
S-Works Mondo Open Tubular tires, 700x23c, dual-compound tread, aramid bead, 290TPI
Body Geometry Toupé Team saddle, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover

Technical Specifications

FRAMESET

FRAME

S-Works FACT 10r carbon, Az1 construction, compact race design

FORK

S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer

HEADSET

S-Works Mindset, 1 1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

S-Works CNC alloy binder, 32.6mm clamp

WHEELS

FRONT TIRE

S-Works Mondo Open Tubular, 700x23c, dual-compound tread, aramid bead, 290TPI

REAR TIRE

S-Works Mondo Open Tubular, 700x23c, dual-compound tread, aramid bead, 290TPI

RIMS

E5 alloy low-profile aero seamless, machined rim (21mm W x 24mm H)

FRONT HUB

carbon center tube with alloy flanges, Roval Ti QR

REAR HUB

CNC-machined alloy body, high quality Swiss-made internals, ratchet and cassette body, Roval Ti QR

SPOKES

DT Stainless 14/15g Butted Aero

DRIVETRAIN

FRONT DERAILLEUR

Shimano Dura-Ace, 34.9mm clamp, bottom pull

REAR DERAILLEUR

Shimano Dura-Ace, short cage

SHIFT LEVERS

Shimano Dura-Ace, 10-speed STI, flight deck compatible

CHAIN

Shimano Dura-Ace, 10-speed

CRANKSET

S-Works FACT carbon crankset, integrated oversize design

CHAINRINGS

53x39T

BOTTOM BRACKET

S-Works, oversized integrated

COCKPIT

STEM

S-Works Pro-Set stem, 31.8mm handlebar clamp, 4-position adjustable, Ti hardware

HANDLEBARS

S-Works SL, FACT carbon aero handlebar, short-reach drop, 31.8mm clamp

SADDLE

Body Geometry Toupé Team, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

BRAKE LEVERS

Shimano Dura-Ace, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Composite body test ride pedals

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Seat-Tube Angle	57°	62°	57°	56°	53°	56°
Head-Tube Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Head-Tube Angle	576°	576°	583°	591°	605°	612°
Chain-Stay Length	45mm	45mm	45mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	100mm	120mm	145mm	170mm	205mm	230mm
Handle-Bar Width	300mm	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	100mm	90mm	110mm	120mm	120mm	130mm
Seat-Tube Length, B-B Center to Top	405mm	405mm	405mm	405mm	407mm	410mm
Fork Rake	970mm	970mm	978mm	986mm	1003mm	1013mm
B-B Drop	72.25mm	73mm	73mm	73.5mm	73.5mm	74mm
Stack	460mm	490mm	510mm	530mm	550mm	580mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	730mm	755mm	777mm	800mm	833mm	860mm
Wheelbase	400mm	420mm	420mm	420mm	440mm	440mm
