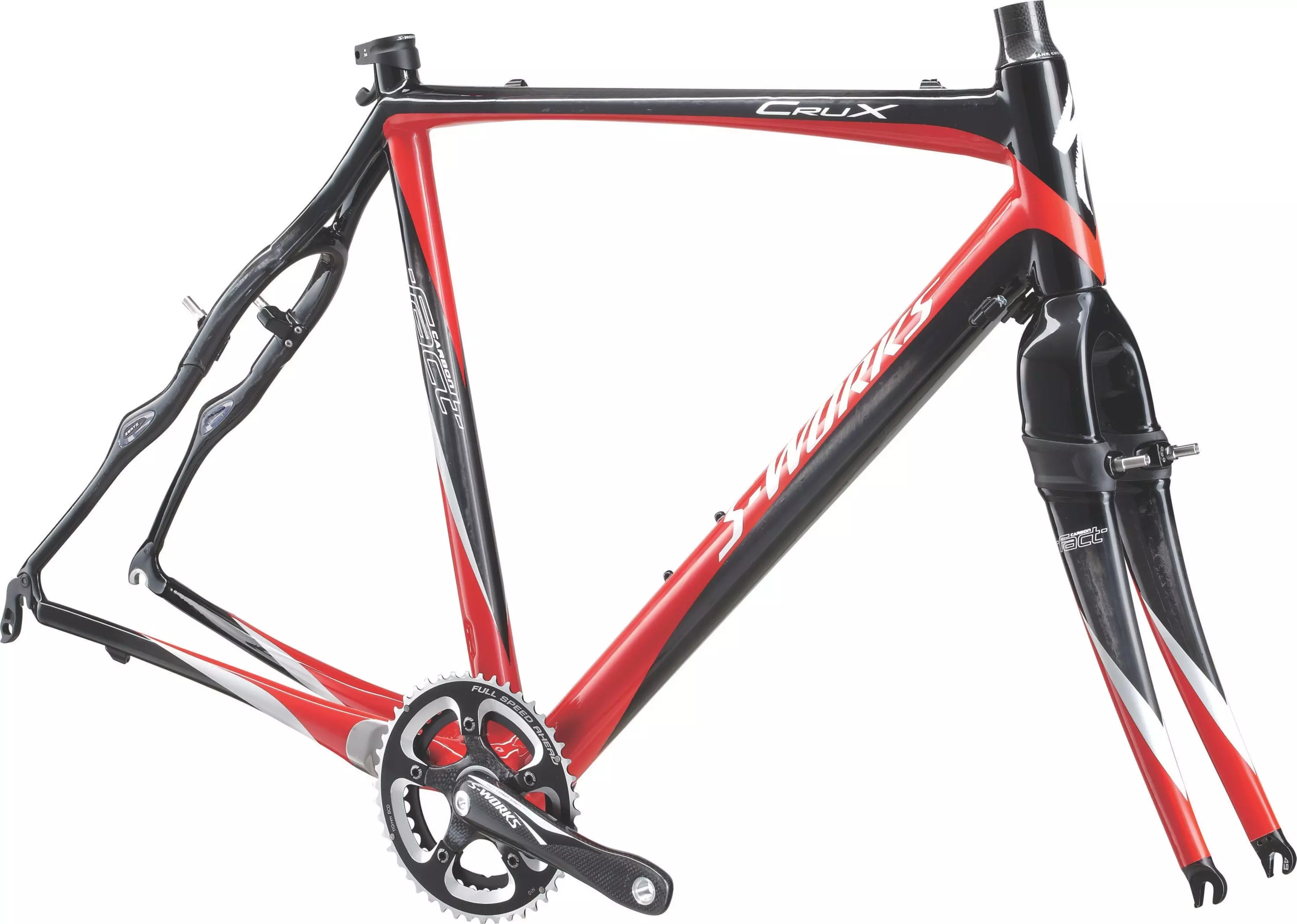

2011 S-Works CruX Carbon Module

0 Reviews

Absolutely uncompromising performance through an extensive use of FACT carbon technology…

Product Details

Absolutely uncompromising performance through an extensive use of FACT carbon technology throughout its frame, fork, cranks and seatpost for the elite 'cross racer who wants to build the perfect race bike.

S-Works FACT carbon monocoque fork with SpeedZertz is light, stiff, and quick, yet packs enough compliance for rough terrain
S-Works FACT carbon crankset with cross gearing, interchangeable carbon spider, and ceramic bearings provides maximum power transfer at minimal weight
FACT Az1 easy-shoulder carbon frame with Zertz inserts for a compliant, but super responsive cross-racing experience

Technical Specifications

FRAMESET

FRAME

S-Works FACT 10m carbon, Az1 construction, semi-compact design, Zertz inserts, OS BB

FORK

S-Works FACT carbon full monocoque, SpeedZertz

HEADSET

1-1/8"" Cr-Mo bearings with carbon 8mm cone spacer and 20mm of carbon spacers

SEAT BINDER

S-Works w/ brake stop, 32.6mm

DRIVETRAIN

CRANKSET

S-Works FACT carbon

CHAINRINGS

FSA 46 x 36T

BOTTOM BRACKET

OS integrated, ceramic bearings

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74.5°	73.5°	73°	72.5°	72°
Head-Tube Length	110mm	125mm	140mm	155mm	170mm	195mm
Seat-Post Length	0mm	0mm	0mm	0mm	0mm	0mm
Head-Tube Angle	70°	70.75°	71.5°	72°	72.5°	73°
Chain-Stay Length	440mm	440mm	440mm	440mm	440mm	440mm
Top-Tube Length, Horizontal	515mm	530mm	545mm	560mm	575mm	595mm
Front-Center	596mm	597mm	597mm	601mm	607mm	616mm
Stand-Over Height	750mm	774mm	791mm	806mm	824mm	851mm
Seat-Tube Length, B-B Center to Top	490mm	525mm	545mm	565mm	585mm	615mm
Fork Rake	49mm	49mm	49mm	47mm	47mm	47mm
B-B Drop	71mm	71mm	69mm	69mm	67mm	67mm
Trail	75mm	70mm	65mm	64mm	61mm	58mm
Wheelbase	1026mm	1027mm	1028mm	1032mm	1038mm	1047mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
