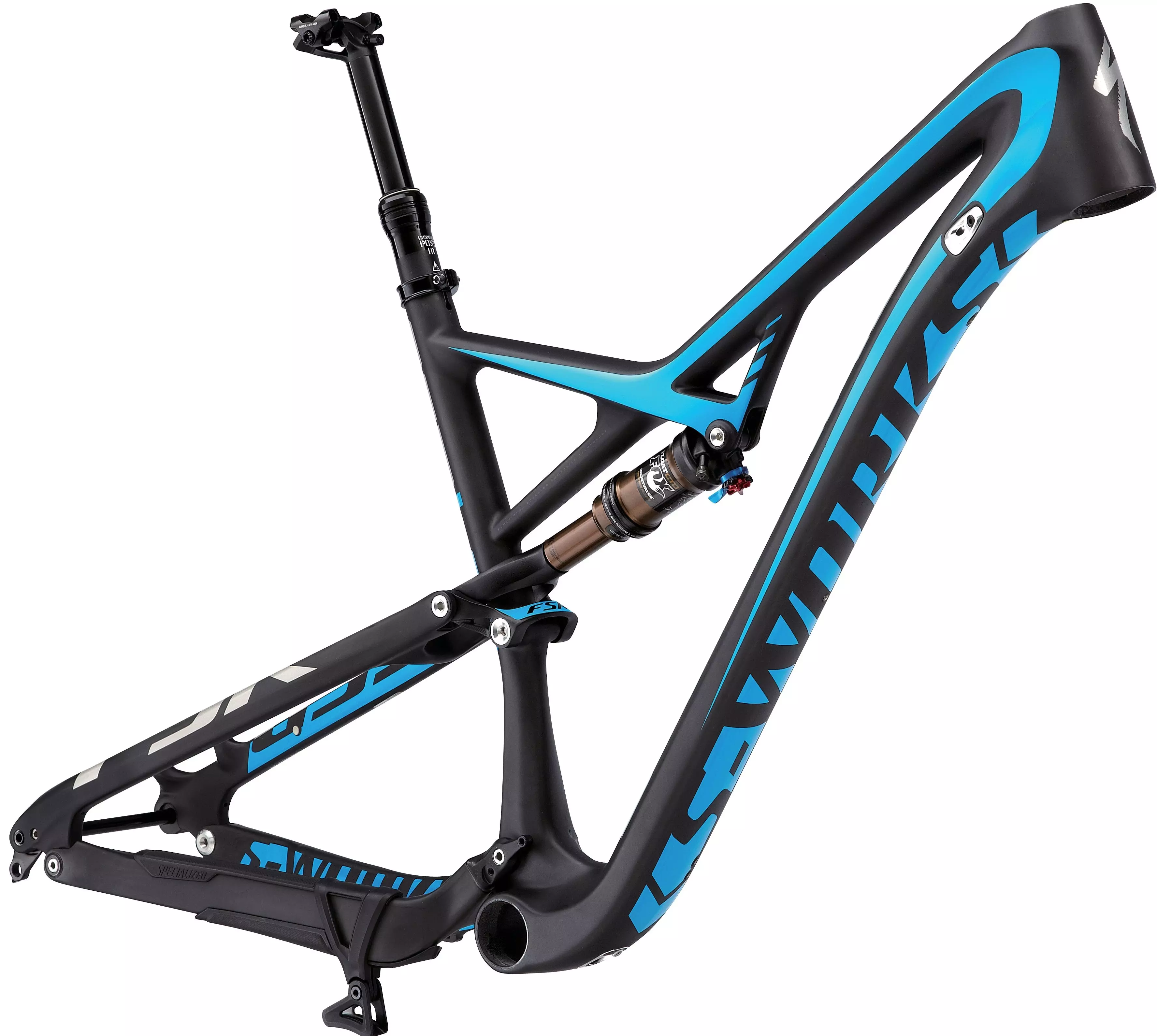

2015 S-Works Camber 29 Frame

0 Reviews

Build your own S-Works 29er trail weapon with this 110mm-travel Camber FSR Carbon…

Product Details

Build your own S-Works 29er trail weapon with this 110mm-travel Camber FSR Carbon frame, featuring a custom-tuned FOX Float CTD Factory shock with AUTOSAG.

FACT 11m carbon 110mm-travel frame w/ internal Command Post routing for an elite trail weapon
Custom Fox Float CTD Factory Series shock w/ AUTOSAG and custom tune for maximum control
Specialized Command Post IR w/ SRL remote lever to adjust saddle height on-the-fly

Technical Specifications

FRAMESET

FRAME

FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 110mm travel

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings w/ Trail and rebound adjust, 197x48mm

COCKPIT

SEATPOST

Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust lever, 30.9mm, S: 100mm travel, Others: 125mm, includes standard/SRL levers

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	555mm	587mm	612mm	642mm
Head Tube Height	90mm	100mm	125mm	150mm
Head Tube Angle - Low Setting	70°	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	70°	70°	70°	70°
Seat Tube Angle (Effective) - Low Setting	75°	74.8°	74.5°	74.2°
Top Tube Length (Actual)	535mm	562mm	589mm	621mm
Seat Tube Length - Center to Top	394mm	430mm	468mm	523mm
Wheel Base	1100mm	1131mm	1156mm	1186mm
Standover Height	740mm	745mm	749mm	760mm
Stack	591mm	600mm	624mm	647mm
Reach	400mm	428mm	445mm	466mm
Chainstay Length	450mm	450mm	450mm	450mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm	100mm
Seatpost Length	350mm	350mm	400mm	400mm
