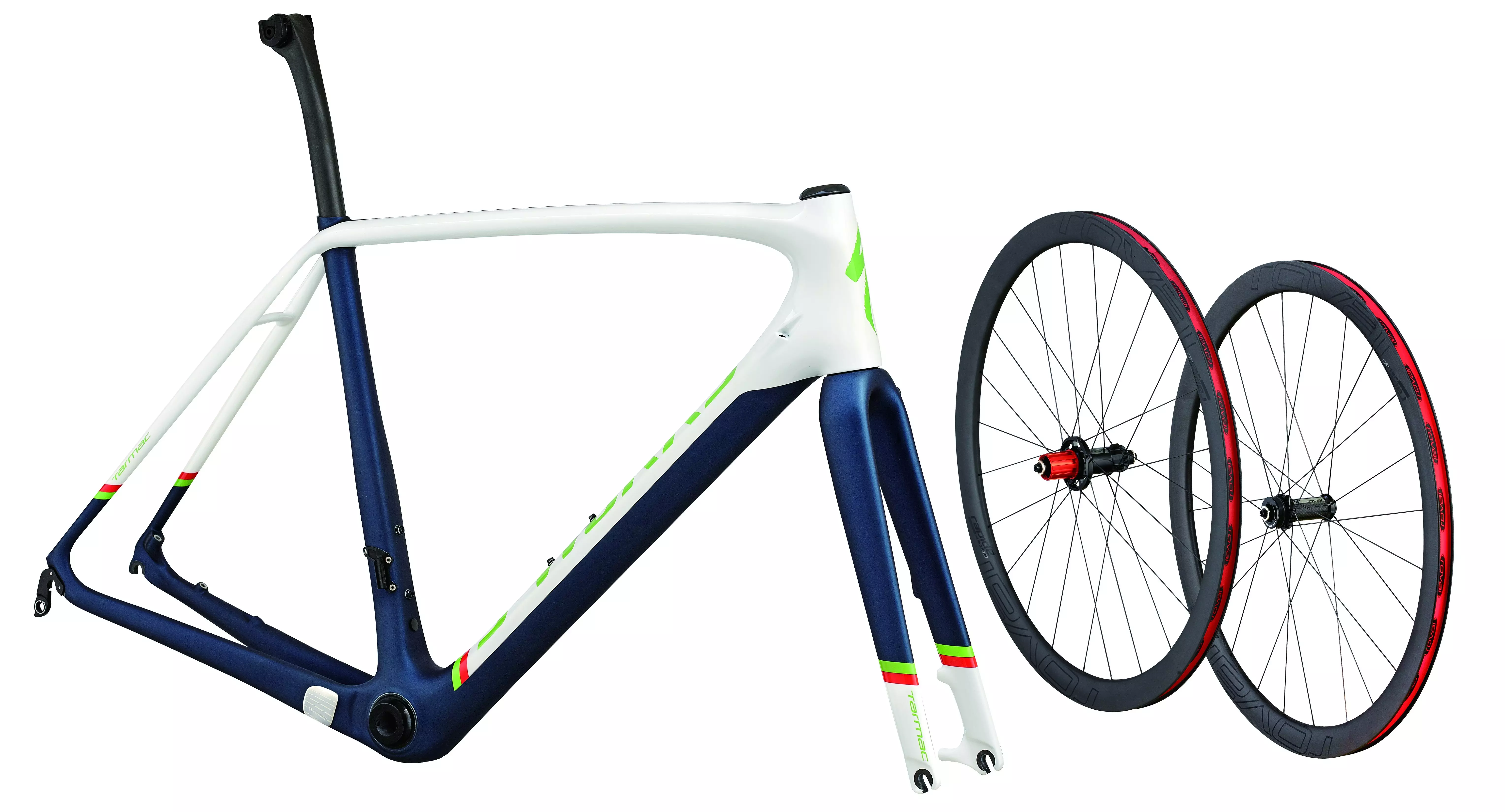

2015 S-Build S-Works Tarmac Disc Module

0 Reviews

The new S-Works Tarmac is Rider-First Engineered™ to provide every size frame with…

Product Details

The new S-Works Tarmac is Rider-First Engineered™ to provide every size frame with the hill destroying stiffness and legendary descending prowess the Tarmac is known for. It's a no compromise race-bred machine and exclusive only to S-Build are the stunning Lean and Mean color options just waiting to be built up exactly how you want it.

S-Works FACT 11r carbon frame, Rider-First Engineered w/ tapered headtube and OSBB
Full monocoque FACT carbon fork with a tapered carbon steerer is both light and stiff
Roval Rapide CLX 40 disc wheels w/ CeramicSpeed bearings for speed and stiffness
Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket w/ ceramic bearings
S-Works FACT carbon seatpost is super light and stiff for optimal power transfer
With S-Build, you can build it exactly how you want it. Learn more about the program

Technical Specifications

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower head tube, compact race design, internal cable routing, disc mount

FORK

Specialized FACT carbon, disc, full monocoque, size-specific taper

HEADSET

1-1/8"" upper, size-specific lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 25mm carbon spacers

SEAT BINDER

Specialized, integrated wedge

WHEELS

FRONT WHEEL

Roval Rapide CLX 40 SCS Disc, w/ CeramicSpeed ceramic bearings

REAR WHEEL

Roval Rapide CLX 40 SCS Disc, w/ CeramicSpeed ceramic bearings

DRIVETRAIN

BOTTOM BRACKET

CeramicSpeed, ceramic bearings

COCKPIT

SEATPOST

S-Works FACT carbon, 20mm offset, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	120mm	140mm	160mm	190mm	210mm
Seat-Post Length	350mm	350mm	350mm	400mm	400mm	400mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	576mm	576mm	583mm	591mm	605mm	612mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	730mm	755mm	775mm	795mm	826mm	850mm
Seat-Tube Length, B-B Center to Top	431mm	462mm	481mm	501mm	522mm	553mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	504mm	526mm	543mm	564mm	591mm	612mm
Reach	386mm	386mm	387mm	395mm	402mm	408mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
