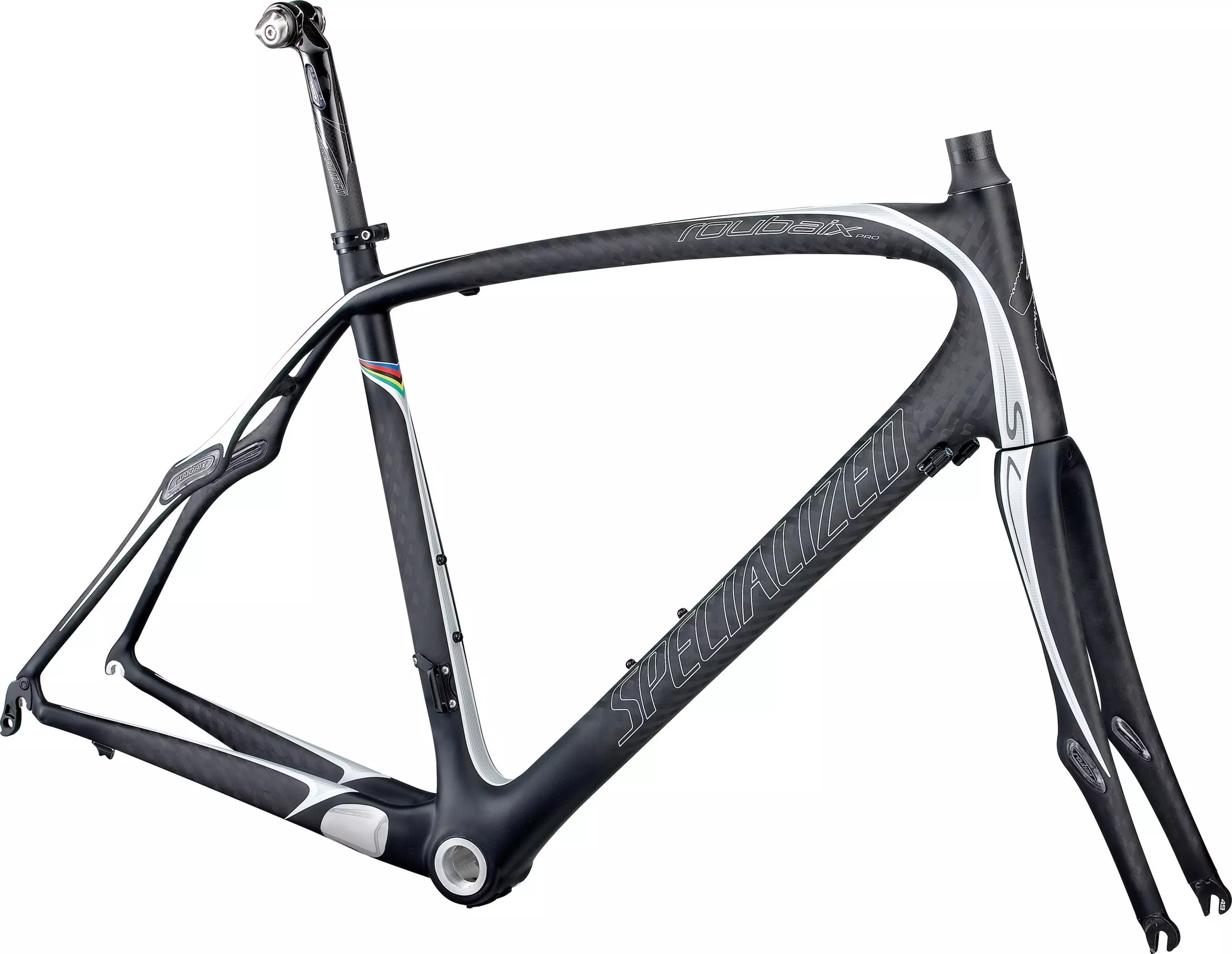

2010 Roubaix Pro Frameset

0 Reviews

The bike that invented the Endurance Road category also goes by the name "nothing…

Product Details

The bike that invented the Endurance Road category also goes by the name "nothing is smoother and faster". Combining best-in-class vertical compliance from the seatstays and top tube with excellent torsional rigidity from the down tube, head tube and bottom bracket, the Roubaix finds a way to not only make the long ride comfortable, but also make it fast

FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
Campy-style 1-1/8" to 1-3/8" Aheadset with steel bearings ensures quality, low maintenance and lighter weight
Advanced FACT IS 9r carbon frame with Endurance Road geometry and Zertz inserts for the perfect blend of stiffness, compliance and light weight

Technical Specifications

FRAMESET

FRAME

Specialized Roubaix FACT 9r carbon, FACT IS construction, compact race design w/ Zertz inserts

FORK

Roubaix full carbon monocoque, w/ Zertz inserts

HEADSET

Aheadset Stainless Balls w/ top cap w/ 20mm of spacers

SEAT BINDER

Alloy, 32.6mm clamp

COCKPIT

SEATPOST

Specialized FACT carbon w/ Zertz insert, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	125mm	145mm	165mm	190mm	225mm	245mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72°	72°	72°	72.5°	72.5°	73°
Chain-Stay Length	412mm	412mm	415mm	415mm	418mm	420mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	582mm	588mm	595mm	606mm	621mm	628mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	737mm	759mm	780mm	801mm	824mm	849mm
Seat-Tube Length, B-B Center to Top	445mm	475mm	495mm	515mm	540mm	565mm
Fork Rake	49mm	49mm	49mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Wheelbase	983mm	989mm	1000mm	1010mm	1029mm	1038mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	120mm
