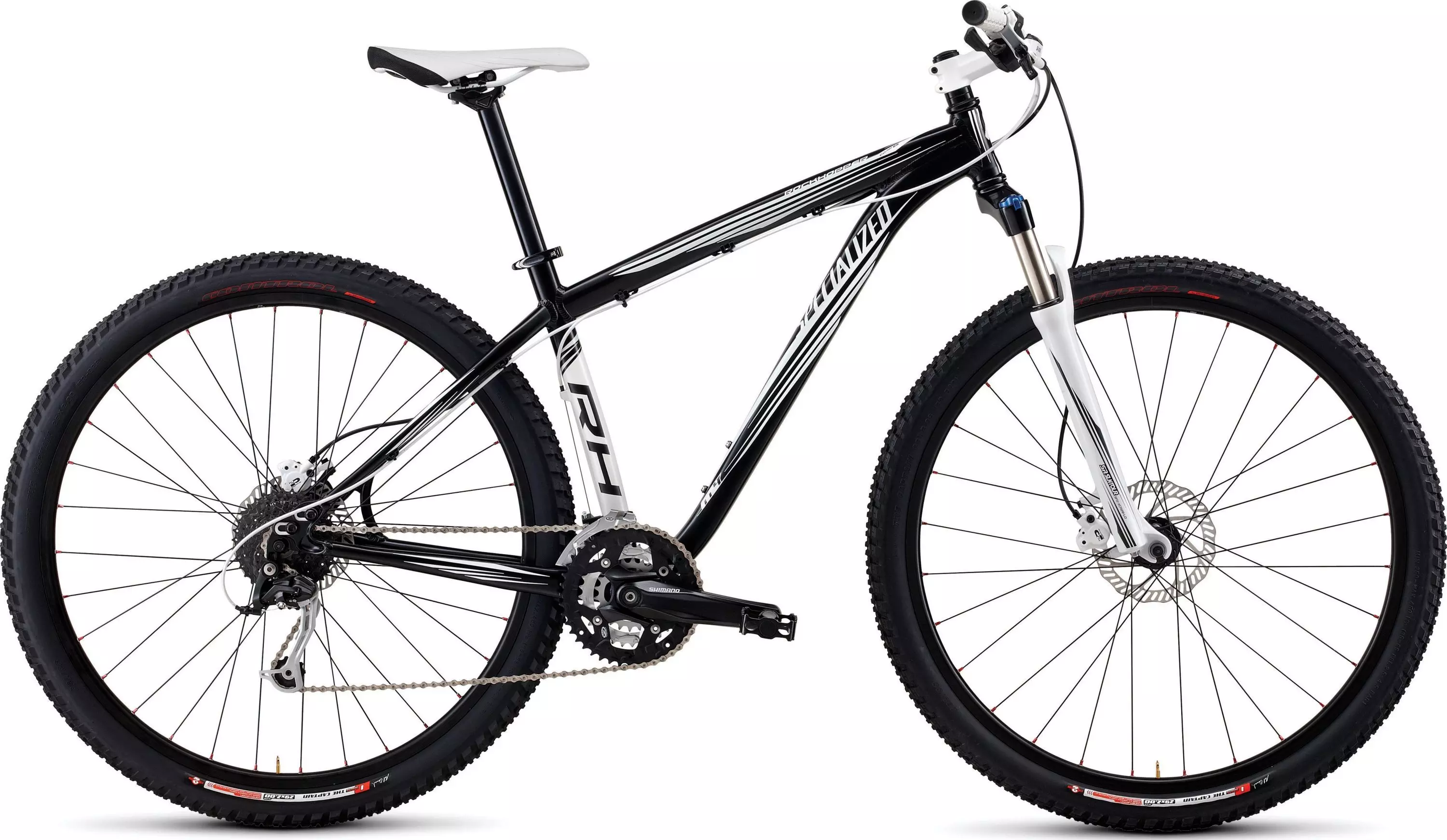

Ready to roll fire roads and singletrack on its 29
Specialized 29" Captain Sport tires lend a perfect knob pattern for diverse conditions
Light and durable double-walled 29" alloy rims are tough enough to handle the rough stuff
Tektro Draco hydraulic disc brakes with dual pistons assure precision braking under any conditions
Shimano Alivio 9-speed rear derailleur and Rapidfire trigger shifters for reliable, high-end performance
Shimano crankset with forged alloy arms and Octalink-splined BB interface means greater durability and better shifting performance
Fully butted M4 alloy frame with 29er trail geometry for better control, leverage, and bump performance, plus singlespeed-compatible dropouts and sliders
Custom-tuned 29" SR Suntour suspension fork with hydraulic damping, lockout with lightweight magnesium lowers, and alloy steer deliver the supple ride qualities of a high-end fork
SEAT BINDER
Forged alloy QR, brass washer
HEADSET
1-1/8"" threadless, loose ball
FRAME
Specialized M4 fully manipulated alloy frame, fully butted, Trail 29"" geometry, externally relieved HT, SS compatible forged adjustable slider dropouts, replaceable der. hanger, disc only
FORK
SR Suntour SF11-XCR-DS-29-LO-SP, 1-1/8"" alloy steer, mag. lower, 30mm stanchions, hyd. damping w/ lock out and custom tuned spike valve
SPOKES
2mm (14g) stainless
FRONT TIRE
The Captain Sport, 29x2.0"", 60TPI, wire bead
REAR TIRE
The Captain Sport, 29x2.0"", 60TPI, wire bead
RIMS
Alex RHD 29"", alloy double wall, pinned w/eyelets
FRONT HUB
Forged alloy, hi/low flange, double sealed, ground race, machined disc mount and flange, QR, 32h
REAR HUB
Forged alloy, mid flange, double sealed, ground race, machined disc mount and flanges, cassette, QR, 36h
INNER TUBES
Presta valve
REAR DERAILLEUR
Shimano Alivio, 9sp direct mount Long cage
SHIFT LEVERS
Shimano Alivo SL, rapid fire trigger
CASSETTE
Shimano HG30, 9-speed, 11-34t
CHAIN
KMC X9 w/ reusable Missing Link
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
FRONT DERAILLEUR
Shimano Alivo, 34.9mm clamp, top swing, dual pull
CRANKSET
Shimano FC-M430-8, Octalink spline
CHAINRINGS
44S x 32S x 22S replaceable
HANDLEBARS
Butted alloy riserbar, 25mm rise, 8 degree back sweep, 6 degree up
SADDLE
Specialized Rockhopper XC, Body Geometry, 143mm width, front and rear bumpers
GRIPS
Specialized Enduro, dual compound Kraton, no flange, 131mm
SEATPOST
Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
STEM
3D forged alloy, 7 degree rise, 31.8mm clamp
FRONT BRAKE
Tektro Draco Hydraulic disc brake, dual piston, 160mm rotor
REAR BRAKE
Tektro Draco Hydraulic disc brake, dual piston, 160mm rotor
BRAKE LEVERS
Tektro Draco hydraulic
PEDALS
Alloy 1pc. body and cage, reflector kit, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
15.5 | 17.5 | 19 | 21 | 23 | |
---|---|---|---|---|---|
Ground-Top | 933mm | 935mm | 944mm | 963mm | 982mm |
Bottom Bracket Height - Low Setting | 299.5mm | 299.5mm | 299.5mm | 299.5mm | 299.5mm |
Top Tube Length (Horizontal) | 576mm | 603mm | 625mm | 650mm | 670mm |
Head Tube Height | 90mm | 90mm | 100mm | 120mm | 140mm |
Head Tube Angle - Low Setting | 70.5° | 71° | 71° | 71° | 71° |
Seat Tube Angle (Actual) - Low Setting | 73° | 72° | 72° | 72° | 72° |
Seat Tube Angle (Effective) - Low Setting | 74.2° | 73.2° | 73.2° | 73.2° | 73.2° |
Top Tube Length (Actual) | 563mm | 576mm | 595mm | 619.5mm | 641.5mm |
Seat Tube Length - Center to Top | 394mm | 444mm | 483mm | 533mm | 584mm |
Wheel Base | 1078mm | 1087mm | 1117mm | 1142mm | 1162mm |
Standover Height | 707mm | 785mm | 821mm | 857mm | 893mm |
Stack | 605mm | 608mm | 618mm | 635mm | 655mm |
Reach | 409mm | 423mm | 442mm | 461mm | 475mm |
Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
