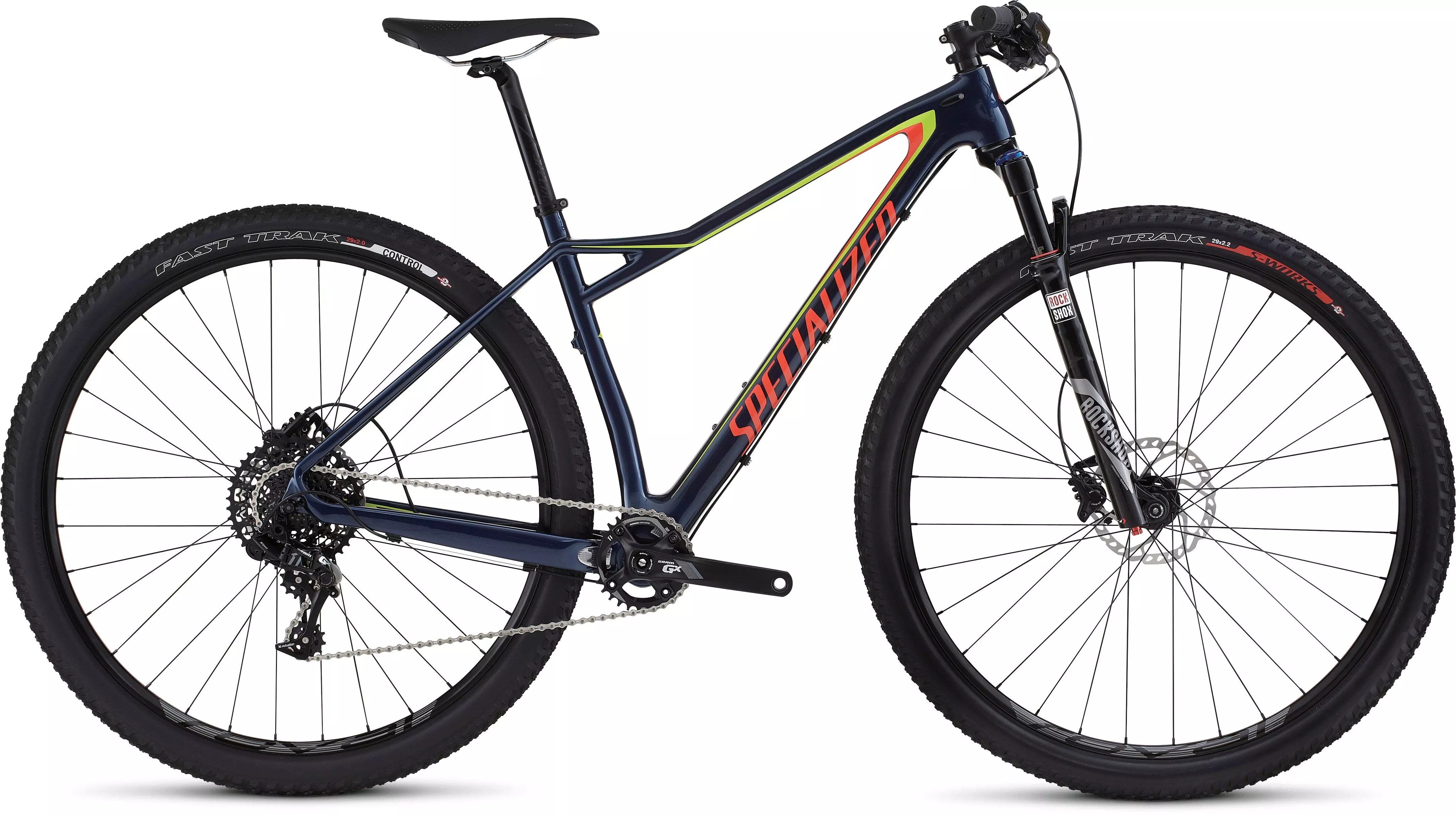

2016 Fate Comp Carbon 29
0 Reviews
Who likes riding uphill? The Fate Comp Carbon does, and thanks to its lightweight…
Product Details
Who likes riding uphill? The Fate Comp Carbon does, and thanks to its lightweight frame, you will too. Built to climb and put the hurt on the field, this bike handles like a dream, tackling unpredictable terrain and gnarly trail features with gusto. With a trail-hungry spec, including the high-performance RockShox Reba RL 29 fork to smooth out the trail, you’ll be racking up PRs left and right while enjoying the performance and nimble handling of this efficient XC machine.
Enjoy high-performance XC suspension with the low-weight RockShox Reba RL 29 fork, boasting 80mm of travel, Solo Air spring, and compression and rebound adjust.
Reliable braking over rough terrain is assured thanks to the Shimano Deore M506 hydraulic brakes.
The Fate’s responsive FACT 8m carbon frame is stiff, lightweight, and delivers an efficient, nimble-handling ride. Built with internal cable routing, the frame uses Women’s Competitive XC Geometry and provides great fit and control.
Technical Specifications
FRAMESET
FRAME
FACT 8M carbon, Women's Competitive XC 29 Geometry, women's carbon layup, tapered head tube, carbon PF30 BB, internal cable routing, hollow carbon dropouts, replaceable alloy derailleur hanger
HEADSET
1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
SEAT BINDER
Alloy, 31.6mm
SUSPENSION
FORK
RockShox Reba RL 29, Solo Air spring, 80mm travel, compression adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle
WHEELS
RIMS
Roval 29, alloy, 21mm inner width, 32h
FRONT HUB
Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized, Hi Lo disc, sealed cartridge bearings, QR, 32h
SPOKES
DT Swiss Industry, stainless
FRONT TIRE
S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE
Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
INNER TUBES
Standard, Presta valve
DRIVETRAIN
REAR DERAILLEUR
SRAM GX X Horizon, 11-speed, alloy cage
SHIFT LEVERS
SRAM GX, 11-speed, trigger
CASSETTE
SRAM XG-1150, 11-speed, 10-42t
CHAIN
KMC X11L, 11-speed, w/ reusable MissingLink
CRANKSET
SRAM S-1000, 11-speed, PF30, 30T X-Sync ring, 94mm BCD spider
BOTTOM BRACKET
SRAM, PF30, OS press-in bearings, sealed cartridge
COCKPIT
STEM
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized, flat bar, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, lock-on, half-waffle, regular thickness
SADDLE
Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Specialized, alloy, single bolt, 27.2mm
BRAKES
FRONT BRAKE
Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
REAR BRAKE
Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
BRAKE LEVERS
Shimano Deore BL-M506, hydraulic, alloy lever
ACCESSORIES
PEDALS
Nylon, CEN std., w/ toe clips
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Crank Length | 165mm (00.6118.282.002) | 170mm (00.6118.282.001) | 175mm (00.6118.282.000) |
| Handlebar Width | 700mm | 700mm | 700mm |
| Stem Length | 60mm | 75mm | 90mm |
| Saddle Width | 155.0 | 155.0 | 155.0 |
| Seatpost Length | 350mm | 350mm | 400mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
Rider Reviews
0 Reviews
