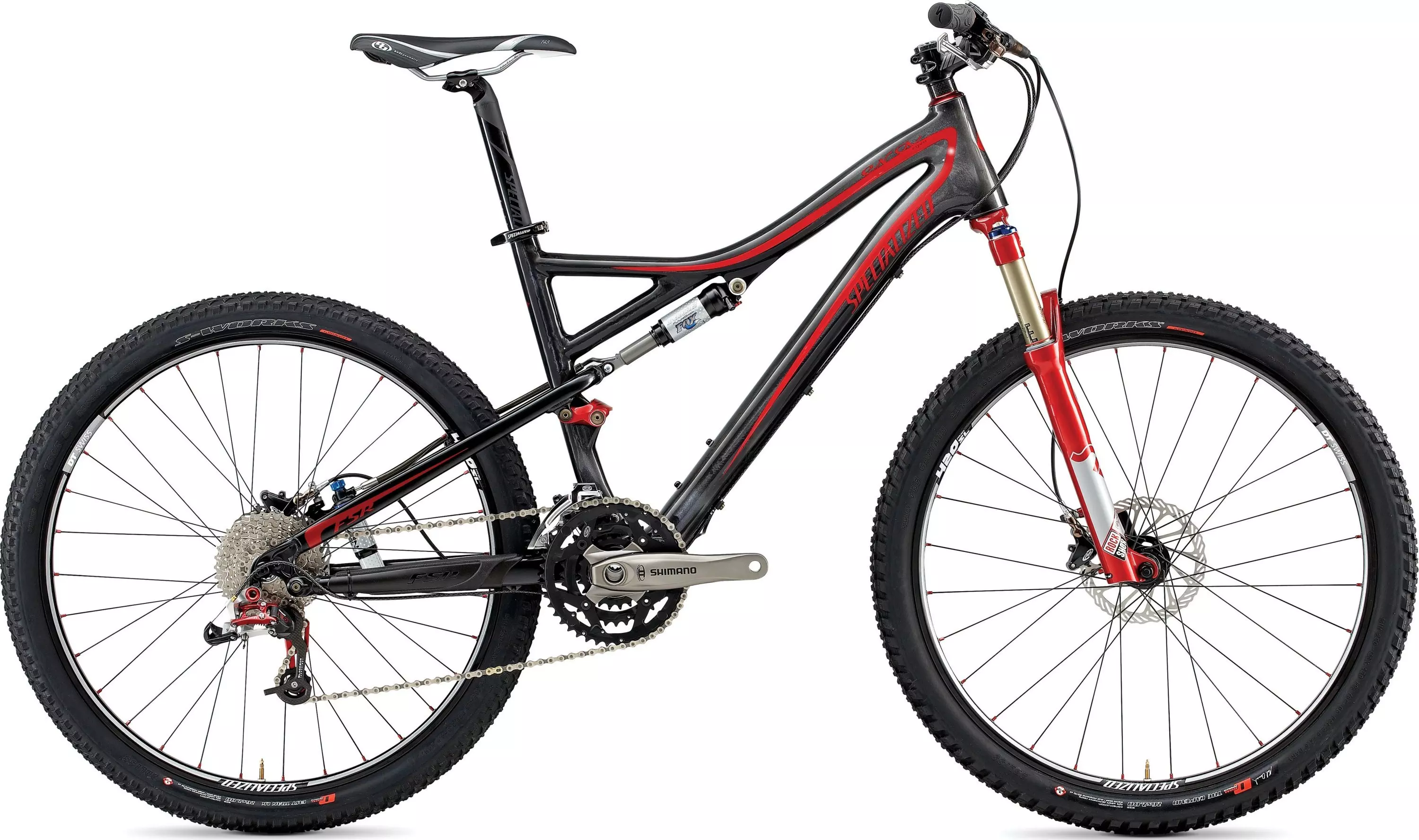

2010 Era FSR Expert Carbon
0 Reviews
The Era is the most efficient, fastest and lightest full suspension cross-country…
Product Details
The Era is the most efficient, fastest and lightest full suspension cross-country bike designed from the ground up for female riders and racers. Featuring a smooth and efficient Mini Brain damper, FSR suspension, women's race geometry and completely optimized frame, the Era gives you hardtail speed with more than enough capability for rough and technical terrain.
Body Geometry women's Jett saddle for lightweight comfort and race-ready control
Custom for Specialized, Shimano 2-piece crankset for a stiff connection to the pedals
S-Works The Captain front tire and Fast Trak LK rear tire is the ideal combination for speed and aggressive cornering
Specialized and Fox blend their brains to develop the new FlowControl Mini Brain shock with Brain Fade adjust inertia valve, air spring and adjustable rebound, tuned for women's XC performance
100mm-travel RockShox SID Race fork uses motion control damper and external rebound/compression adjust to match performance with rear shock
Era FACT 10m carbon frame uses women's-specific FACT IS construction and geometry to create a fast, lightweight and proportionally accurate ride
Custom DT Swiss wheelset uses sealed cartridge bearings, a DT Swiss rear hub and Competition stainless spokes for quality without the weight penalty
Custom Avid Elixir hydraulic disc brakes with carbon levers and reach adjust for balanced and powerful stopping control
Technical Specifications
FRAMESET
FRAME
Era FACT 10m carbon front triangle, w/ women's IS construction and geometry, M5 aluminum rear triangle, sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger
HEADSET
1-1/8"" Threadless, Campy style upper and lower cartridge bearing
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 36.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox/SBC remote mini-brain, inertia valve, w/ Brain fade adjust
FORK
RockShox SID Race for Specialized, 100mm travel, air spring, rebound and floodgate compression adj.w/ LO, alloy steerer
WHEELS
FRONT TIRE
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE
S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
INNER TUBES
Ultralight presta valve
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT HUB
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, oversized end caps, 9mm DT RWS, alloy QR, 28h
REAR HUB
Custom DT Swiss 330SL w/ alloy freehub, QR, 32h
SPOKES
DT Swiss Competition 1.8/1.6mm stainless
DRIVETRAIN
FRONT DERAILLEUR
Shimano M660 SLX, DMD, top swing, dual pull
REAR DERAILLEUR
SRAM X-0, 9-speed mid cage
SHIFT LEVERS
SRAM X-9 aluminum trigger
CASSETTE
Shimano HG61, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Custom Shimano FC-M762, 2pc., S/M: 170mm, L: 175mm
CHAINRINGS
44A x 32A x 22S
BOTTOM BRACKET
Custom Shimano BB-91, OS, press-in bearing
COCKPIT
STEM
3D forged alloy, adjustable rise, 31.8mm clamp
HANDLEBARS
Specialized XC low rise bar, 7050 butted alloy, 31.8mm, 640mm wide, 8 degree back sweep, 6 degree up
GRIPS
Specialized waffle lock on grip
SADDLE
Specialized Body Geometry women's Jett, hollow Cr-Mo rails, 143mm
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm
BRAKES
FRONT BRAKE
Custom Avid Elixir CR SL, alloy backed semi-met pads, alloy Elixir CR lever w/ pad contact and reach adj., 160mm rotors
REAR BRAKE
Custom Avid Elixir CR SL, alloy backed semi-met pads, alloy Elixir CR lever w/ pad contact and reach adj. S/M: 140mm rotors, L: 160mm
BRAKE LEVERS
Custom Avid Elixir CR SL Hydraulic, tool-less adj. reach and pad contact
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 879mm | 897mm | 906mm |
| Bottom Bracket Height - Low Setting | 331mm | 331mm | 331mm |
| Top Tube Length (Horizontal) | 540mm | 565mm | 595mm |
| Head Tube Height | 126mm | 143mm | 154mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 74.2° | 74.2° | 74.2° |
| Top Tube Length (Actual) | 522mm | 545mm | 570mm |
| Seat Tube Length - Center to Top | 394mm | 432mm | 470mm |
| Wheel Base | 1049mm | 1076mm | 1107mm |
| Standover Height | 704mm | 721mm | 729mm |
| Stack | 548mm | 566mm | 575mm |
| Reach | 386mm | 405mm | 433mm |
| Chainstay Length | 425mm | 425mm | 425mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm |
| Stem Length | 75mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm |
