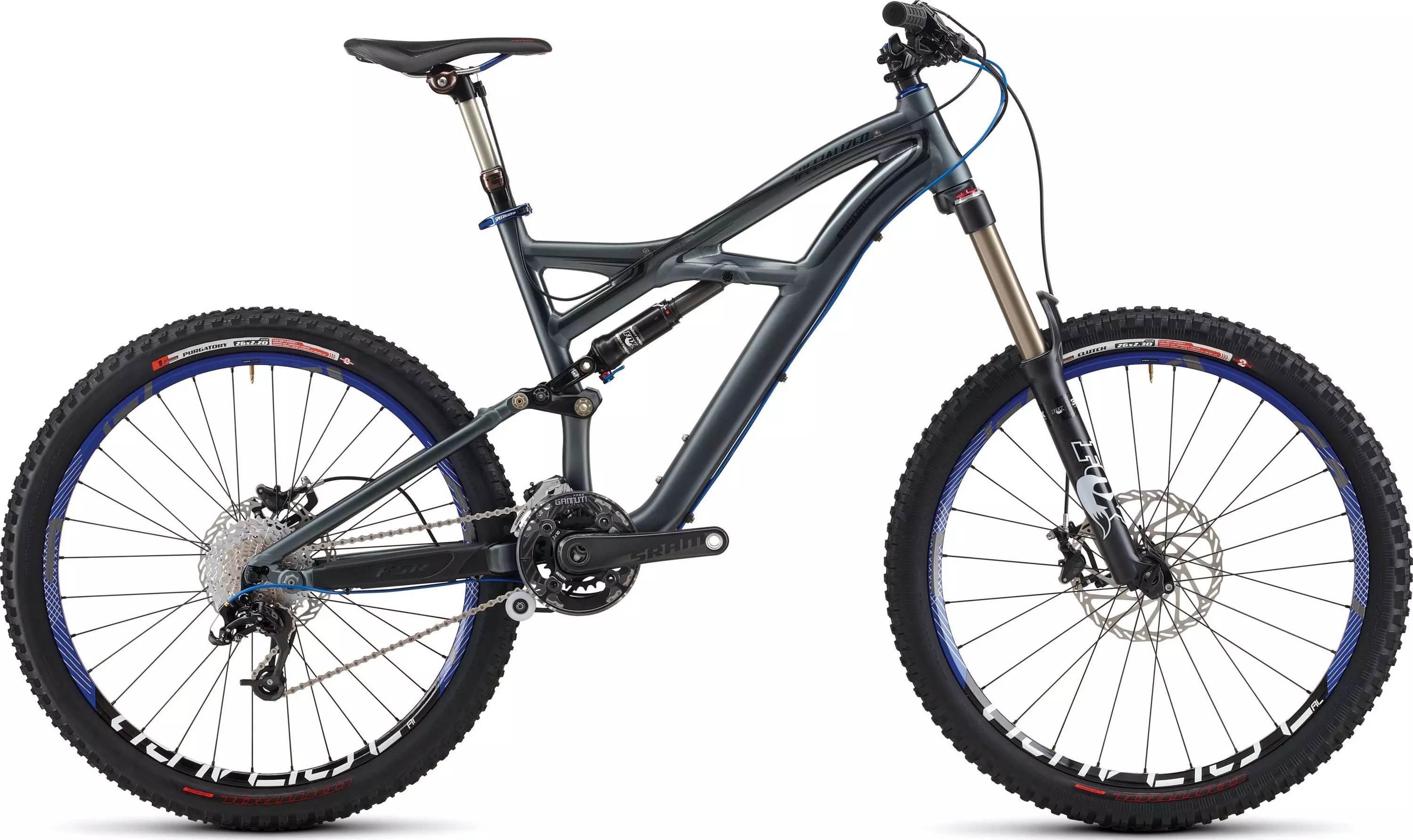

2011 Enduro Expert
5
1 Reviews
FSR rear suspension paired with Fox shocks front and rear guarantees the Expert equally…
Product Details
FSR rear suspension paired with Fox shocks front and rear guarantees the Expert equally excellent small bump performance and big hit absorption.
Newly revamped for increased stiffness, the Roval Traverse AL all-mountain wheelset, with DT Swiss internals and 20mm thru-axle, offers mountain-leveling durability and light weight
Super light, custom SRAM Carbon S-2200 10-speed double crankset with GXP spindle, Gamut shift guide and removable spider for stiffness, performance, and durability
Specialized Command Post is a 3-position adjustable-height seatpost with remote lever for on-the-fly changes to riding position, 125mm travel
Custom Fox RP23-S shock features position-sensitive Boost Valve damping, low-speed compression damping with 3-way adjustable “open” and “climbing” settings - meaning, great bump performance and solid climbing efficiency
Buttery smooth Fox 36 Float R 160mm fork with 20mm thru-axle, tapered alloy steerer, and rebound adjust is stiff, super light, and strong for all-mountain madness
Avid Elixir CR SL lightweight hydraulic disc brakes/levers with alloy backed semi-metallic pads and tool-free reach and pad contact adjustment for superb control and modulation
Technical Specifications
FRAMESET
FRAME
M5 alloy, fully manipulated frame w/ ORE TT/ DT, tapered and forged HT, ISCG mount, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm travel
HEADSET
1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
Fox RP23 with Boost Valve, reb and separate climbing setting and custom 3-position low-speed comp adj., 8.5x2.125""
FORK
Fox 36 Float R, air spring, tapered alloy steerer, reb adj., 20mm thru-axle, 160mm
WHEELS
RIMS
Roval Traverse AL, alloy disc, 26mm, 27/32h
FRONT HUB
Roval Traverse AL, alloy, 20mm thru-axle, 27h
REAR HUB
Roval Traverse AL, QR, 32h
SPOKES
DT Swiss Competition 1.8/1.6mm stainless
FRONT TIRE
Specialized Clutch Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.3""
REAR TIRE
Purgatory Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.2""
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X.7, 10-speed, S1 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X.0, 10-speed, mid cage
SHIFT LEVERS
SRAM X.9, 10-speed, aluminum trigger
CASSETTE
Shimano HG81, 10-speed, 11-36t
CHAIN
KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET
Custom SRAM Carbon S-2200, 10-speed AM double, GXP spindle, removeable spider, Gamut Shift Guide, S: 170mm, others: 175mm
CHAINRINGS
36A x 24A, 4-bolt, 104/64mm
BOTTOM BRACKET
SRAM GXP, outboard bearing
COCKPIT
SEATPOST
Specialized Command Post, 3 position, 125mm adjustable height w/air spring, remote operated, single bolt head
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS
Specialized Enduro low-rise bar, 7050 alloy, 720mm wide, 8 degree backsweep, 6 degree up, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Other: Rocca
SADDLE
Specialized BG Henge Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 203mm rotor
REAR BRAKE
Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 185mm rotor
BRAKE LEVERS
Custom Avid Elixir CR SL, hydraulic disc, tool-less reach and pad contact adj., alloy lever blade
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
