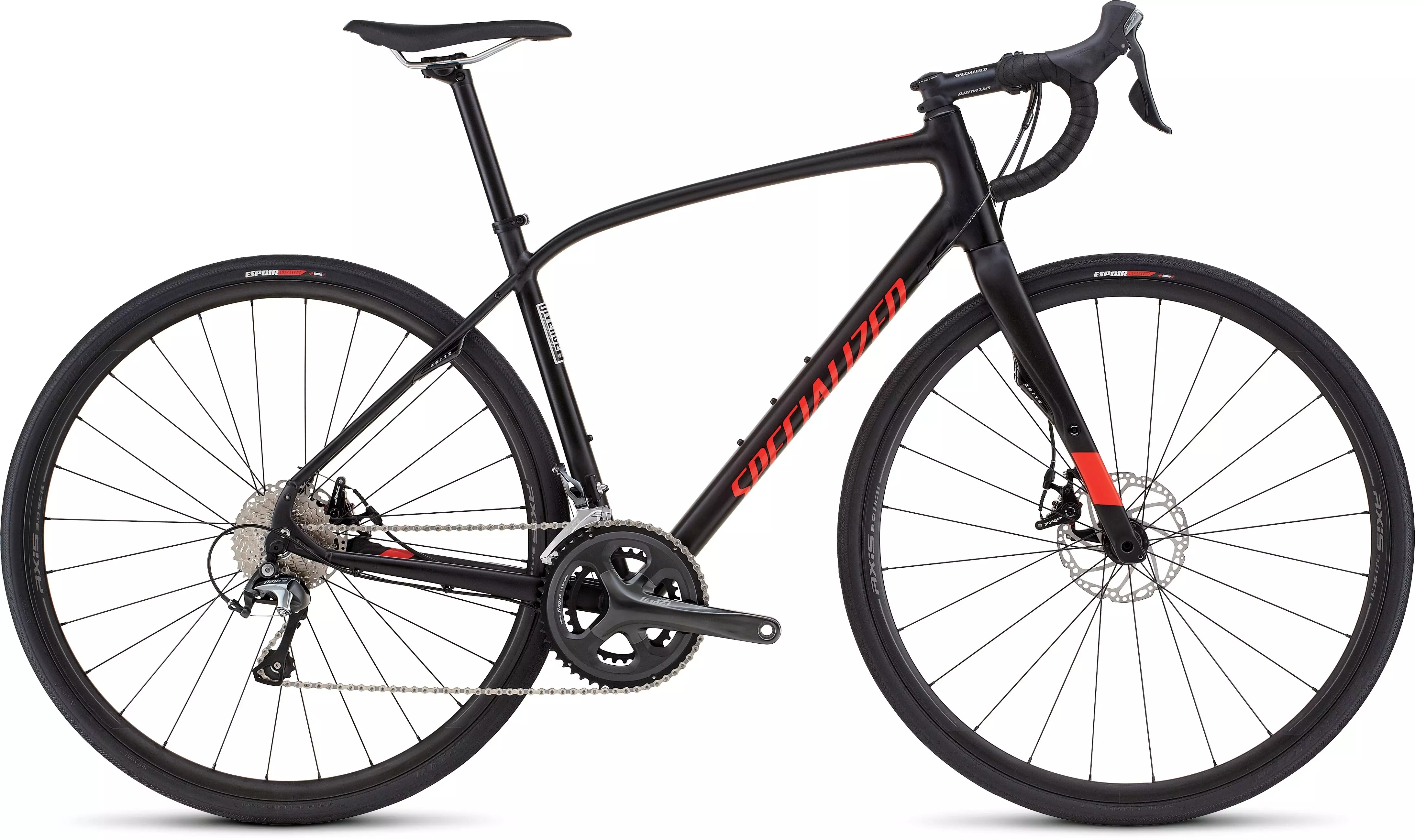

2016 Diverge Elite DSW

4.7

3 Reviews

The Diverge Elite DSW has everything you need to start going farther than you ever…

Product Details

Add Icon

The Diverge Elite DSW has everything you need to start going farther than you ever thought possible. With its D'Aluisio Smartweld Technology E5 Premium Aluminum frame that increases stiffness while also improving compliance, no road surface is off-limits. Additionally, its confident and stable handling in varying conditions, along with the reliability of the Shimano Tiagra build, make the Diverge Elite DSW perfectly suited to take your explorations to the next level.

  • All of the performance and compliance of our carbon Diverge in an E5 Premium Aluminum frame option. It features D'Aluisio Smartweld Technology that increases stiffness, while the FACT carbon fork provides excellent steering response over varying terrain.

  • Coupled with an 11-32t Shimano Tiagra rear cassette, the compact Shimano Tiagra crankset helps you get up any hill.

  • AXIS 3.0 Disc wheelset is a reliable and durable option, while the Roubaix Pro tires with Blackbelt protection keep flats at bay over rough terrain.

Technical Specifications

Add Icon

FRAMESET

SEAT BINDER

Alloy, 31.8mm

FORK

Specialized FACT carbon w/ Zertz, tapered

HEADSET

1-1/8 upper, 1-1/4"" lower, Campy style, crown race, 20mm carbon cone spacer, w/ 20mm of carbon spacers

FRAME

Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld technology, tapered head tube, OSBB

WHEELS

FRONT WHEEL

AXIS 3.0 Disc SCS

REAR WHEEL

AXIS 3.0 Disc SCS

FRONT TIRE

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x30mm

REAR TIRE

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x30mm

INNER TUBES

Standard, Presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tiagra, 10-speed, braze-on

REAR DERAILLEUR

Shimano Tiagra, 10-speed, long cage

SHIFT LEVERS

Shimano Tiagra STI, 10-speed

CASSETTE

Shimano Tiagra, 10-speed, 11-32t

CHAIN

KMC X10, 10-speed, w/ reusable MissingLink

CRANKSET

Shimano Tiagra, compact, 50/34T

COCKPIT

TAPE

Specialized Roubaix, w/ 2.5mm gel pads

SEATPOST

Specialized Sport, alloy, 2-bolt, 27.2mm

HANDLEBARS

Specialized, shallow drop, alloy, 125mm drop, 70mm short-reach

STEM

Specialized 3D forged alloy, 4-bolt, 6-degree rise

SADDLE

Body Geometry Toupé Sport, steel rails, 143mm

BRAKES

FRONT BRAKE

Tektro Spyre, mechanical disc, dual pivot, 160mm rotor

REAR BRAKE

Tektro Spyre, mechanical disc, dual pivot, 140mm rotor

ACCESSORIES

PEDALS

Nylon, loose ball bearings, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
0

Rider Reviews

4.7

3 Reviews



I have enjoyed this bike.

This was my first bike and my intro into the world of cycling. For 1500, I got a quality bike that has taken me on a century and a triathlon, and I plan on using it for much more in the future. It also looks way better in person than in the pictures.


Name:
Jayden

Helpful?

Great all around bike

I was looking at the tarmac when I came across the Diverge Elite DSW and found out it was created for canal/fire paths and the road which made it a very versatile bike based on my needs. The bike rides and shifts very smoothly, climbs hills like a champ, and great for long rides. I've had the bike just about 12 months and completed a century bike race and a triathlon on it and I never think twice about my choice. The bike has just over 1,000 miles on it and the only modification made was the tires for the races (700x28)


Name:
Jay

Helpful?

Smooth Ride and Very Efficient

Purchased this bike to replace an aging 2000 Trek USPS 5200. Even though the Specialized Diverge Elite DSW is made of aluminum and my Trek is full carbon, the Diverge felt smoother and more compliant than my Trek. My LBS said that the new aluminum bikes have a more compliant ride that my early carbon Trek road bike. I do not feel that I have given up much in terms of top speed and with the lower gearing that my Trek, I feel I can climb better in my ""zone"". Overall bump and road imperfection absorption is first rate. It seems those Zertz inserts must be doing their job. The overall handling even at 45 mph going downhill is very stable. I like the more upright position over my Trek so that on longer rides I do not feel as much neck and shoulder discomfort. Getting older you know! I tried similar bikes from Trek, Felt, and Giant but came back to the Specialized that seemed to have the overall best ride, handling and comfort. Even though it is approximately six pounds heavier than my Trek, the only time I feel this weight difference is during a sprint or a short climb. Overall, I would recommend you demo this bike. It will be one of your top choices if you are looking for a bike in this sector.


Name:
Traffic B.

Helpful?
