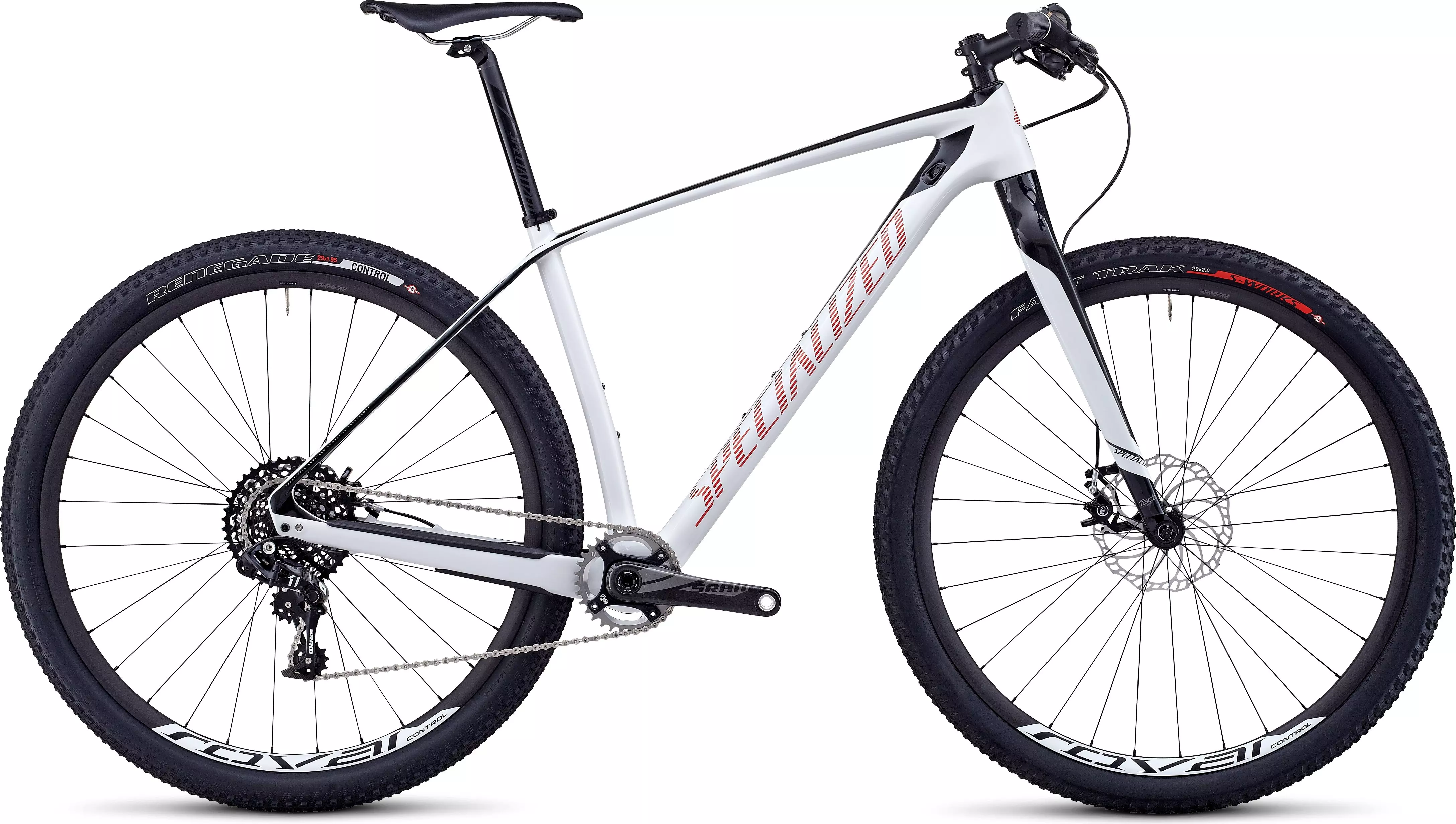

2014 Stumpjumper Expert Carbon 29 World Cup
0 Reviews
The Stumpjumper HT Expert Carbon is a purpose-built cross-country race machine with…
Product Details
The Stumpjumper HT Expert Carbon is a purpose-built cross-country race machine with a 1x10 drivetrain and a mega-light Chisel carbon fork.
All-new FACT IS 10m carbon frame with dedicated 29er geometry and full SWAT technology compatibility, internal cable routing, PF30 BB, and 142mm dropouts for the lightest race-ready design
The mega-light Chisel carbon rigid fork has a monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount for those rigid purists
Roval Control Carbon 29 142+ hookless carbon wheelset with durable DT Swiss internals, 15mm thru-axle, and stainless DT Swiss spokes brings carbon wheels to a whole new realm of fun
Dedicated to lightweight racing, the World Cup frame comes without a front derailleur. Shifting is handled beautifully by SRAM's new X01 11-speed shifting with an 11-42 cassette.
Magura MTS hydraulic disc brakes with a carbon master cylinder and reach adjust provide consistent and reliable stopping power
Technical Specifications
FRAMESET
FRAME
FACT 10m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142+ dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, single bolt, 31.8mm
SUSPENSION
FORK
Specialized Chisel, suspension corrected carbon rigid fork, monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount, OS28 end caps
WHEELS
RIMS
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
FRONT HUB
Roval Control Carbon 29, 9mm QR, 32h
REAR HUB
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
S-Works Fast Trak, 2Bliss Ready, 29x2.0"", foldable aramid bead, 120 TPI
REAR TIRE
Specialized Renegade Control, 2Bliss Ready, 29x1.95"", foldable aramid bead, 60 TPI
DRIVETRAIN
REAR DERAILLEUR
SRAM X01 Type 2, 11-speed, mid cage
SHIFT LEVERS
SRAM X01, 11-speed, trigger
CASSETTE
SRAM X01, 11-speed, 10-42
CHAIN
SRAM X01, 11-speed, hollow plates/pins, PowerLink
CRANKSET
Custom SRAM carbon S-2200, custom SRAM XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CHAINRINGS
32T
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 27.2mm, S: 350mm, Others: 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC, flat bar, 2014 butted alloy, 700mm wide, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
BRAKES
FRONT BRAKE
Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor
REAR BRAKE
Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor
BRAKE LEVERS
Magura MTS, carbon master cylinder, alloy lever blade, hollow lever pivot, reach adj.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
