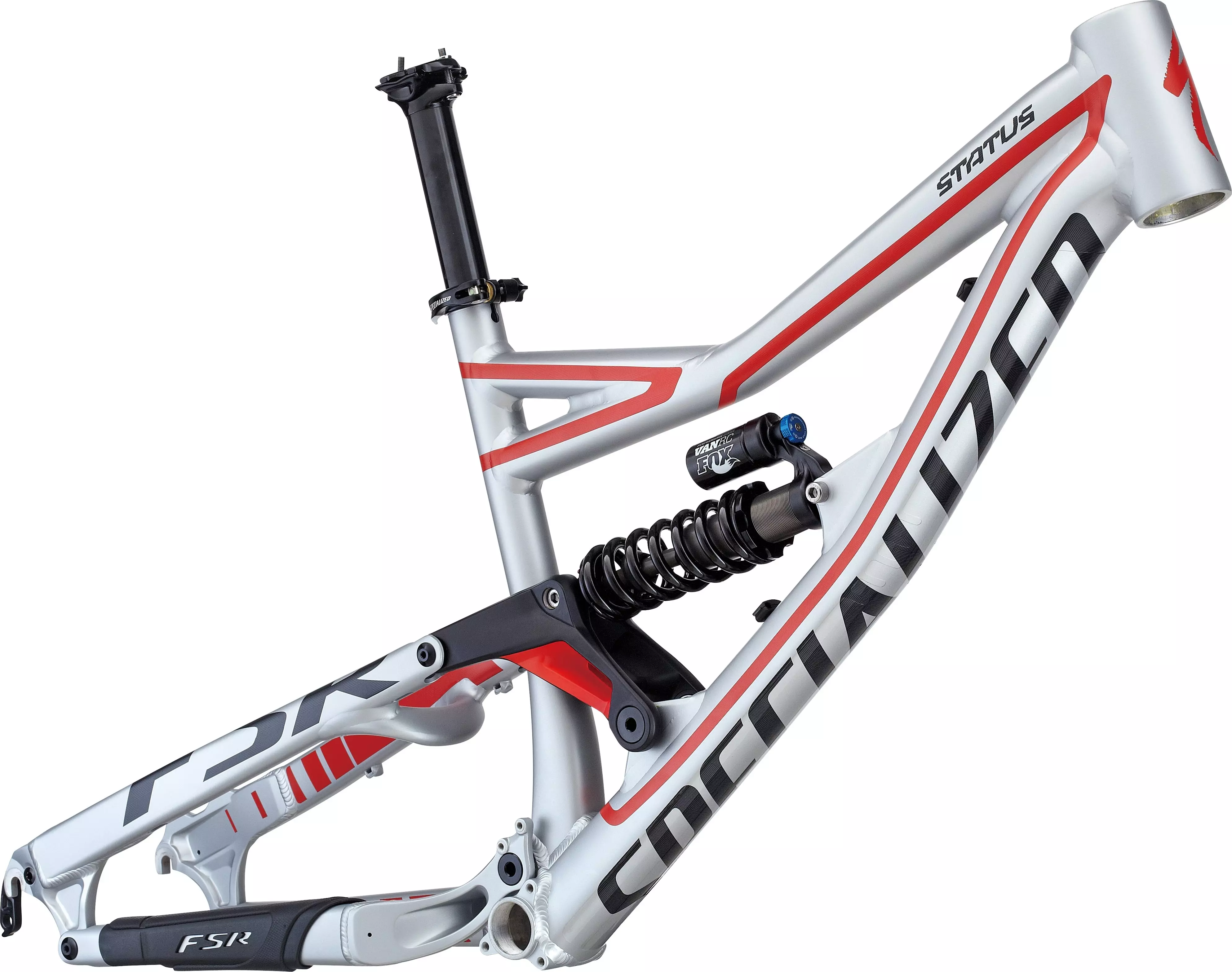

2014 Status Frame
Part No.: 73714-7001
0 Reviews
Build your own 200mm-travel downhill bike with the all-new Status FSR frameset. It…
Colour:
Satin Silver/Red/Black
Size:
One Size
Product Details
Build your own 200mm-travel downhill bike with the all-new Status FSR frameset. It features a 135mm rear hub spacing, FSR suspension, Custom-tuned FOX Van RC coil shock, and a 1.5" head tube.
Custom-tuned FOX Van RC coil shock is designed for high-speed downhill terrain, and features easily adjustable rebound, compression and preload
M4 alloy, 200mm-travel FSR frame with 1.5" head tube, full-cartridge bearing pivots and ISCG mounts makes the Status ready to handle the most technical descents
Technical Specifications
FRAMESET
FRAME
M4 hydroformed tubing, 1.5"" forged headtube, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 200mm travel
HEADSET
Semi-integrated alloy cups for 1-1/2"" headtube and 1-1/8"" steerer, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, w/ QR, 34.9mm, black
SUSPENSION
REAR SHOCK
Custom FOX VAN RC, coil w/ piggy back, compression and reb adj., 8.75x2.75"", S: 400, M: 450, L: 500
COCKPIT
SEATPOST
Specialized 6061 alloy, 2-bolt micro-adjust, no offset, 30.9mm, 300mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Seat Tube Length, Center to Top | 394mm | 394mm | 419mm | 458mm |
| Top Tube Length, Actual | 510mm | 531mm | 553mm | 574mm |
| Bottom Bracket Drop | -14.5mm | -14.5mm | -14.5mm | -14.5mm |
| Bottom Bracket Height | 355mm | 355mm | 355mm | 355mm |
| Seat Tube Angle, Actual | 71° | 71° | 71° | 71° |
| Seat Tube Angle, Effective | 75° | 75° | 75° | 75° |
| Wheel Base | 1164mm | 1164mm | 1189mm | 1214mm |
| Standover Height | 746mm | 746mm | 743mm | 759mm |
| Stack | 646mm | 646mm | 646mm | 646mm |
| Reach | 375mm | 420mm | 425mm | 450mm |
| Head Tube Length | 120mm | 120mm | 120mm | 120mm |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Front Center | 739mm | 739mm | 764mm | 789mm |
| Chainstay Length | 426mm | 426mm | 426mm | 426mm |
| Top Tube Length, Horizontal | 533mm | 558mm | 583mm | 608mm |
| Crank Length | 165mm | 165mm | 165mm | 165mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 45mm | 45mm | 45mm | 45mm |
| Seatpost Length | 300mm | 300mm | 300mm | 300mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
