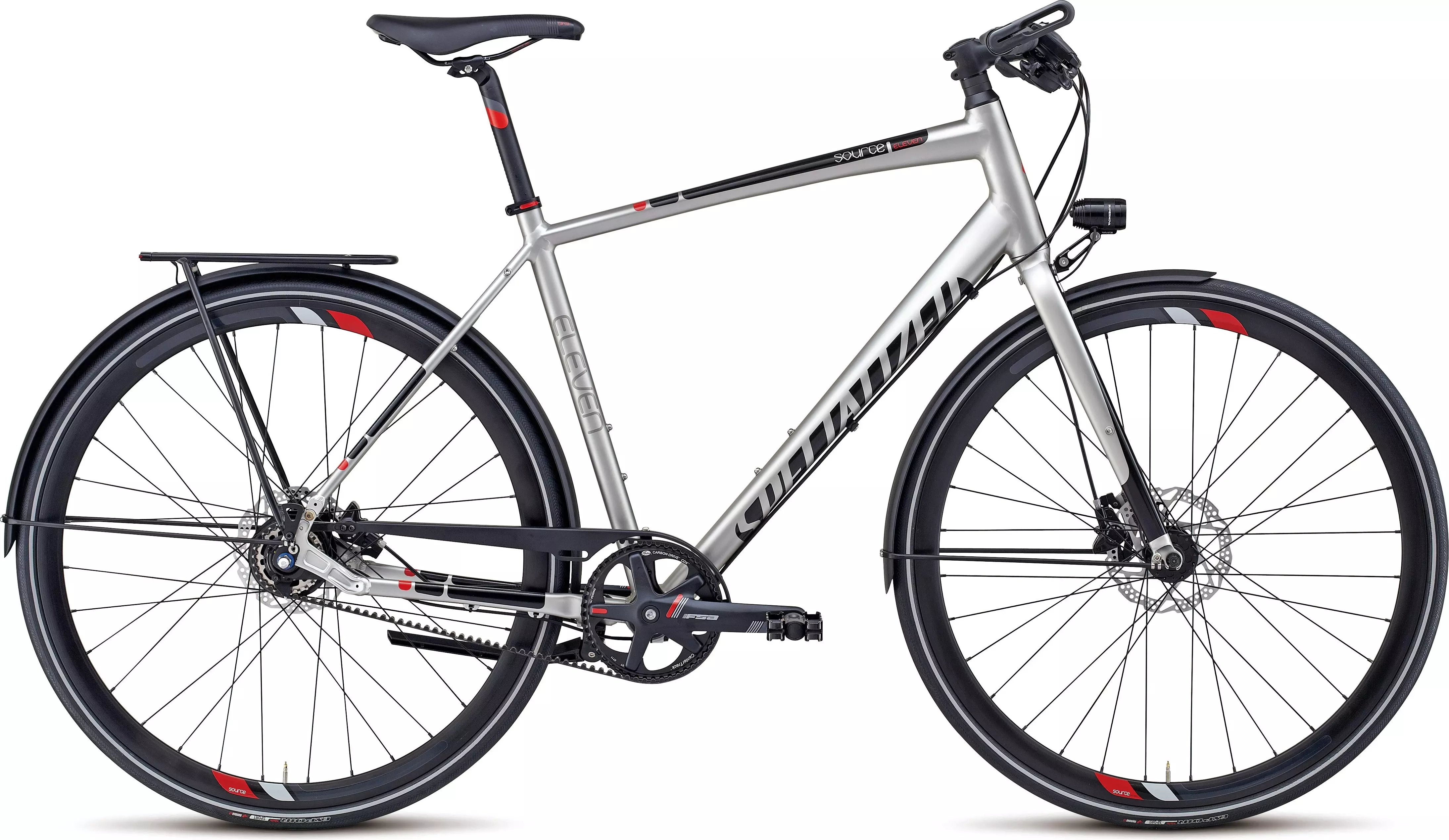

2014 Source Eleven Disc
Part No.: 91014-1002
0 Reviews
A true multi-tasker for anything from commuting to a weekend camping trek down the…
Colour:
Silver/Satin Black/Red
Size:
S
Product Details
A true multi-tasker for anything from commuting to a weekend camping trek down the coast with loaded panniers, the Source Eleven does it all anytime, anywhere with disc brakes and integrated lights, rack, and fenders, plus 11-speed Shimano Alfine internal gearing with belt drive for the ultimate in low-maintenance efficiency.
Shimano Alfine, 11-speed internal hub is the epitome of quality, versatility, and simplicity
Supernova E3 Pro headlight supplies over 300 lumens of light, while a minimal but super-bright taillight keeps you safe on the road, anytime. Both are powered by a featherlight and extremely low drag Supernova Infinity S hub dynamo
Super-light, E5 fully-manipulated alloy frame is built for high speed, low-fuss, and great versatility, with tapered headtube, internal routing, rack/fender mounts, and wide tire clearance, includes open rear triangle for belt drive
Sturdy alloy fork with Cr-Mo steerer, fender/rack mounts, and internal light cable routing for the ultimate multi-purpose bike
Super-light and compact Racktime Ultra hollow alloy rack lets you carry supplies without adding a lot of bulk, max load 10kg
Strong, reliable, Shimano dual-piston hydraulic disc brakes for sure stopping and control in any weather with any load
Technical Specifications
FRAMESET
FRAME
Specialized E5 Premium Aluminum, fully manipulated tubing w/ smooth welds, integrated headset, w/ fender/rack eyelets, internal cable routing, center kickstand plate, eccentric BB adjuster
HEADSET
1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer, w/ 25mm of spacers
SEAT BINDER
Alloy, 31.2mm
SUSPENSION
FORK
Aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets
WHEELS
RIMS
Disc, alloy double-wall, sleeve joint, 32h
FRONT HUB
Supernova Infinity S hub dynamo, 32h
REAR HUB
Shimano Alfine, 11-speed internal, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Espoir Sport Reflect, 60 TPI, wire bead, double BlackBelt protection, 700x30c
REAR TIRE
Specialized Espoir Sport Reflect, 60 TPI, wire bead, double BlackBelt protection, 700x30c
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Alfine, 11-speed, Rapidfire
CASSETTE
Gates Centerline, 26T
CHAIN
Gates Centerline Belt
CRANKSET
FSA, forged, single ring, 170mm length
CHAINRINGS
50T, forged alloy track, for beltdrive
BOTTOM BRACKET
FSA GXP, external bearings
COCKPIT
SADDLE
Body Geometry Targa Comp, 143mm
SEATPOST
Alloy, 2-bolt, 12.5mm offset, 27.2mm
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt clamp, 31.8mm
HANDLEBARS
Flat bar, double-butted alloy, 10-degree backsweep, 31.8mm
GRIPS
Body Geometry Targa, lock-on
BRAKES
FRONT BRAKE
Shimano BR-M446, hydraulic disc, 160mm rotor
REAR BRAKE
Shimano BR-M446, hydraulic disc, 160mm rotor
BRAKE LEVERS
Shimano, hydraulic lever
ACCESSORIES
PEDALS
Nylon body, alloy cage, toe clip capable
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 73.25° | 73.5° | 73° | 73° |
| Head-Tube Length | 150mm | 165mm | 190mm | 225mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 71° | 71.5° | 72° | 72° |
| Chain-Stay Length | 450mm | 450mm | 450mm | 450mm |
| Top-Tube Length, Horizontal | 570mm | 580mm | 600mm | 620mm |
| Front-Center | 629mm | 637mm | 647mm | 667mm |
| Handle-Bar Width | 580mm | 580mm | 580mm | 580mm |
| Stand-Over Height | 750mm | 786mm | 821mm | 859mm |
| Seat-Tube Length, B-B Center to Top | 440mm | 485mm | 530mm | 570mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm |
| Trail | 66mm | 63mm | 60mm | 60mm |
| Wheelbase | 1070mm | 1078mm | 1087mm | 1108mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 90mm | 90mm | 100mm | 100mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
