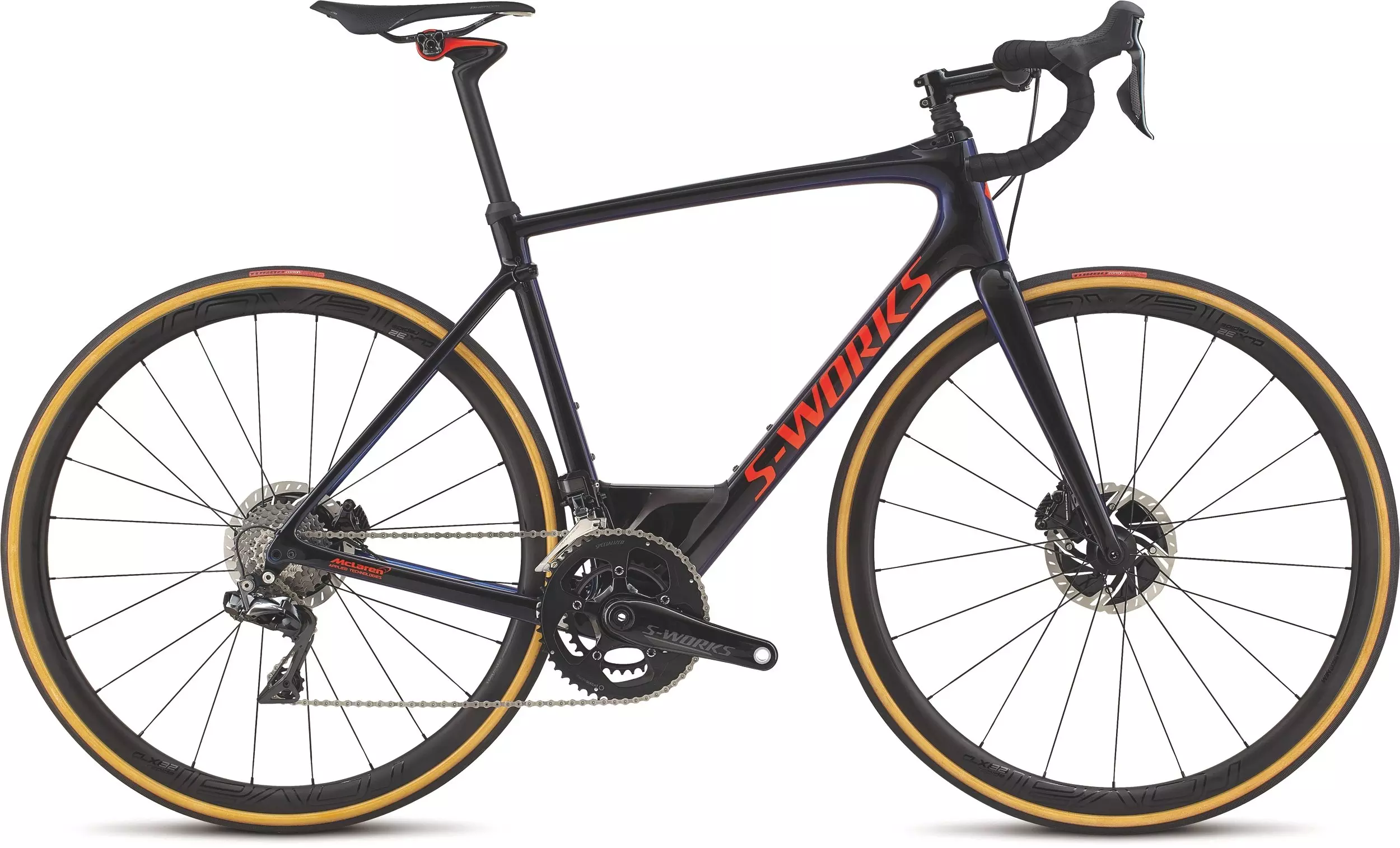

2017 S-Works Roubaix Di2

0 Reviews

Every road has its flaws, and you need one bike that takes them all head-on without…

Colour:

Gloss Tarmac Blk/Chameleon Edge Fade/Rkt Red/Clean

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Specialized loading animation

Select a Size

Product Details

Add Icon

Every road has its flaws, and you need one bike that takes them all head-on without losing an ounce of performance. If this is ringing true, the S-Works Roubaix with Dura-Ace Di2 is for you. The frame is the lightest that we've ever made, and it's been constructed from our top-end FACT 11r carbon fiber. Its stiffness levels are also off the charts, and compared to the SL4 iteration of yesteryear, you'll experience a whole new, faster, and more efficient geometry. Through some engineering sorcery, however, we've managed to keep the same fit, feel, and position that we've all come to love from the SL4. Of course, you're probably thinking, ""get on to the suspension thing up front."" We call it the Future Shock, and essentially, it's a spring-based piston in the head tube with 20mm of travel. We developed this technology in partnership with McLaren Applied Technologies, and the result of this are a host of drastic performance improvements, namely in the vertical compliance department. Without giving a physics lecture, we found that focusing on axial compliance, instead of fork splay, meant that we could improve smoothness, speed, and comfort in one fell swoop. And of all the bikes that we've tested with our Rolling Efficiency Model, the new Roubaix outperforms anything on the market. Lastly, we spec'd it top of the line equipment, like the futuristic Shimano Dura-Ace Di2 shifting and our all-new Roval CLX 32 carbon wheels.

  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary responsiveness and smooth ride quality that you'd expect from a Roubaix. The S-Works FACT 11r frameset is our highest quality carbon frame, offering the ideal blend of light overall weight and targeted stiffness, while the all-new Road Control "suspension" system at the cockpit delivers a revolutionary degree of comfort and control.

  • An S-Works Roubaix Disc fork is built from our top-end FACT 11r carbon fiber for supreme stiffness, strength, and reactivity, while a thru-axle design only stands to bolster all of the above.

  • Shimano Dura-Ace Di2 shifting offers 11-speeds of electronic wonderment. Shifts are as precise as it gets and the trim adjust up front ensures that chain rub is a thing of the past—no matter how extreme your cross-chaining gets.

  • Comes equipped with a 40lbs spring (color: yellow, weight: firm) installed, and also includes both 13lbs (color: blue, weight: soft) and 25lbs (color: black, weight: medium) springs that can be installed to match the terrain you're riding.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 11r carbon, Endurance Geometry, Rider-First Engineered™, 12x142mm thru-axle, Future Shock suspension, 20mm of travel, flat disc mounts

FORK

S-Works FACT carbon, 12x100mm thru-axle

WHEELS

INNER TUBES

700x20/28mm, 48mm Presta valve

FRONT WHEEL

CLX 32 Disc, thru-axle, 2Bliss Ready

REAR WHEEL

CLX 32 Disc, thru-axle, 2Bliss Ready

FRONT TIRE

S-Works Turbo Road Tubeless, 700x26mm, 180TPI, folding bead, BlackBelt Protection, Gripton

REAR TIRE

S-Works Turbo Road Tubeless, 700x26mm, 180TPI, folding bead, BlackBelt Protection, Gripton

DRIVETRAIN

SHIFT LEVERS

Shimano Dura-Ace Di2 Disc

CASSETTE

Shimano Dura-Ace cassette, 11-speed, 11-30t

CRANKSET

S-Works FACT Carbon

CHAINRINGS

Specialized by Praxis 50/34T

BOTTOM BRACKET

OSBB, CeramicSpeed bearings

CHAIN

Shimano HG901, 11-speed

FRONT DERAILLEUR

Shimano Dura-Ace Di2 front derailleur, braze-on

REAR DERAILLEUR

Shimano Dura-Ace Di2 rear derailleur, 11-speed

COCKPIT

HANDLEBARS

S-Works Hover Carbon, 15mm rise, 125mm drop, 75mm reach

SADDLE

Body Geometry S-Works Phenom GT, carbon rails, 143mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, 27.2mm

STEM

S-Works SL, alloy, titanium bolts, 6-degree rise

TAPE

S-Wrap Roubaix w/sticky gel

BRAKES

FRONT BRAKE

Shimano Dura-Ace hydraulic, Ice-Tech resin pads w/fins

REAR BRAKE

Shimano Dura-Ace hydraulic, Ice-Tech resin pads w/fins

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length75mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length350mm350mm400mm400mm400mm450mm
Seat-Tube Angle74°74°74°73.5°73.5°73.5°
Head-Tube Length90mm110mm125mm150mm185mm205mm
Head-Tube Angle72°72.25°72.75°73.5°73.5°74°
Chain-Stay Length413mm413mm415mm415mm418mm418mm
Top-Tube Length, Horizontal527mm534.9mm545mm561.8mm576.3mm588.5mm
Front-Center580mm586mm584mm590mm605mm612mm
Stand-Over Height715.5mm743mm762mm785mm813mm844.3mm
Seat-Tube Length, B-B Center to Top425mm462mm481mm501mm522mm563mm
Fork Rake50mm50mm44mm44mm44mm44mm
B-B Drop77.5mm77.5mm76mm76mm74.5mm74.5mm
Stack549mm569mm585mm611mm644mm665mm
Reach369mm371mm375mm381mm386mm392mm
Trail58.5mm57mm61mm55mm55mm52mm
Wheelbase981mm987mm987mm993mm1011mm1018mm
