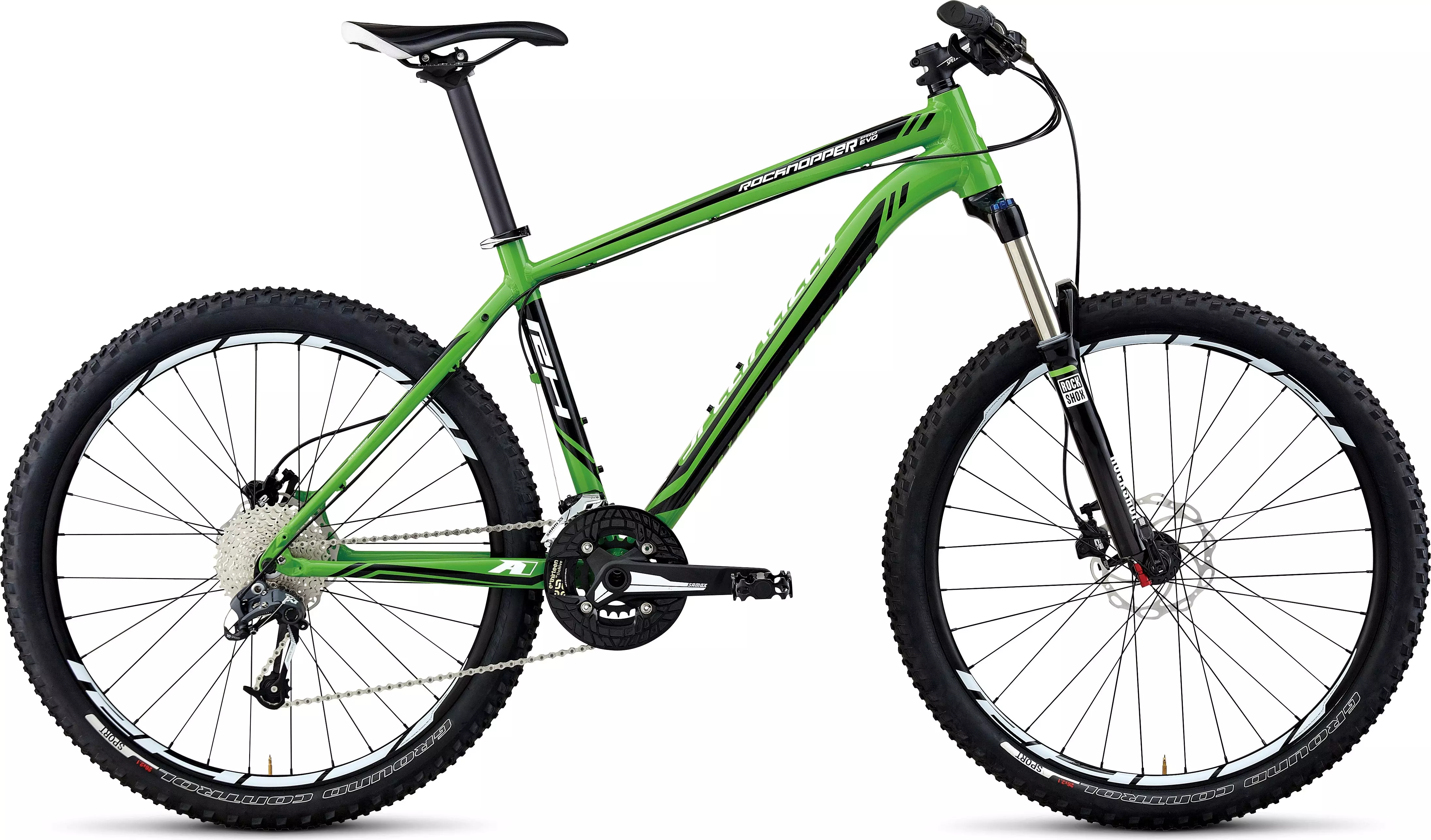

2014 Rockhopper Pro EVO 26
Part No.: 91214-1301
0 Reviews
Trails were built to be ridden hard, that's what the Rockhopper EVO does best. With…
Colour:
Gloss Grn/Blk/Wht
Size:
One Size
Product Details
Trails were built to be ridden hard, that's what the Rockhopper EVO does best. With a 120mm fork, slightly more relaxed geometry, and an e.thirteen bash guard, the EVO will hold up to the toughest trails.
The EVO model uses the same fully butted A1 Premium frame as other Rockhopper models, but delivers a more aggressive trail experience. The 120mm-travel RockShox fork relaxes the geometry for more stable handling, and a bash guard improves chain retention and drive train durability
RockShox XC32 features TurnKey hydraulic damping with lockout, Solo Air spring, tapered alloy steerer tube, and externally adjustable rebound for plush and lightweight trail performance with a 15mm Maxle for increased stiffness
Custom forged alloy, 10-speed XC crankset with e.thirteen Turbocharger bash guard offers lightweight and durable performance
Tektro Draco 2 hydraulic disc brakes/levers with Light Wave rotors create increased control and superior stopping power for more confident braking
SRAM X7 Type 2, 10-speed rear derailleur for reliable, high-end performance
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Trail Geometry, fully butted w/ tapered headtube, forged dropouts, replaceable alloy derailleur hanger
HEADSET
1-1/8"" upper and 1-1/2"" lower threadless, Campy style, integrated full cartridge bearings
SEAT BINDER
Forged alloy, 31.8mm, QR, nylon washer
SUSPENSION
FORK
RockShox XC32 26, TurnKey damping w/ lockout, Solo Air spring, tapered alloy steerer, external rebound adj., 15mm thru-axle, 32 mm stanchions, S: 100mm travel, Others: 120mm travel
WHEELS
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Ground Control, 26x2.1"", Aramid bead, 60TPI
REAR TIRE
Specialized Ground Control, 26x2.1"", Aramid bead, 60TPI
INNER TUBES
Standard presta valve
RIMS
RH Disc 26"", alloy double-wall, 26mm, pin joint, 32h
FRONT HUB
Specialized disc, alloy, Hi Lo flange, sealed bearings, alloy axle, 15mm thru axle, 32h
REAR HUB
Specialized disc, alloy, Hi Lo flange, RCC ball bearing system, steel axle, steel cassette body, QR, 32h
DRIVETRAIN
FRONT DERAILLEUR
SRAM X5, 10-speed 2X10, 34.9mm clamp
REAR DERAILLEUR
SRAM X7 Type 2, 10-speed, long cage
SHIFT LEVERS
SRAM X5, 10-speed trigger
CASSETTE
Sunrace, 10-speed, 11-36
CHAIN
KMC X10
CRANKSET
Custom Samox, 2pc., forged arm, 2x10 w/ e.13 Turbocharger bash guard, 170mm/175mm
CHAINRINGS
38/24, aluminum
BOTTOM BRACKET
GXP BB for 2pc., 73mm shell
COCKPIT
STEM
Specialized 3D forged alloy, 4-bolt clamp, 6-degree rise, 31.8mm
HANDLEBARS
Specialized mini riser, double-butted 6061 alloy, 680mm wide, 10-degree backsweep, 6-degree upsweep, 12mm rise, 31.8mm
GRIPS
Specialized Body Geometry XC Contour, Kraton w/ gel, closed end, 132mm, lock-on
SADDLE
Specialized Body Geometry Rockhopper, steel rails, 143mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm
BRAKES
FRONT BRAKE
Tektro Draco 2, hydraulic disc, dual piston, 160mm rotor
REAR BRAKE
Tektro Draco 2, hydraulic disc, dual piston, 160mm rotor
BRAKE LEVERS
Tektro Draco 2, hydraulic lever
ACCESSORIES
PEDALS
Alloy, 1pc. body and cage, w/ reflectors, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 13.0 | 15.5 | 17.5 | |
|---|---|---|---|
| Top Tube Length (Horizontal) | 549mm | 575mm | 599mm |
| Top Tube Length (Actual) | 531mm | 547mm | 570mm |
| Seat Tube Length, Center to Top | 330mm | 394mm | 445mm |
| Bottom Bracket Drop | 24mm | 24mm | 24mm |
| Bottom Bracket Height | 316mm | 316mm | 316mm |
| Wheel Base | 1041mm | 1067mm | 1093mm |
| Standover Height | 698mm | 743mm | 784mm |
| Stack | 572mm | 572mm | 597mm |
| Reach | 363mm | 389mm | 406mm |
| Head Tube Length | 120mm | 120mm | 130mm |
| Head Tube Angle | 69° | 69° | 69° |
| Chainstay Length | 426mm | 426mm | 426mm |
| Seat Tube Angle | 72° | 72° | 72° |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 60mm | 80mm |
| Seatpost Length | 300mm | 350mm | 350mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
