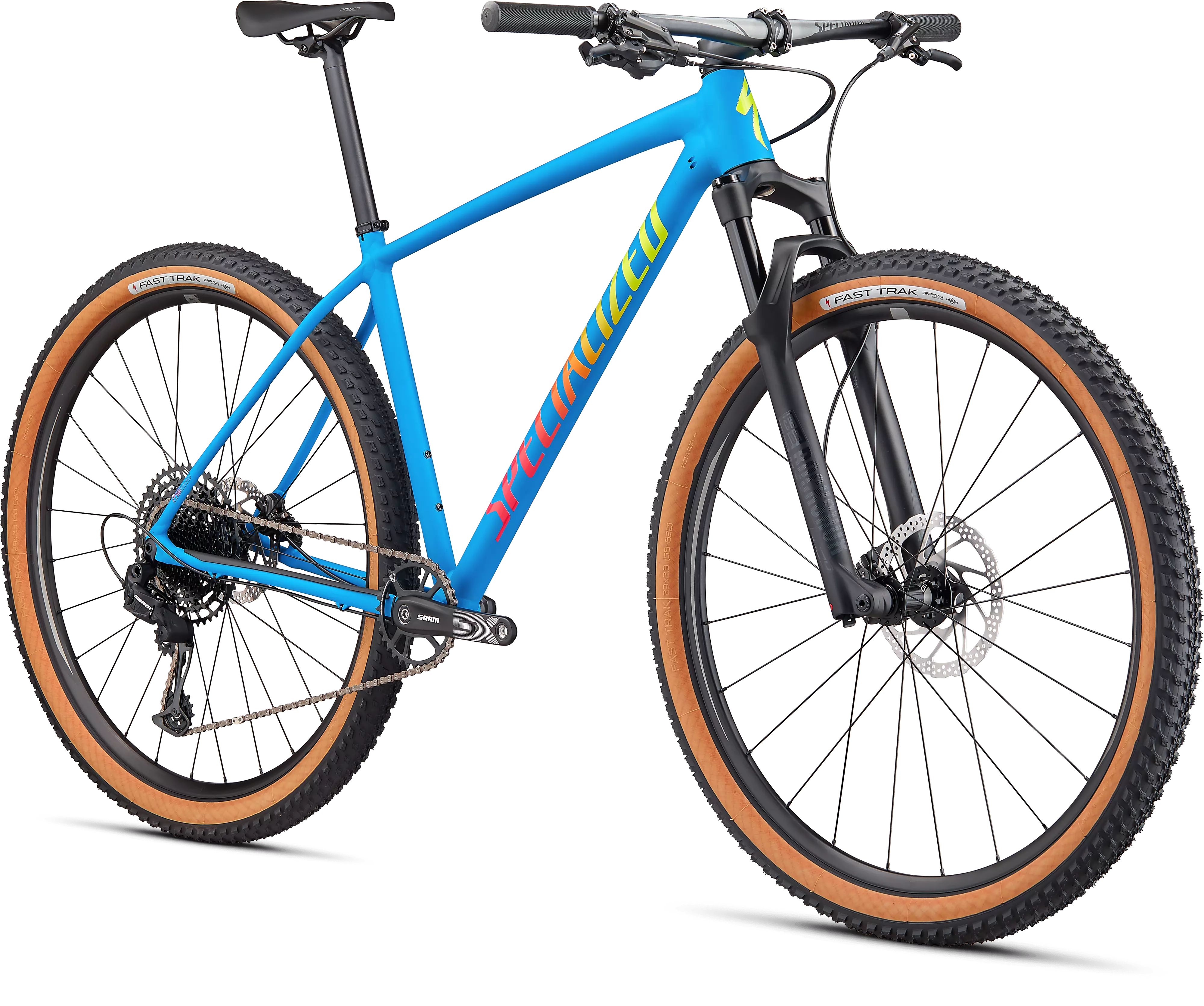

2020 Chisel Comp
5
2 Reviews
The Chisel Comp gives you everything you need to reach the top of the podium… at…
Colour:
Satin Pro Blue/Vivid Pink/Team Yellow
Select a Size
Product Details
The Chisel Comp gives you everything you need to reach the top of the podium… at a price that doesn’t break the bank. Ultralight aluminum frameset that’s stiff in all the right places, yet surprisingly compliant? Check. Stellar components? Check. Dialed geometry, that’s nimble yet confident? Check, check, and check.
PRO-LEVEL PERFORMANCE MADE AFFORDABLE
We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology was the answer. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, ultralight alloy tubes.
XC-FAST AND TRAIL-BIKE CAPABLE
Cross-country courses have grown more technical, so why we gave the Chisel a dose of trail bike DNA. The Chisel’s longer top tube, shortened head tube, and slightly slack front end increase its downhill stability without sacrificing its climbing ability.
• Light, stiff, and durable, the premium M5 alloy frame is the perfect racing platform.
• RockShox Judy Gold 29 fork, complete with lockout and adjustable rebound damping.
• SRAM’s SX Eagle 1X drivetrain gives you the gearing you need to tackle any climb.
Technical Specifications
DRIVETRAIN
Rear Derailleur
SRAM SX Eagle, 12-speed
Shift Levers
SRAM SX Eagle, trigger, 12-speed
Cassette
SRAM PG-1210 Eagle, 11-50t
Chain
SRAM SX Eagle, 12-speed
Crankset
SRAM SX Eagle, Powerspline, 165/170/175mm, 32T
Chainrings
48/35T
Bottom Bracket
SRAM Powerspline
FRAMESET
Frame
Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake
Seat Binder
Integrated w/ frame
ACCESSORIES
Pedals
WHEELS & TIRES
Spokes
Stainless, 14g
BRAKES
Front Brake
Shimano MT-501, hydraulic disc, resin pad
Rear Brake
Shimano MT-501, hydraulic disc, resin pad
WHEELS
Rims
Stout XC 29, 25mm internal width, disc-specific
Front Hub
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rear Tire
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Inner Tubes
Standard, Presta valve
COCKPIT
Handlebars
Specialized Alloy Minirise, 6.5mm rise, 750mm, 31.8mm clamp
Saddle
Body Geometry Power Sport, steel rails
Tape
Specialized Trail Grips
Stem
Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
SeatPost
Specialized Alloy, Single Bolt, 27.2mm
Suspension
Fork
RockShox Judy Gold 29, Solo Air, Motion Control damper, 51mm offset, 15x110mm thru-axle (XS: 80mm, S:90mm, M-XL: 100mm of travel)
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
