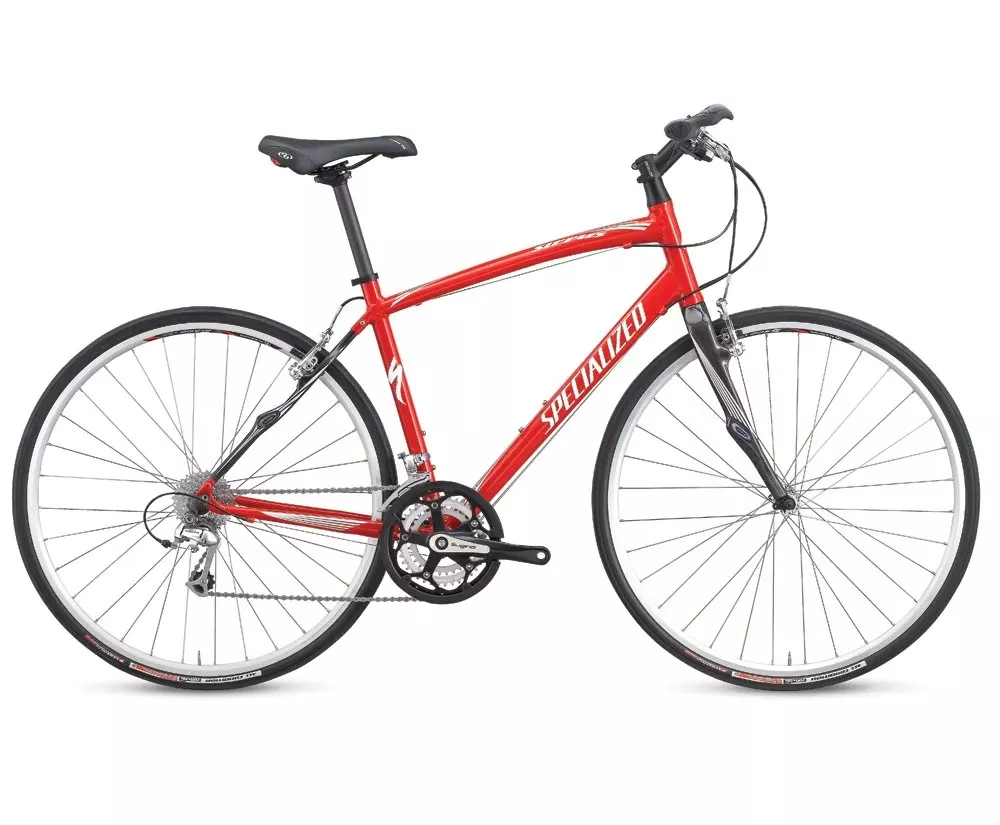

2009 Sirrus Comp
0 レビュー
IF YOU'RE ONLY GOING TO HAVE ONE BIKE the Sirrus is it. Built for the best balance…
製品の詳細
IF YOU'RE ONLY GOING TO HAVE ONE BIKE the Sirrus is it. Built for the best balance of speed and control, every FACT carbon or A1 Premium Aluminum Sirrus combines the low weight, high comfort and easy speed of our performance road bikes with the enhanced ergonomics and stability of a flat handlebar.
A1 aluminum フレームに振動を吸収するZertz インサート入りカーボンシートステーを統合
A1 aluminum フレームに振動を吸収するZertz インサート入りカーボンシートステーを統合
科学的に証明されたBody Geometry Sonoma サドルで、ライダーのデリケートな部分への圧力を低減。カーボンラップ仕様のシートポストが振動吸収をアシスト
A1 aluminum フレームに振動を吸収するZertz インサート入りカーボンシートステーを統合
技術仕様
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully manipulated tubing, compact design, integrated headset, FACT carbon seatstays w/ Zertz inserts
HEADSET
Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 40mm alloy cone with two 5mm alloy spacers
SEAT BINDER
Specialized alloy 31.8mm
SUSPENSION
FORK
Specialized FACT carbon fork legs and crown, aluminum steerer w/ Zertz inserts
WHEELS
FRONT TIRE
Specialized All Condition Armadillo, 700x28c, aramid bead, 60TPI
REAR TIRE
Specialized All Condition Armadillo, 700x28c, aramid bead, 60TPI
INNER TUBES
Specialized standard presta tube
RIMS
Alex S500, sleeve joint, CNC sidewalls, 32h
FRONT HUB
Specialized forged alloy, 32h, sealed ball bearings, QR
REAR HUB
Specialized forged alloy, 32h, double sealed ball bearings, cassette, QR
SPOKES
Stainless 14g
DRIVETRAIN
FRONT DERAILLEUR
Shimano Tiagra
REAR DERAILLEUR
Shimano Tiagra, long cage
SHIFT LEVERS
Shimano Tiagra, 9-speed flat bar shifter
CASSETTE
SRAM PG 950, 9-speed 11-28t
CHAIN
Shimano HG73, 9-speed
CRANKSET
Sugino Comp, five arm, polished
CHAINRINGS
50 x 39 x 30t
BOTTOM BRACKET
Sealed cartridge, square taper, 68mm x 113mm
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
HANDLEBARS
Specialized Event, flat 5 degree bend, butted 2014 alloy, 31.8 clamp
GRIPS
Body Geometry Comfort II, triple density gel w/ bar end
SADDLE
Body Geometry Sonoma, 155mm width
SEATPOST
Specialized carbon wrapped, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Forged 6061 alloy, 85mm linear pull, cartridge pads
REAR BRAKE
Forged 6061 alloy, 85mm linear pull, cartridge pads
BRAKE LEVERS
Tektro forged alloy for linear brakes
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。
ジオメトリー
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Ground-Top | 68mm | 68mm | 65mm | 65mm | 65mm |
| Seat-Tube Angle | 71° | 62° | 58° | 55° | 52° |
| Head-Tube Angle | 606° | 608° | 611° | 622° | 637° |
| Chain-Stay Length | 51mm | 51mm | 51mm | 51mm | 51mm |
| Top-Tube Length, Horizontal | 76mm | 75mm | 74mm | 73.5mm | 73mm |
| Front-Center | 135mm | 155mm | 185mm | 215mm | 250mm |
| Handle-Bar Width | 0mm | 0mm | 0mm | 0mm | 0mm |
| Seat-Tube Length, B-B Center to Top | 430mm | 425mm | 425mm | 425mm | 425mm |
| Fork Rake | 1026mm | 1023mm | 1027mm | 1038mm | 1053mm |
| B-B Drop | 70mm | 71.5mm | 72mm | 72.5mm | 73mm |
| Stack | 400mm | 445mm | 480mm | 515mm | 565mm |
| Reach | 520mm | 540mm | 555mm | 575mm | 600mm |
| Trail | 719mm | 752mm | 785mm | 817mm | 858mm |
マニュアルのダウンロード
安全性についての注意事項はこのページのマニュアルダウンロードセクションよりご確認ください。
