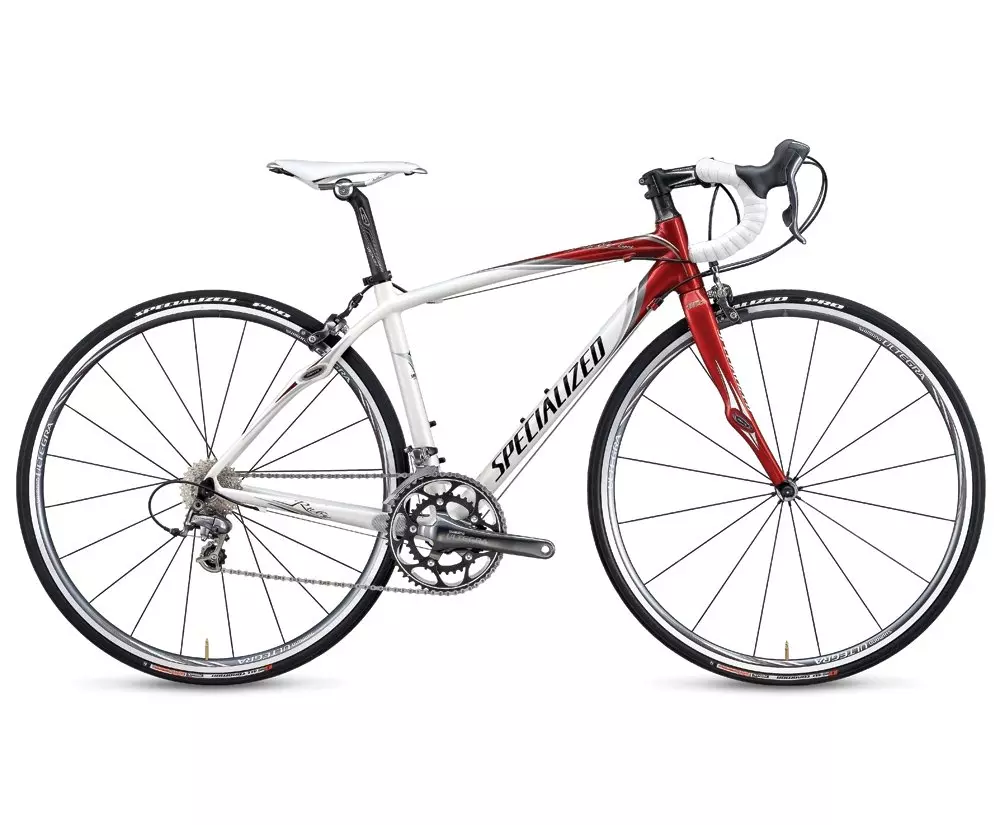

Women's Performance Road Ride like hell! The Ruby is purpose-built for women whoâŠ
FRAME
Specialized FACT 8r carbon, Az1 construction, Designs for Women compact design, Zertz Inserts
HEADSET
Specialized Campy style, 1-1/8"" integrated threadless, sealed stainless steel cartridge bearings, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
FORK
Specialized FACT carbon, monocoque construction, full carbon legs, crown and steerer w/ Zertz inserts
SEAT BINDER
Specialized CNC alloy, 32.6mm
FRONT TIRE
Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket
REAR TIRE
Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket
INNER TUBES
Specialized standard presta tube
RIMS
Shimano Ultegra SL
FRONT HUB
Shimano Ultegra SL, QR
REAR HUB
Shimano Ultegra SL, alloy cassette, QR
SPOKES
Stainless bladed
FRONT DERAILLEUR
Shimano Ultegra SL, 34.9mm clamp, bottom pull
REAR DERAILLEUR
Shimano Ultegra SL, short cage
SHIFT LEVERS
Shimano Ultegra SL, 10-speed STI, flight deck compatible
CASSETTE
Shimano Ultegra, 10-speed, 12-27t
CHAIN
Shimano Ultegra, 10-speed
CRANKSET
Shimano Ultegra SL
CHAINRINGS
50 x 34t
BOTTOM BRACKET
Shimano Ultegra SL, Hollowtech II
STEM
Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
HANDLEBARS
Specialized Womens, 2014 alloy, short-reach drop, ergonomic shaping, 31.8mm
TAPE
Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding
SADDLE
Body Geometry Ruby Women's, carbon reinfoced base, hollow Ti rails, microfiber cover
SEATPOST
Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
FRONT BRAKE
Shimano Ultegra SL
REAR BRAKE
Shimano Ultegra SL
BRAKE LEVERS
Shimano Ultegra SL, 10-speed STI, flight deck compatible
PEDALS
Silver cage, black body, w/ toe clip and strap
* ééã¯ãåçã®ããã«å¡è£ ããããã¬ãŒã ã®çç£ã«åºã¥ããŠããŸããå®éã®ééã¯ãã«ã©ãŒãŠã§ã€ããã¬ãŒã ãµã€ãºãã³ã³ããŒãã³ãã®ããªãšãŒã·ã§ã³ã«ããç°ãªããŸããä»æ§ã¯äºåãªãã«å€æŽãããããšããããŸãã
44 | 48 | 51 | 54 | 56 | |
---|---|---|---|---|---|
Ground-Top | 73mm | 73mm | 73mm | 73mm | 71.5mm |
Seat-Tube Angle | 66° | 62° | 59° | 59° | 59° |
Head-Tube Length | 165mm | 165mm | 170mm | 170mm | 172.5mm |
Head-Tube Angle | 574° | 579° | 582° | 588° | 595° |
Chain-Stay Length | 51mm | 51mm | 49mm | 49mm | 49mm |
Top-Tube Length, Horizontal | 76mm | 75.75mm | 75.5mm | 74mm | 73.5mm |
Front-Center | 105mm | 115mm | 125mm | 145mm | 165mm |
Handle-Bar Width | 300mm | 300mm | 350mm | 350mm | 350mm |
Stand-Over Height | 75mm | 75mm | 90mm | 100mm | 100mm |
Seat-Tube Length, B-B Center to Top | 405mm | 405mm | 405mm | 405mm | 408mm |
Fork Rake | 967mm | 973mm | 976mm | 982mm | 993mm |
B-B Drop | 70.5mm | 71.25mm | 72mm | 72mm | 72mm |
Stack | 400mm | 430mm | 450mm | 480mm | 500mm |
Reach | 496mm | 506mm | 518mm | 537mm | 548mm |
Trail | 693mm | 718mm | 735mm | 758mm | 778mm |
Wheelbase | 380mm | 380mm | 400mm | 400mm | 420mm |
