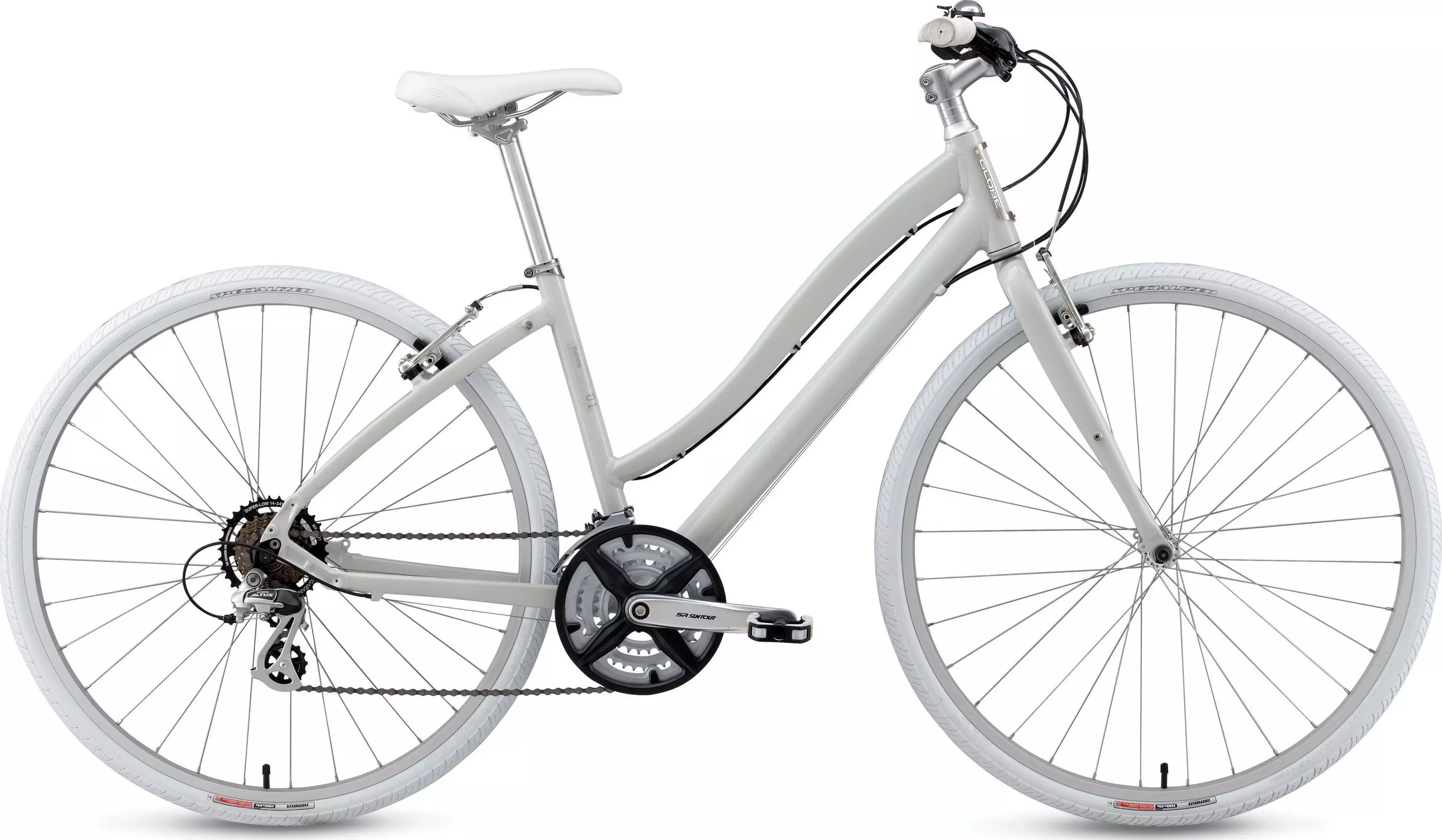

2010 Vienna 1 Step Through
0 Reviews
The VIENNA is designed for riders who need a simple and functional bike for their…
Product Details
The VIENNA is designed for riders who need a simple and functional bike for their day to day pursuits. This bike is your ticket to painless commuting or a quick fitness fix.
Steel fork is simple and durable
Women's Body Geometry Comfort grips alleviate hand pain and tingling fingers
Shimano Altus 7-speed rear derailleur provides reliable, crisp shifts every time
Women's Body Geometry Fitness saddle with front and rear bumpers for long-haul durability
City-tough and smooth-rolling Specialized Nimbus 700c tires with Flak Jacket puncture protection
Globe A1 Premium Aluminum frame features women's geometry and low standover for easy stop and go, plus fender/rack braze-ons and a kickstand mount for versatility
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum trekking design, step through geometry, fully manipulated custom tubing w/ fender and rack braze-ons, integrated kickstand mount
FORK
Globe Vienna straight-blade steel fork
HEADSET
1-1/8"" threadless, integrated, semi-cartridge campy style bearings
SEAT BINDER
Globe Chevron forged alloy, chrome plated
WHEELS
RIMS
700c, single wall, 32h
FRONT HUB
Forged alloy, double sealed, ground race, QR, 32h
REAR HUB
Forged alloy, double sealed, ground race, freewheel type, QR, 32h
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Nimbus, 700x35c, 60TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Nimbus, 700x35c, 60TPI, w/ Flak Jacket protection
INNER TUBES
Schraeder valve
DRIVETRAIN
SHIFT LEVERS
Shimano, ST-EF-50, 7-speed, EZ fire plus
FRONT DERAILLEUR
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Altus, 7-speed
CASSETTE
Shimano MF-TZ31-7, 7-speed, 13-34t Mega Range
CRANKSET
SR-Suntour 7-speed crankset, square, fully riveted plastic spider, w/ chainguard
CHAINRINGS
48 x 38 x 28t w/ chainguard
BOTTOM BRACKET
Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN
KMC Z7 w/ reuseable Missing Link
COCKPIT
HANDLEBARS
Alloy riser bar, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
STEM
Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp
TAPE
Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm
SADDLE
Specialized Body Geometry Fitness women's, front and rear bumpers, 155mm width
SEATPOST
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
Shimano (integrated w/ shifter)
ACCESSORIES
PEDALS
Globe City, Body Geometry, composite w/rubber top, 1.5mm varus wedge
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| W-SM | W-MD | W-LG | W-XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 74.5° | 74° | 73.5° | 73° |
| Head-Tube Length | 126mm | 146mm | 166mm | 186mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 69.5° | 69.5° | 70° | 70.5° |
| Chain-Stay Length | 455mm | 455mm | 455mm | 455mm |
| Top-Tube Length, Horizontal | 540mm | 555mm | 570mm | 585mm |
| Front-Center | 627mm | 638mm | 644mm | 649mm |
| Stand-Over Height | 584mm | 578mm | 571mm | 565mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 435mm | 485mm | 535mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 65mm | 65mm | 65mm | 65mm |
| Trail | 78mm | 78mm | 74mm | 71mm |
| Wheelbase | 1074mm | 1085mm | 1091mm | 1096mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
