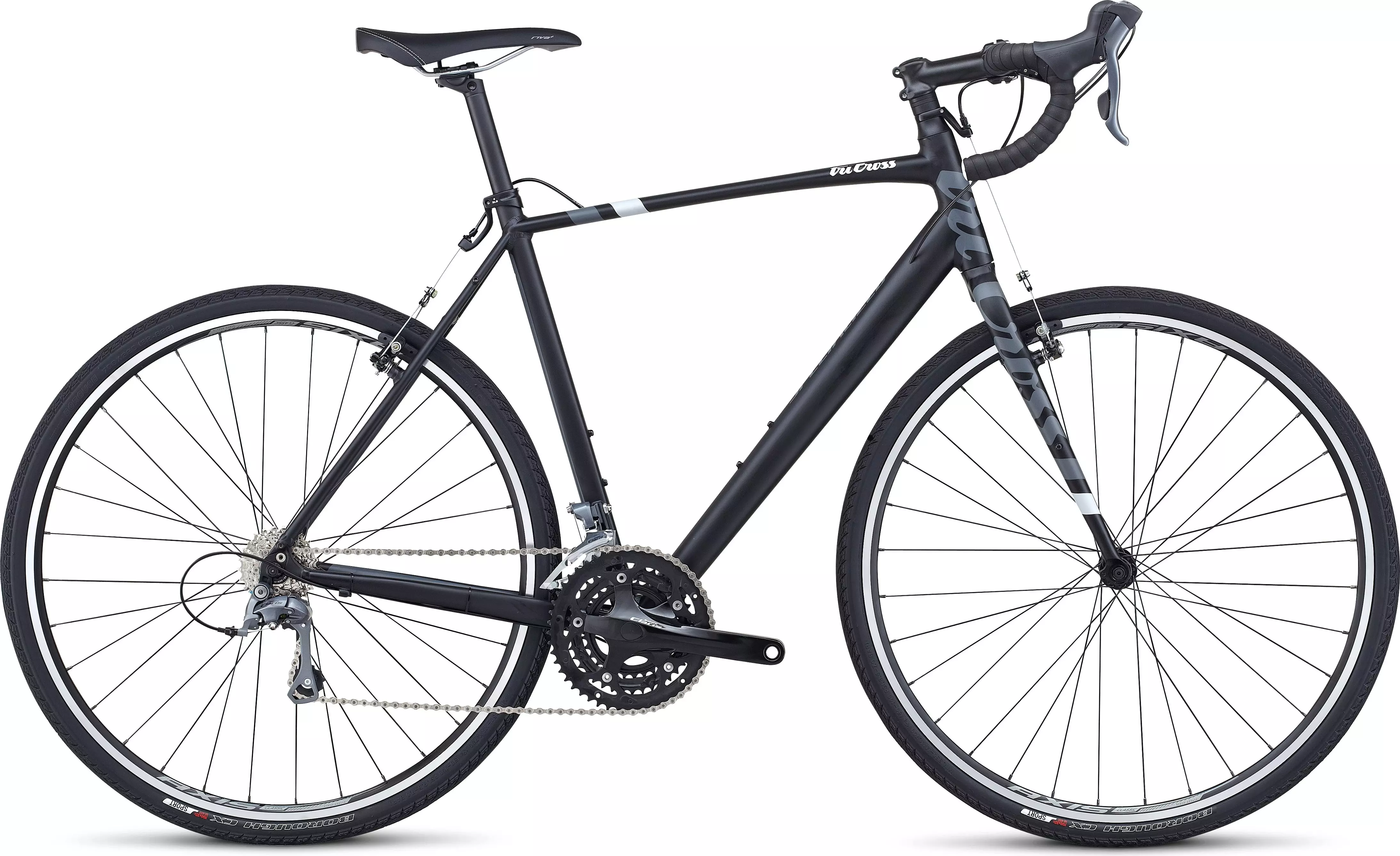

2014 Tricross

0 Reviews

Tricross is the perfect do-it-all bike for anything from trails to commuting to touring,…

Colour:

Black/Dark Grey/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Tricross is the perfect do-it-all bike for anything from trails to commuting to touring, with rack/mudguard mounts, wide-range gearing, and secondary brake levers.

New, lightweight, A1 Premium Aluminium, double-butted frame with Distance Commute Geometry features internal routing for brake and shift cables for low-maintenance performance in any conditions
Tektro secondary brake levers provide easy-access and reliable stopping power while riding with hands on top of the bars
New, lightweight, A1 Premium Aluminium, double-butted frame with Distance Commute Geometry features internal routing for brake and shift cables for low-maintenance performance in any conditions
New, lightweight, A1 Premium Aluminium, double-butted frame with Distance Commute Geometry features internal routing for brake and shift cables for low-maintenance performance in any conditions
Specialized Borough CX, 60TPI tyres feature a flat, fast centre section and side knobs to roll fast on paved or dirt roads

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium, fully butted, 1-1/8" lower bearing, w/ rack/fender fittings, internal cable routing

COCKPIT

HANDLEBARS

Specialized Comp, 6061 alloy, shallow bend

STEM

Alloy, 4-bolt clamp, 31.8mm

HEADSET

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers

TAPE

Specialized S-Wrap

SADDLE

Body Geometry Riva Plus, Cr-Mo rails, 155mm

SEATPOST

Specialized Sport, alloy, 2-bolt, 27.2mm

SEAT BINDER

Forged alloy, 31.8mm

SUSPENSION

FORK

Tricross, aluminium, alloy steerer/ crown for 1-1/8" bearing, w/ fender fittings

WHEELS

FRONT WHEEL

AXIS Classic

REAR WHEEL

AXIS Classic

FRONT TYRE

Specialized Borough CX Sport, 60TPI, wire bead, 700x32c

REAR TYRE

Specialized Borough CX Sport, 60TPI, wire bead, 700x32c

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano 2400 Claris STI

FRONT DERAILLEUR

Shimano Claris, triple

REAR DERAILLEUR

Shimano 2400 Claris

CASSETTE

Sunrace, 8-speed, 12-25

CRANKSET

Shimano 2400, triple

CHAINRINGS

50/39/30

BOTTOM BRACKET

Sealed cartridge bearings, square taper, 68mm shell

CHAIN

KMC Z51

BRAKES

FRONT BRAKE

Tektro, cantilever

REAR BRAKE

Tektro, cantilever

BRAKE LEVERS

Tektro secondary lever

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	46.0	49.0	52.0	54.0	56.0	58.0	61.0
Seat-Tube Angle	76°	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	115mm	130mm	140mm	155mm	170mm	185mm	210mm
Seat-Post Length	300mm	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	69.5°	70°	71.5°	71.5°	72°	72.5°	73°
Chain-Stay Length	440mm	440mm	440mm	440mm	440mm	440mm	440mm
Top-Tube Length, Horizontal	497mm	506mm	530mm	543mm	556mm	566mm	585mm
Front-Center	597mm	597mm	592mm	598mm	603mm	603mm	611mm
Handle-Bar Width	400mm	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	743mm	766mm	787mm	805mm	818mm	836mm	864mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	520mm	540mm	560mm	580mm	610mm
Fork Rake	51mm	51mm	51mm	49mm	49mm	47mm	47mm
B-B Drop	73mm	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Stack	548mm	564mm	579mm	593mm	609mm	624mm	650mm
Reach	360mm	360mm	364mm	368mm	373mm	375mm	380mm
Trail	75mm	72mm	62mm	64mm	61mm	60mm	57mm
Wheelbase	1026mm	1027mm	1021mm	1028mm	1033mm	1034mm	1041mm
Crank Length	165mm	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	80mm	80mm	90mm	100mm	100mm	110mm	110mm
