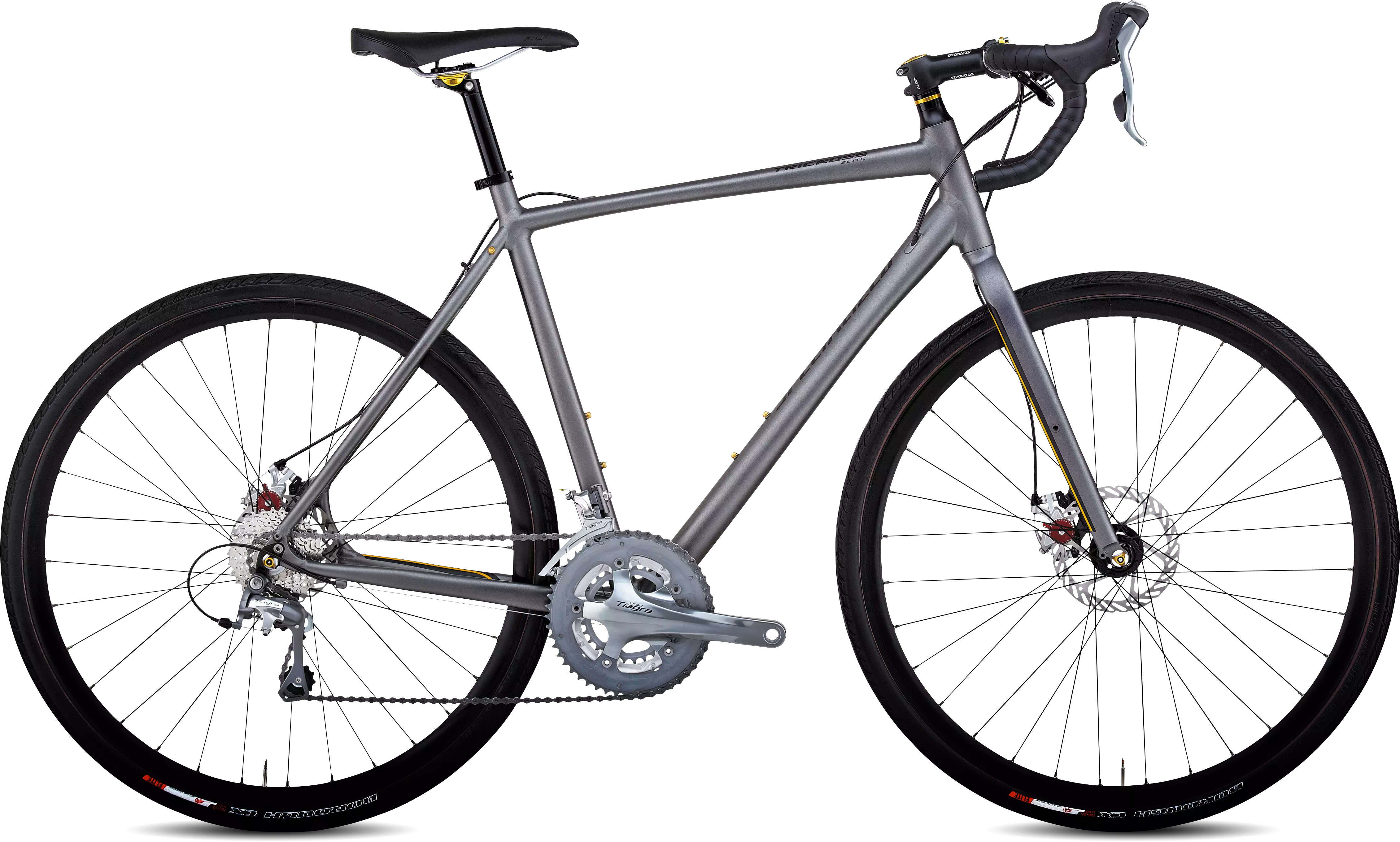

2012 Tricross Elite Disc
4
1 Reviews
Tricross Elite Disc is the perfect do-it-all bike for anything from trails to commuting…
Colour:
Charcoal Satin/Gold
What's my size?
Select a Size
Product Details
Tricross Elite Disc is the perfect do-it-all bike for anything from trails to commuting to touring, with rack/mudguard mounts and secondary brake levers. Disc brakes for all-weather control, plus reliable 10-speed Shimano Tiagra components.
New Tricross secondary brake levers provide convenient, safe braking without moving hands to the drops plus integrated bell mount
Lightweight A1 Premium Aluminium double butted frame with freeroad geometry is disc-compatible and features internal cable routing for low maintenance performance in any conditions
Lightweight alloy fork is ultra-durable and disc-ready, while the lowrider rack and mudguard mounts allow you to keep the water off and the load well-balanced
New H2 Ergo alloy bar offers serious performance and ergonomic positioning
Lightweight A1 Premium Aluminium double butted frame with freeroad geometry is disc-compatible and features internal cable routing for low maintenance performance in any conditions
Lightweight A1 Premium Aluminium double butted frame with freeroad geometry is disc-compatible and features internal cable routing for low maintenance performance in any conditions
Lightweight A1 Premium Aluminium double butted frame with freeroad geometry is disc-compatible and features internal cable routing for low maintenance performance in any conditions
New Tricross secondary brake levers provide convenient, safe braking without moving hands to the drops plus integrated bell mount
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminium, smooth weld, fully manipulated tubing, semi-compact design, integrated headset, internal cable routing, rack and mudguard fittings, disc only
SUSPENSION
FORK
Full alloy, low-rider rack/mudguard fittings, disc only
COCKPIT
HANDLEBARS
Specialized H2 Ergo Comp, alloy
STEM
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
HEADSET
1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
TAPE
Specialized TriCross wrap w/ 2.5 gel pads
SADDLE
Body Geometry Riva Plus TriCross, 155mm
SEATPOST
New Specialized Sport, alloy, 27.2mm
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
Alex Handsome Dragon 2.0, 32 hole
FRONT HUB
Forged alloy hub, 32h
REAR HUB
Forged aluminium, double sealed ball bearings, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TYRE
Specialized Borough CX Armadillo Elite, 120 TPI, aramid bead, 700x32c
REAR TYRE
Specialized Borough CX Armadillo Elite, 120 TPI, aramid bead, 700x32c
INNER TUBES
Lightweight, presta
DRIVETRAIN
SHIFT LEVERS
New Shimano Tiagra STI 10-speed
FRONT DERAILLEUR
New Shimano Tiagra 10-speed
REAR DERAILLEUR
New Shimano Tiagra 10-speed
CASSETTE
New Shimano Tiagra, 10-speed, 12-30t
CRANKSET
New Shimano Tiagra 10-speed triple
CHAINRINGS
50/39/30
BOTTOM BRACKET
With crankset
CHAIN
Shimano 105, 5600 for triple
BRAKES
FRONT BRAKE
Avid BB5 disc, 160mm
REAR BRAKE
Avid BB5 disc, 140mm
BRAKE LEVERS
New TriCross Comp secondary brake levers
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 46 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 105mm | 120mm | 130mm | 145mm | 160mm | 175mm | 200mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 69.5° | 70° | 71.5° | 71.5° | 72° | 72.5° | 73° |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Top-Tube Length, Horizontal | 505mm | 516mm | 537mm | 549mm | 560mm | 570mm | 587mm |
| Front-Center | 593mm | 597mm | 593mm | 601mm | 604mm | 607mm | 614mm |
| Handle-Bar Width | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm | 440mm |
| Stand-Over Height | 734mm | 761mm | 780mm | 797mm | 815mm | 833mm | 859mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 520mm | 540mm | 560mm | 580mm | 610mm |
| Fork Rake | 51mm | 49mm | 49mm | 49mm | 47mm | 47mm | 47mm |
| B-B Drop | 71mm | 70.5mm | 71mm | 69mm | 69mm | 67mm | 67mm |
| Stack | 536.5mm | 552.7mm | 586.5mm | 580.7mm | 597.5mm | 611.7mm | 637.6mm |
| Reach | 360mm | 365mm | 370.2mm | 374.1mm | 379mm | 382mm | 387mm |
| Trail | 75mm | 74mm | 64mm | 64mm | 63mm | 60mm | 57mm |
| Wheelbase | 1023mm | 1027mm | 1023mm | 1032mm | 1035mm | 1038mm | 1045mm |
| Crank Length | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
